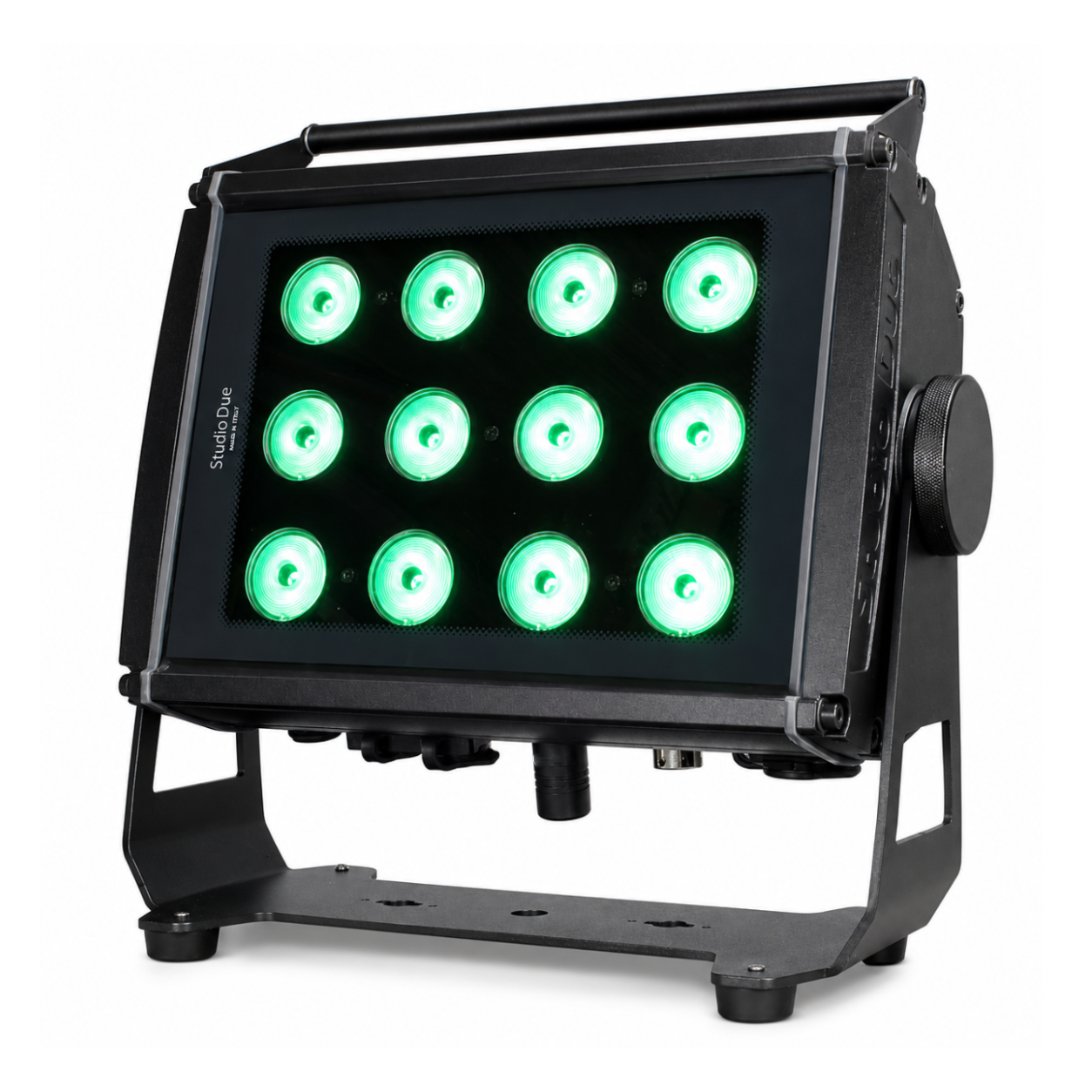

Brand: Studio Due
Model: EasyColor 12
Type: Architectural LED body without the need for cable
Description:
Rechargeable
Wireless
IP66
Full-color RGBW
Highly efficient battery
Source:
12x6W: 48 LEDs - 4680 lumens
Power:
Switching Power Supply
(Universal voltage)
Rated Voltage: 100-240V, 50-60Hz
Total nominal power: 80W (115W in power)
Rated current: 0.5A @ 230V - fuse T3.15A
Correction of the active power
51.2V 6 Ah battery
Time to charge the battery 6:00
Battery operate autonomously:
10:00 2-3 color works
14 hours of standby power saving
Size:
(WxDxH): 365x280x470 mm
Weight: 14.5 kg
Easy Color Line common characteristics:
Optics
35 mm standard lens beam 20 ° (± 10 °)
Tilt
Manual 220 °
Control
Standard interfaces: RS-485, opto-couplet return
Protocol: USITT DMX 512
COURSE IP 66
DMX channels
9 CH mode, 5 CH, 4 channel mode
Installation and Setup:
Control Panel Control Sensor Technology
LED display with flip function
Specialized channel DMX white balance
DMX or automatic function for master / slave
Built-in wireless receiver
Intelligent temperature control
Oscillation function
Halogen simulation
CYM emulation
Application: Outdoor lighting on buildings, monuments, architectural sites and others.
