Brand: PR Lighting
Model: XLED 1037
Type: Moving head

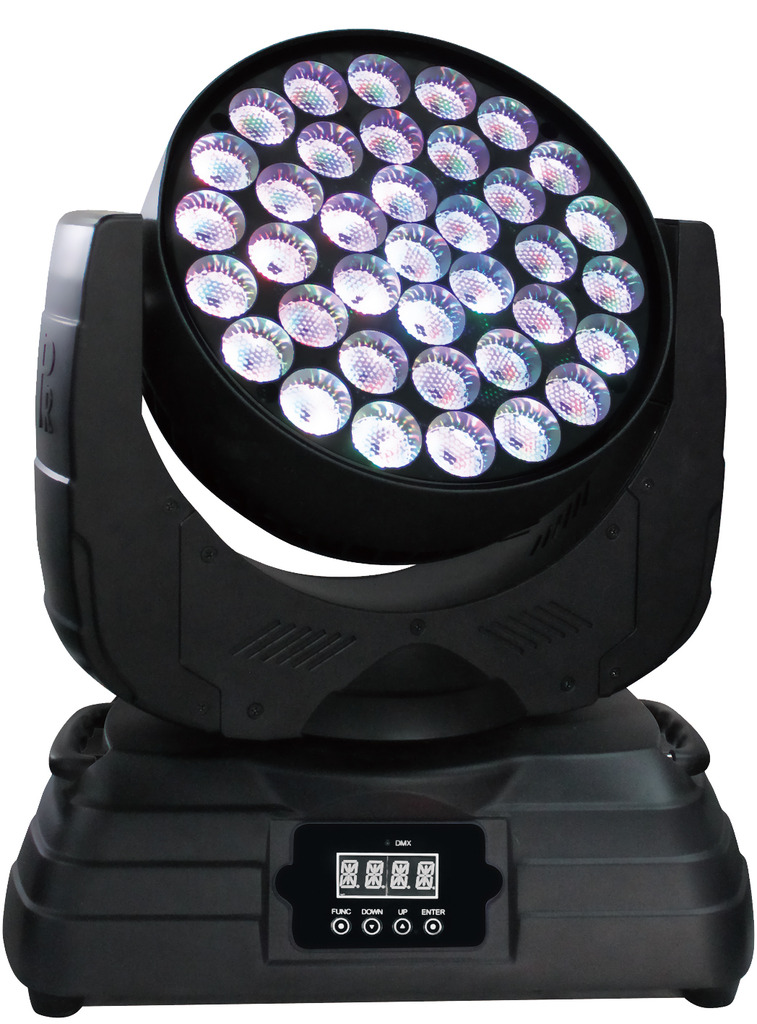

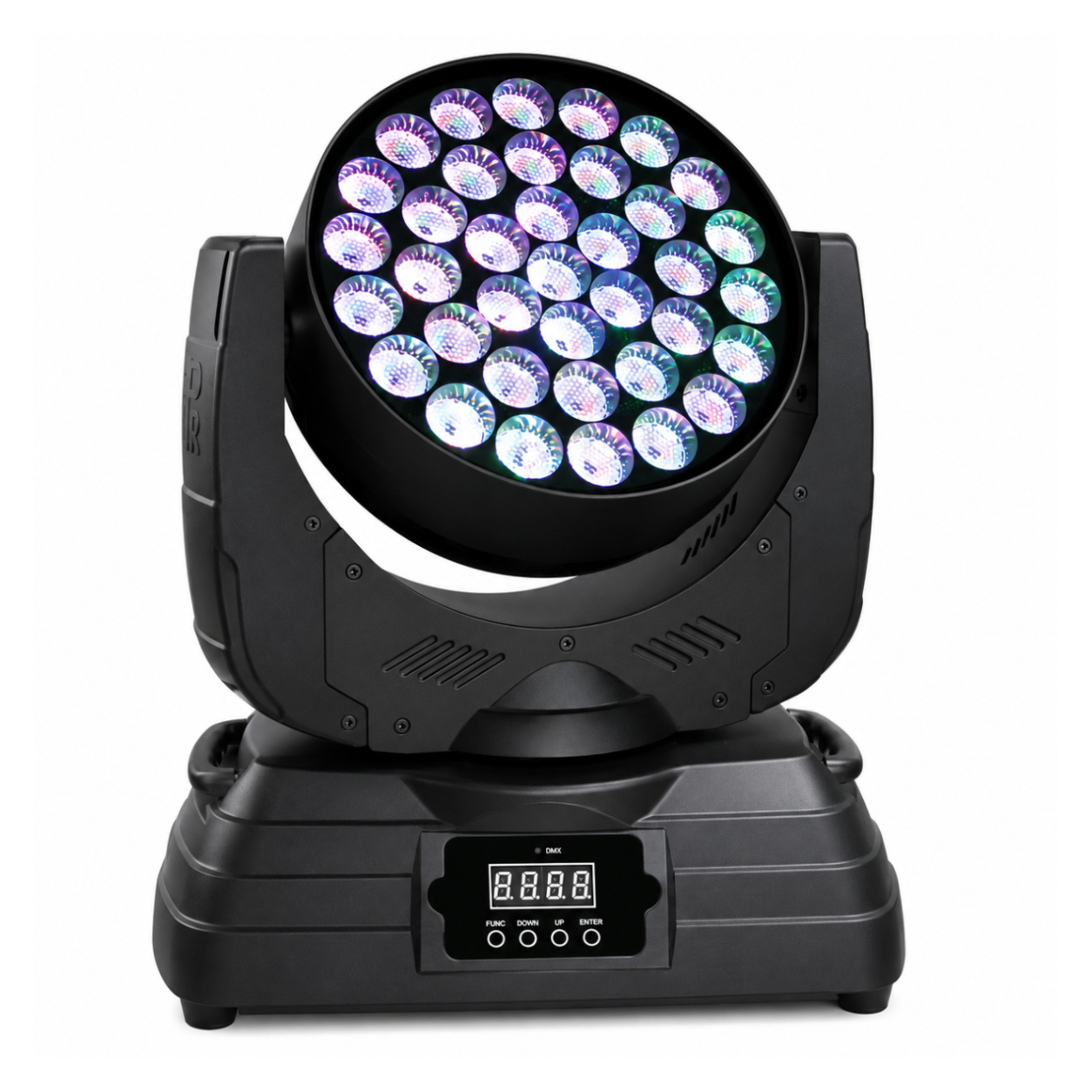

Description: Super bright XLED 1037 is a new product series "moving heads" of PR Lighting. It is characterized by the use of a 37 x 10 Watt RGBW LEDs (containing four colors in one), another important feature is its wide linear "zoom" with an angle of the beam in the range of 13 ° to 52 °. Additional features include - alinear CTO from 3200K to 10000K, linear mix of colors with macro function, 0-100% linearly adjustable electronic strobe (0 to 25fps). In terms of movement, XLED 1037 offers adjustable speeds (horizontal angle of 0 ° -540 ° and a vertical angle of 0 ° -270 °) with automatic correction function of the position. It also allows for automatic adjustment of the fan speed adjustment of brightness and contrast and can boast an advanced cooling system, nepregryavashta LED lamp and DMX 512 control display. There are various control options, as XLED 1037 is compatible with Wireless DMX.
Specifications:
Voltage: 100V ~ 240V AC, 50 / 60Hz
Power consumption: 450W @ 220V
Light source: 10W (37x10W RGBW LED (four in one)
LED life: 50,000 hours
Colors: RGBW linear mix of colors with macros
Adjustment of color temperature: Linear adjustment of color temperature of 3200k to 10000K
Dimmer: 0-100% linearly adjustable
Strobe: electronic strobe 0 ~ 25F.PS
Horizontal and vertical angle: Horizontal angle (0 ° ~ 540 °) and vertical angle (0 ° ~ 270) with automatic position adjustment
Light Angle: Field angle (one-tenth-peak) θ 27 ° ~ 70 °; Beam angle (half-peak) θ1 / 2 13 ° ~ 52 °.
Control: DMX512, three pins and 5 pins interface, 15 channels in standard mode and 24 channels in extended mode, Master / Salve synchronous control mode
Static scene mode, single mode, Self Test Mode
Other features:
Adjustable speed of horizontal and vertical rotation
Automatic adjustment of the fan speed
LED lamp protected from overheating
Adjustable brightness and contrast of the display
Lamp / Projector use the time display
DMX512 values of the channels of the display
Menu Invert
Housing:
High temperature resistant ABS + cast aluminum, IP20
Operating temperature:
-20 ° C ~ 40 ° C
Weight: 12.85 kg
Application: Disco, clubs, rent installations, theatrical scenes, concerts.
