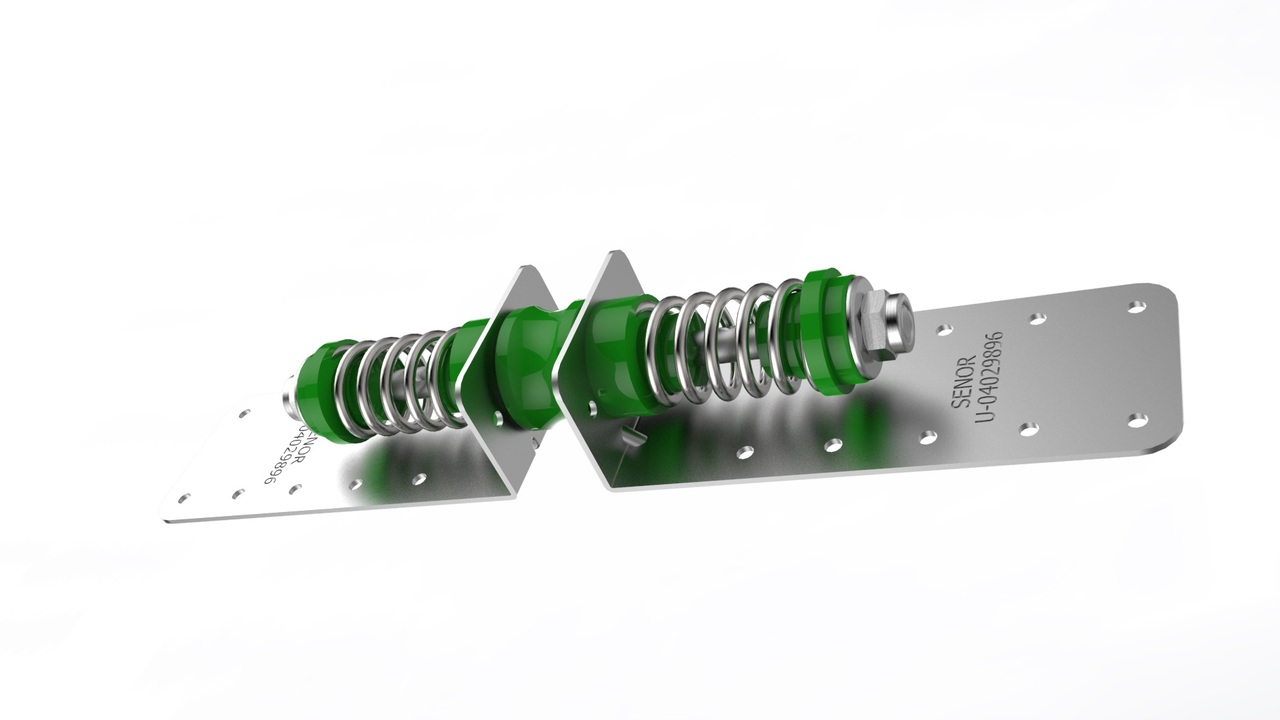

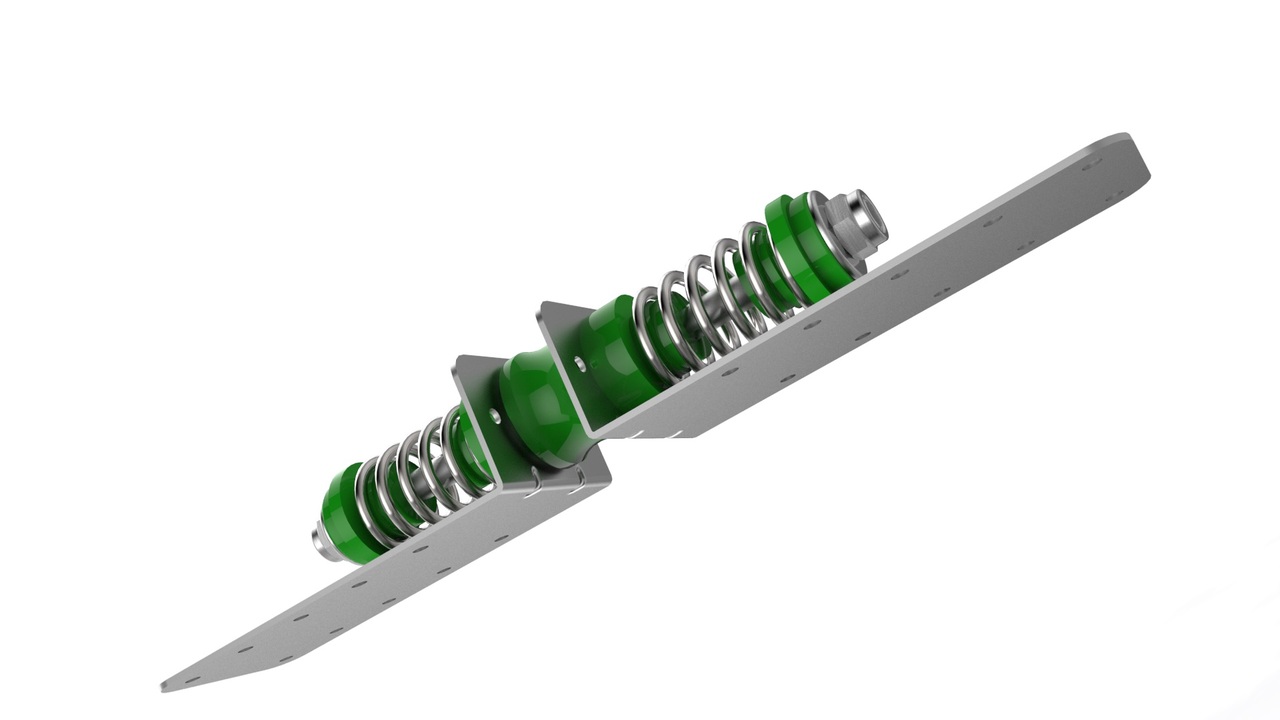

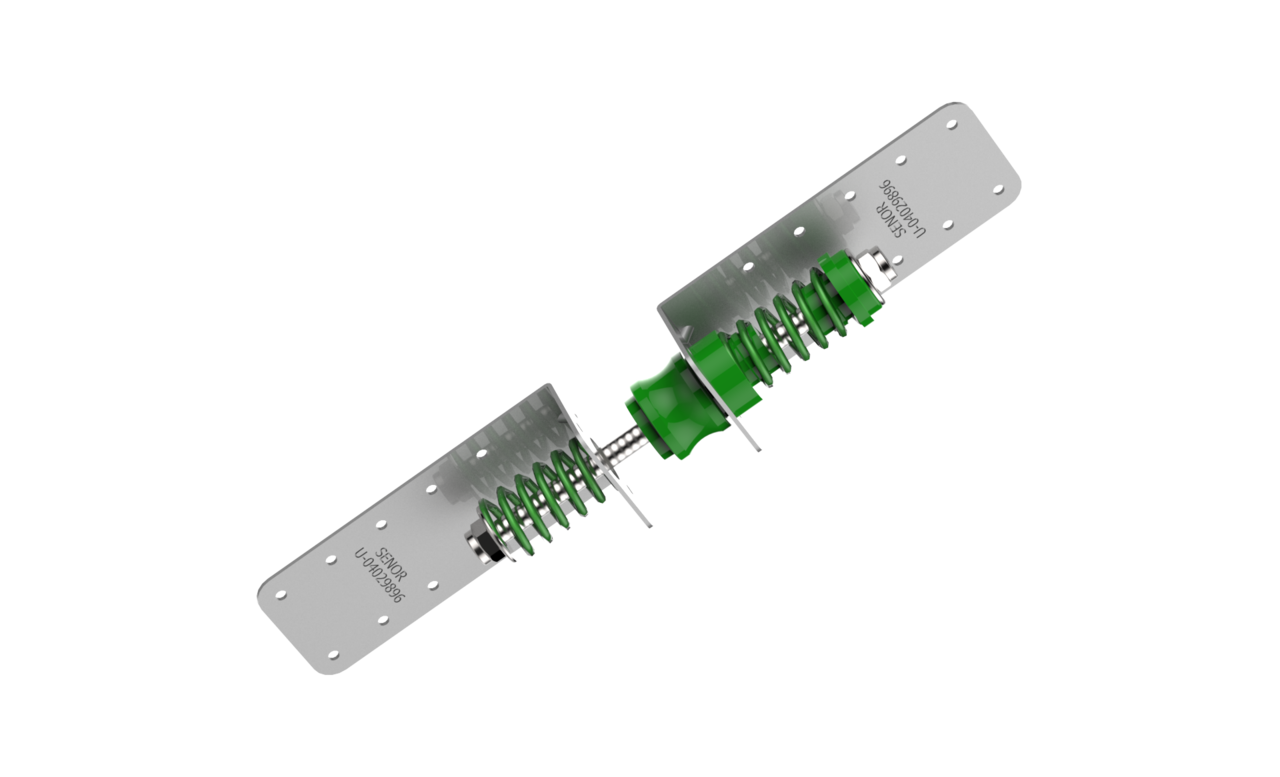

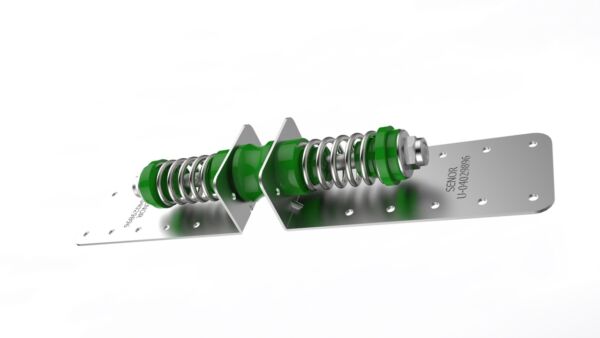

Brand: "Senor"
Model: 9600/02
Type: Wall hanger vibro
Description:

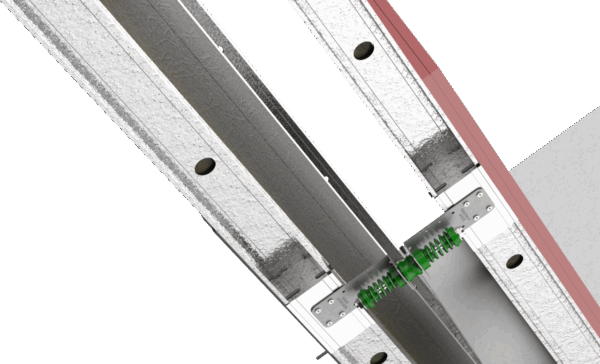

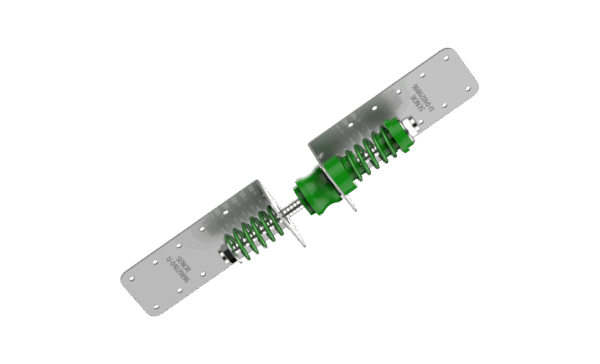

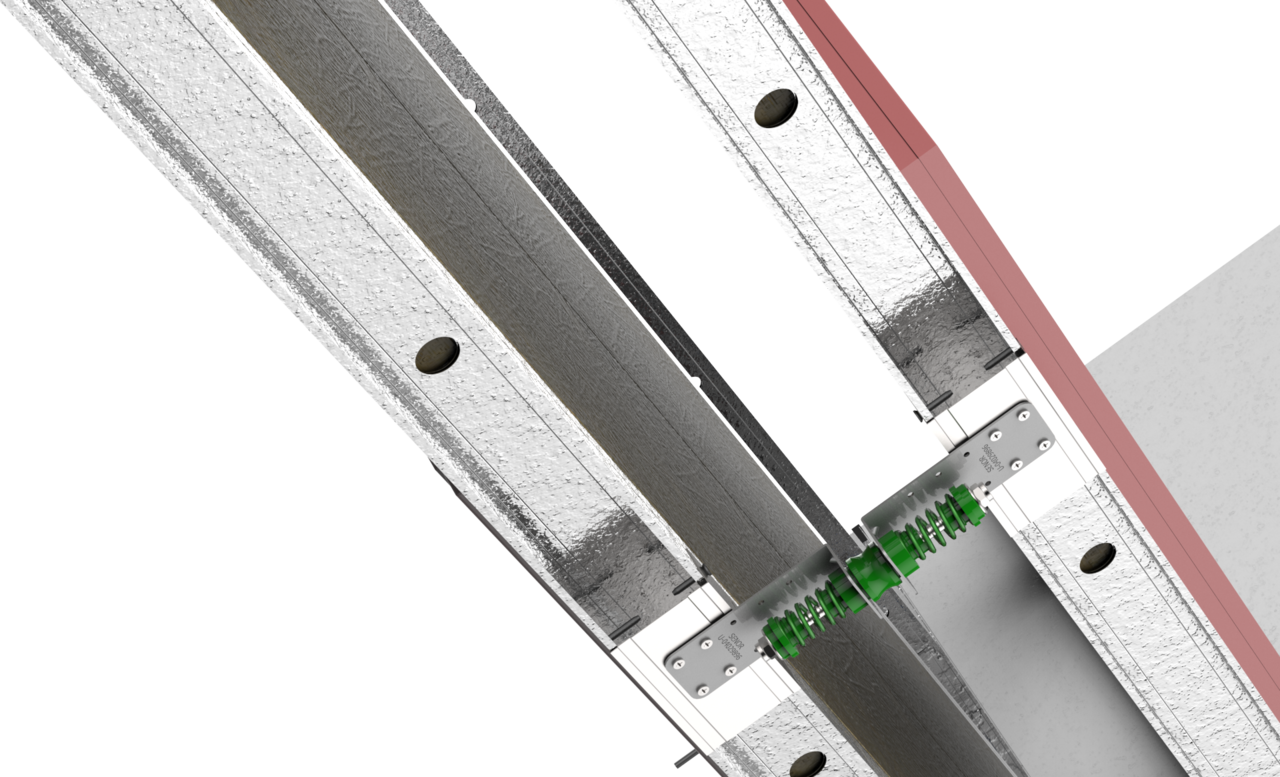

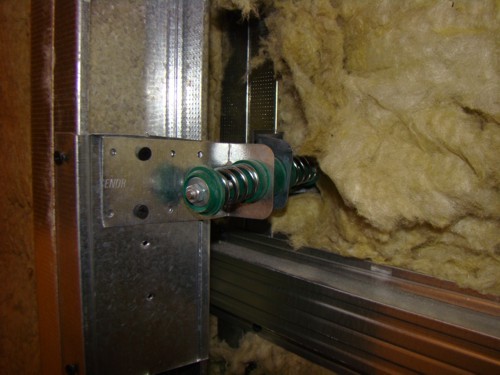

Flexible mounting vibration hangers are very important in the installation of acoustic systems especially when the need to prevent transmission Structure and hardness of the walls in order to achieve better performance and quality shumoponizhavashtata system. Models 9600/9602 are highly recommended to absorb vibrations created by air noise at low frequencies na range of 28-30Hz and levels of generated sound pressure
100-105DBA. Combining soft EPDM rubber with steel springs reduces vibrations in both directions. It is made of non-combustible materials.
Specifications:
Optimal load: 10-70kg
Thickness of metal sheet: 1.5 mm or 0.8 mm (depending on natvarvaneto sound insulation system)
Density: 7833.00 kg / m ^ 3
Thermal expansion coefficient: 0.000013 / C
Thermal conductivity: 0,032 kW / m-C
Specific heat: 481,000 J / kg-C
Modulus of elasticity: 199947,953 MPa
Poisson Coefficient: 0.290
Elastic limit: 262,001 MPa
Crushing strength: 358,527 MPa
Coefficient of elongation (%): 0,000
Weight: 0325 g

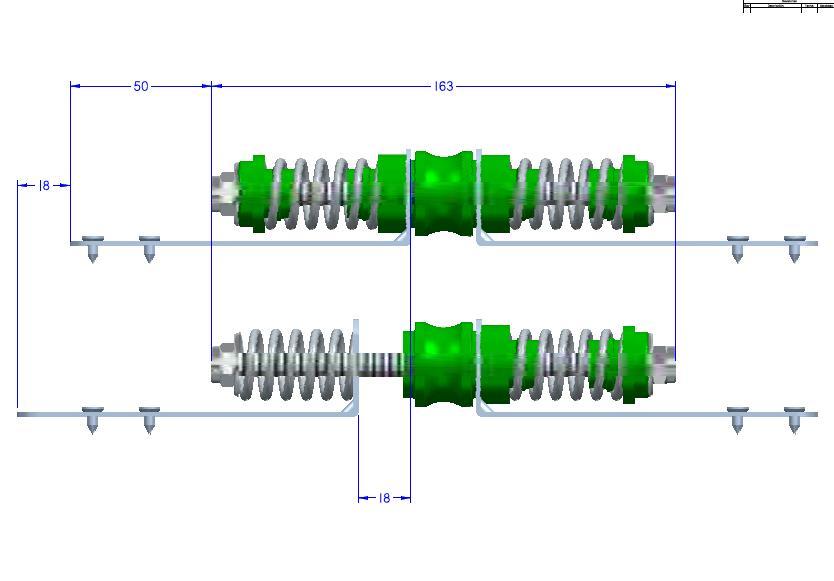

Sizes: L 163mm, W 50mm
Packing: 50 pcs.

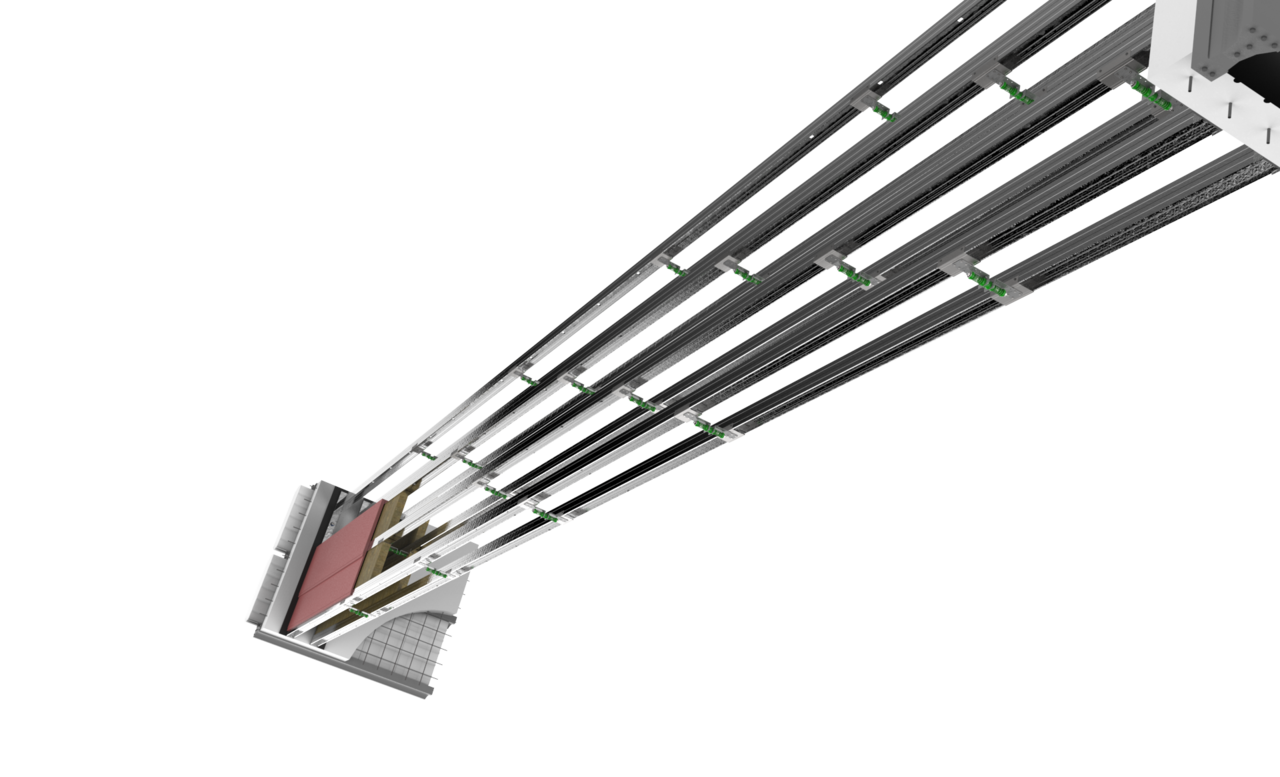

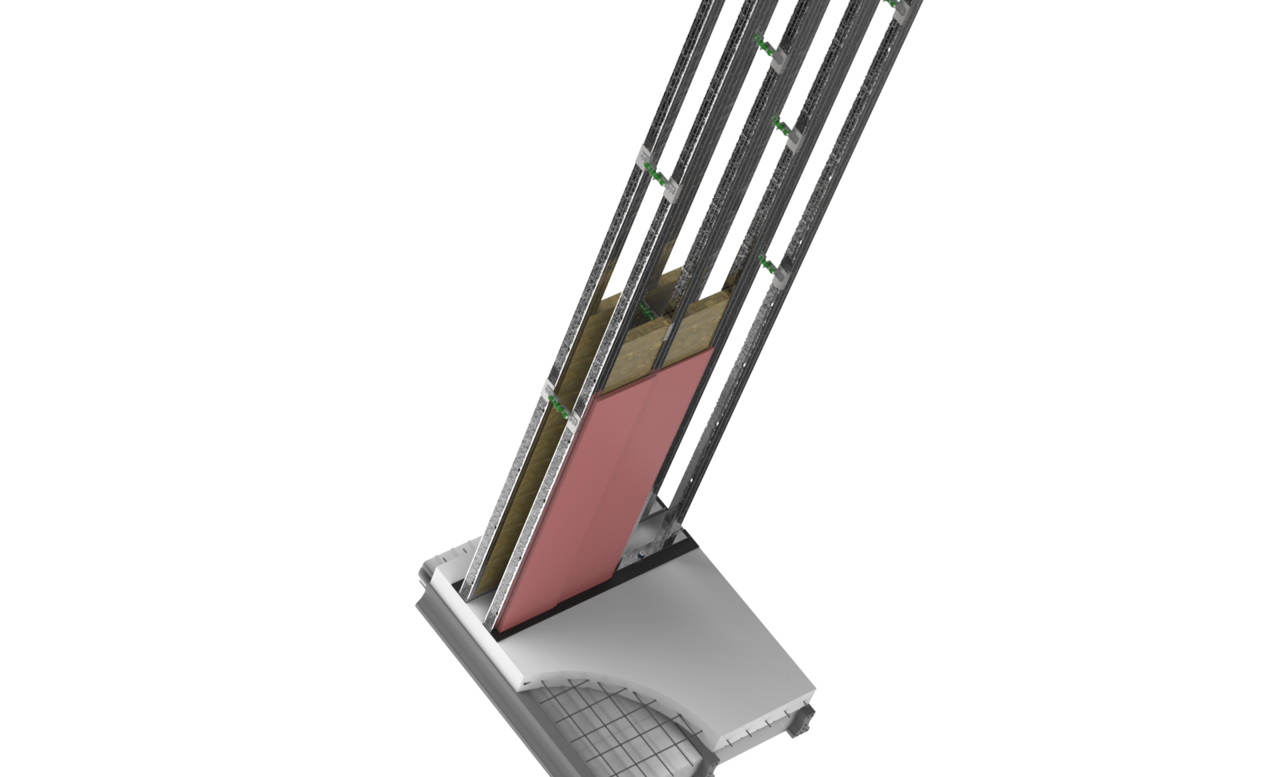

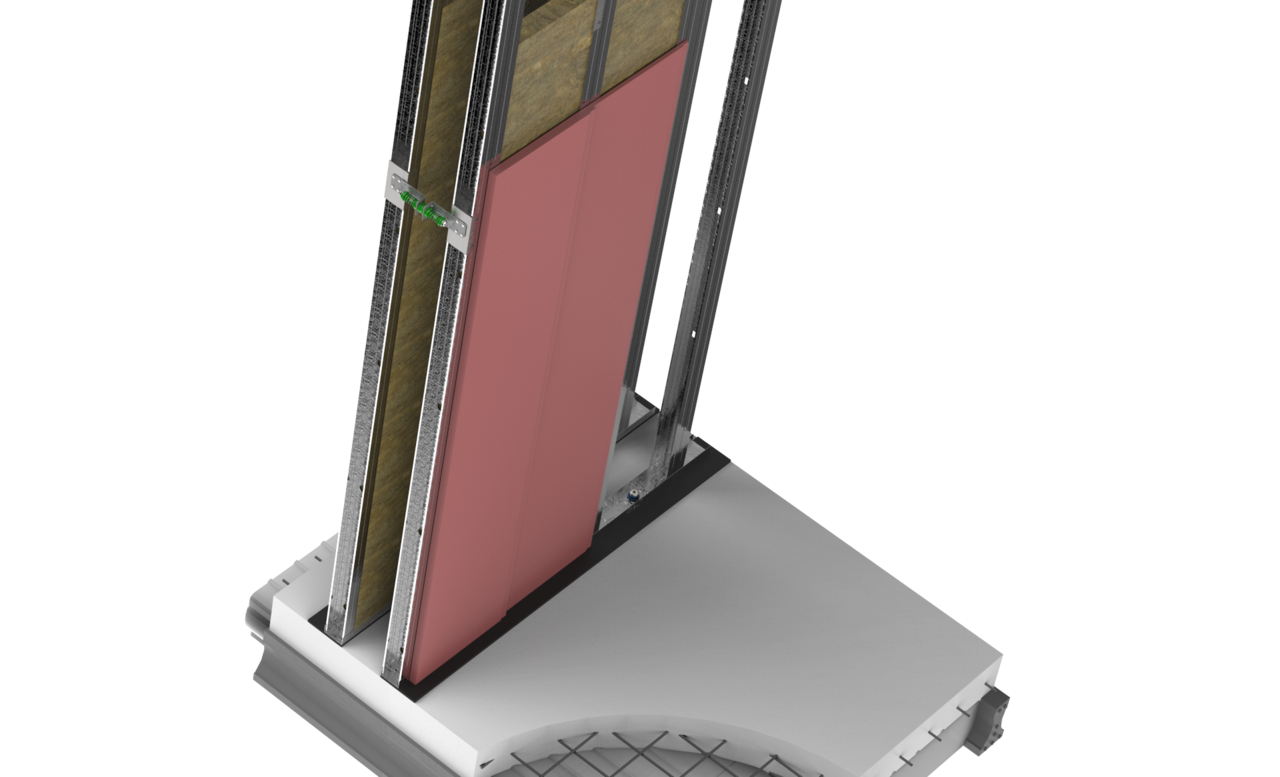

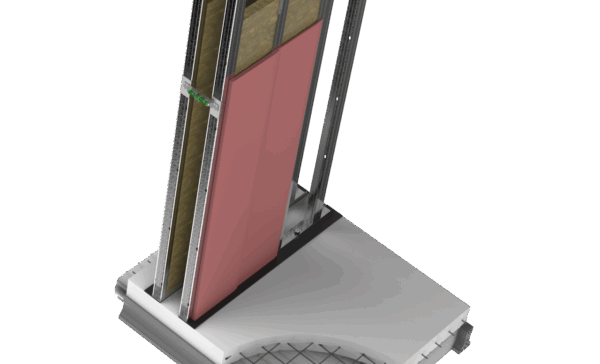

Application: Housing, office buildings, utility rooms, concert halls, theaters, cinemas, recording studios, clubs and entertainment centers.
