Brand:Senor

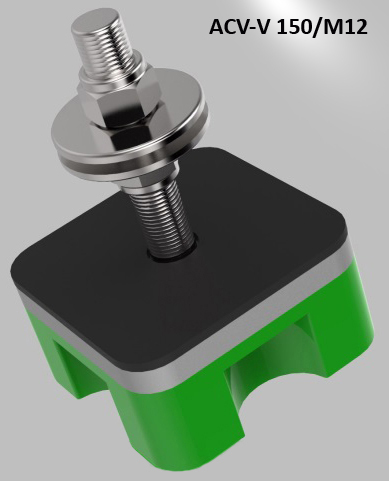

Model: ACV-V150M12
Type: Vibration Damper

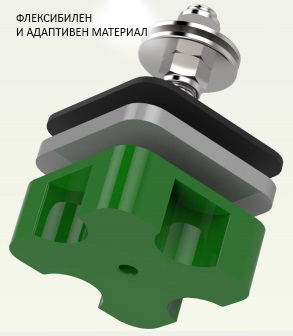

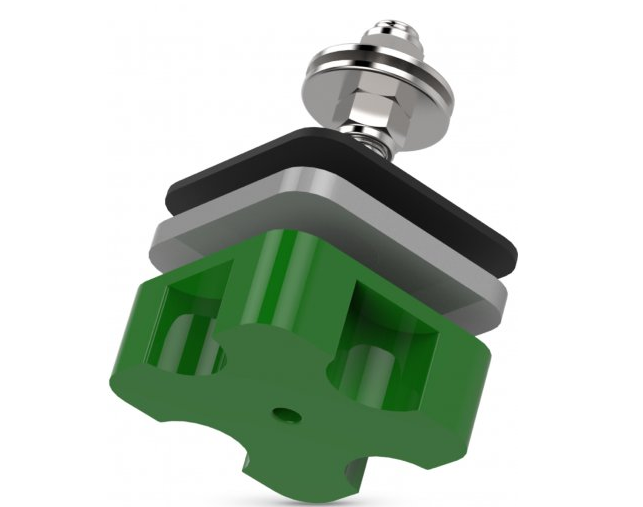

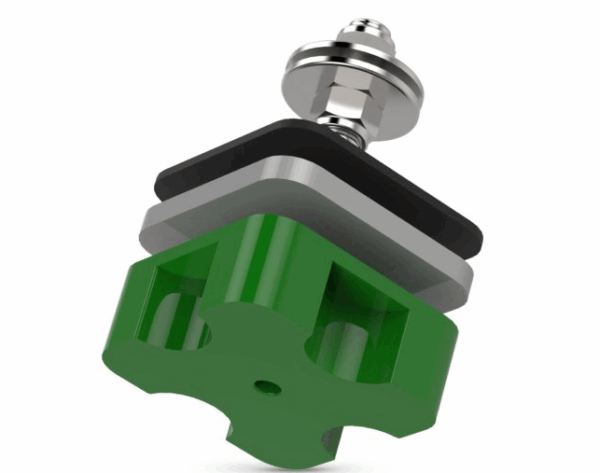

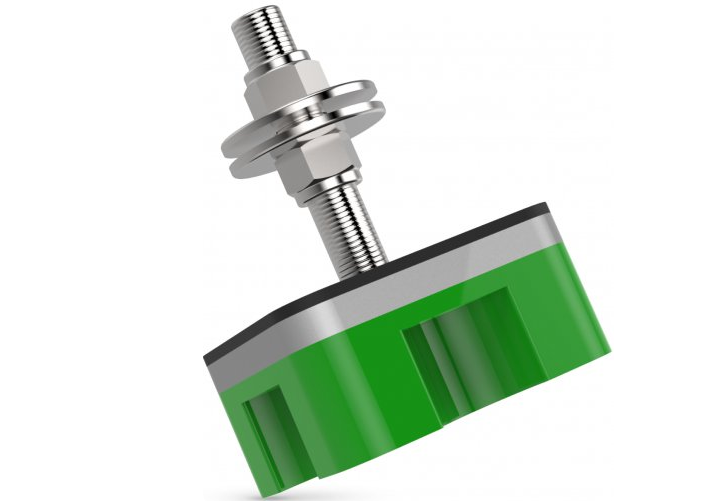

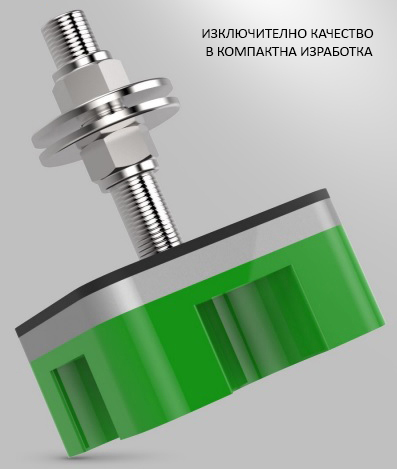

Description: Exceptional quality in compact construction. Nowadays the installation of industrial machines in cities exacerbates the problem of noise above the acceptable sound threshold. The structural noise or vibrations produced by this type of equipment - air conditioners, compressors, motors, heat pumps, etc. whether general or individual, they cause vibrations, shock and noise, which are transmitted to the structures of buildings and affect the quality of life in them. Silencing insulation damper ACV + MEGOL is the latest generation AV damper with an exclusive design for vibration isolation of machines. SENOR's exclusive product. This system is designed to eradicate and reduce the transmission of vibrations caused by knocking, knocking, shaking, similar sounds or vibro energy - mechanical sounds from a technique that causes harmful or irritating noise levels above the permissible sound threshold. (20Hz) Test on dynamic response index and strain curve. The test can be traced from the attached photos. Determination of the natural frequency (Hz) and deformation values for different damper loads. Calculations are made for each load level between 0-100Hz for a given acceleration level (0.2g). Placing an accelerator on a solid part of the structure that serves as a control and another at the point of action of the damper makes it possible to determine the result of the quality of operation of the damper.

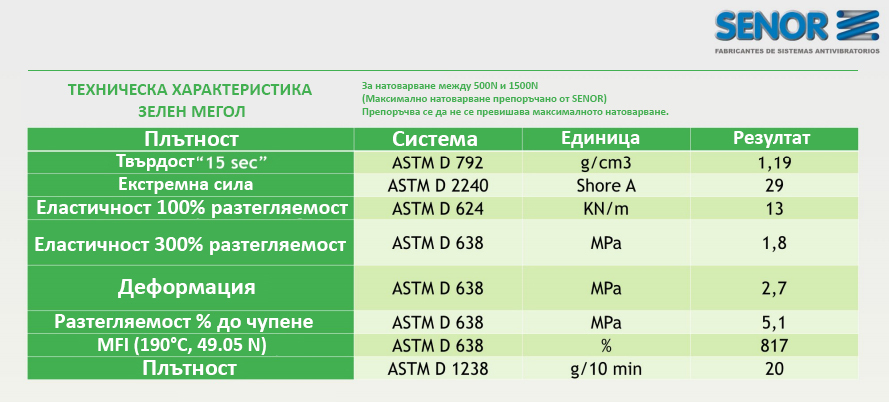

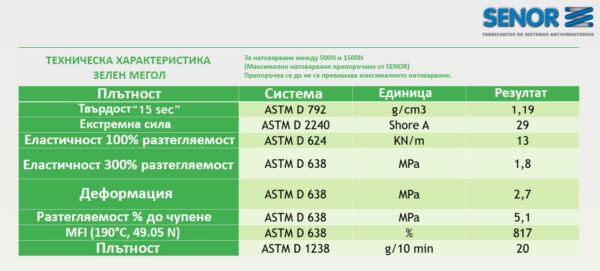

Technical characteristics: (See additional characteristics, tests and design solutions in the tables)
1. Density: 2712 kg / m2
2. Expansion: 0.000023 / C
3. Thermal conductivity: 0.221 kW / mC
4. Specific heat: 920,000J / kg-C
5. Modulus of elasticity: 68947,570MPa
6. Poisson's velocity: 0.330
7. Elastic limit: 27,579MPa
8. Destruction: 68,948MPa
9.Stretch: 0.000
Test technique used:Accelerometers signal amplifiers.
PCB / Code ME 084030
Accelerometer PCB / Code ME 072021
NOGREN / Code ME 035002 testing machine
Vibrating table LDS / Code ME 075001
Application: air conditioners, compressors, motors, heat pumps
