Brand: KV2 Audio
Model: CS6
Type: High Quality 2-way Passive Speaker
Description:

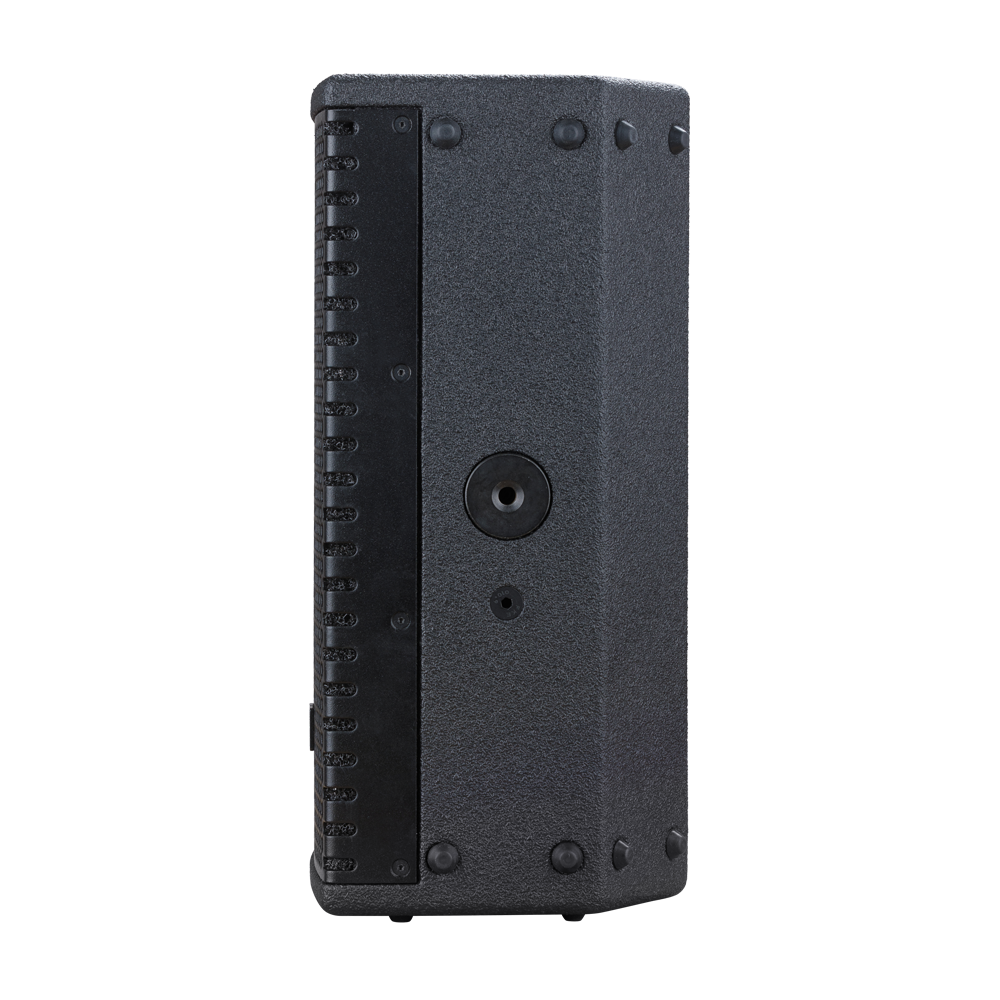

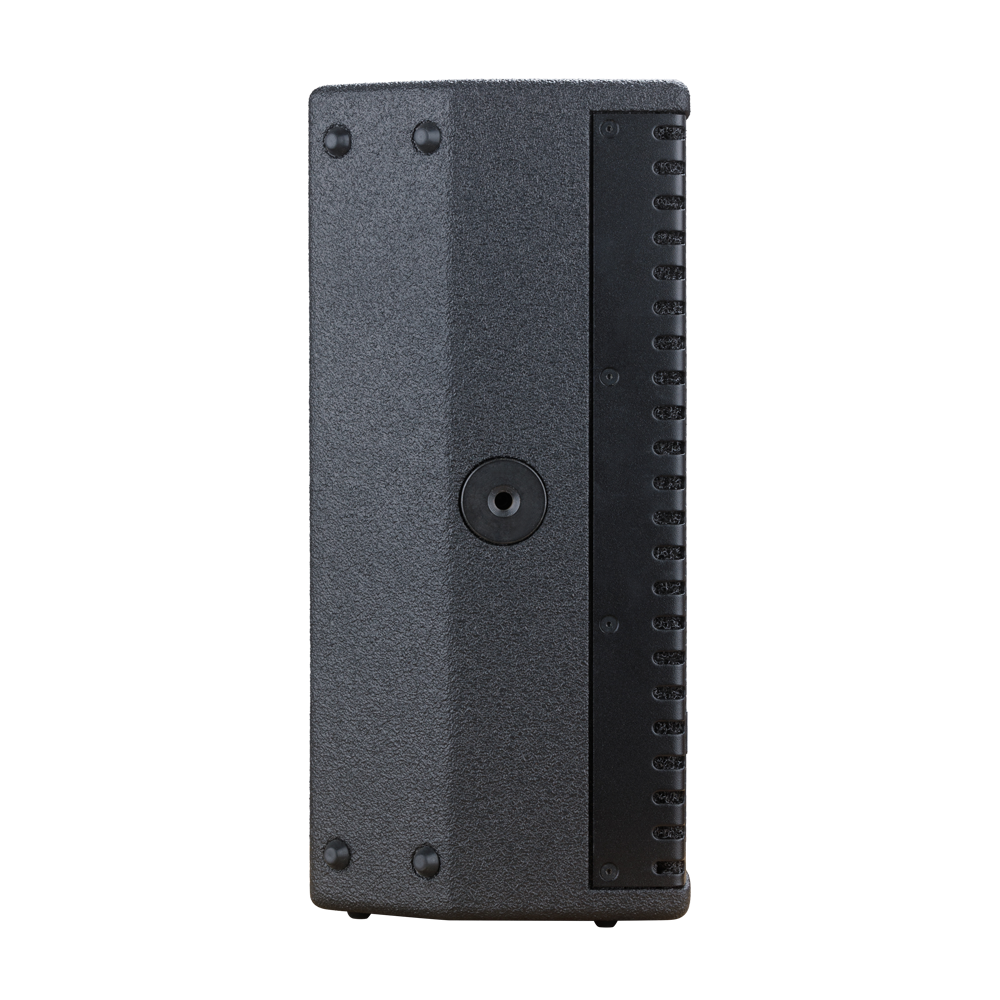

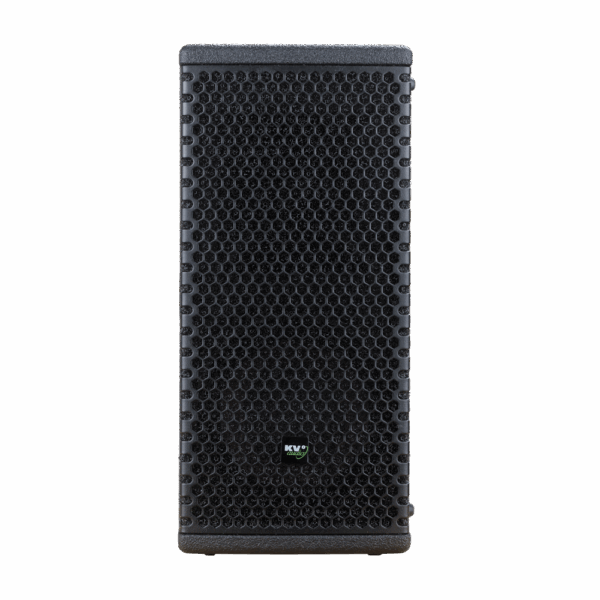

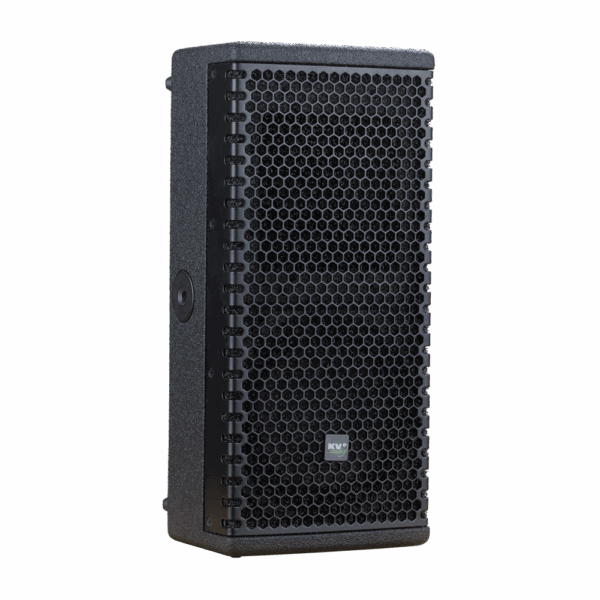

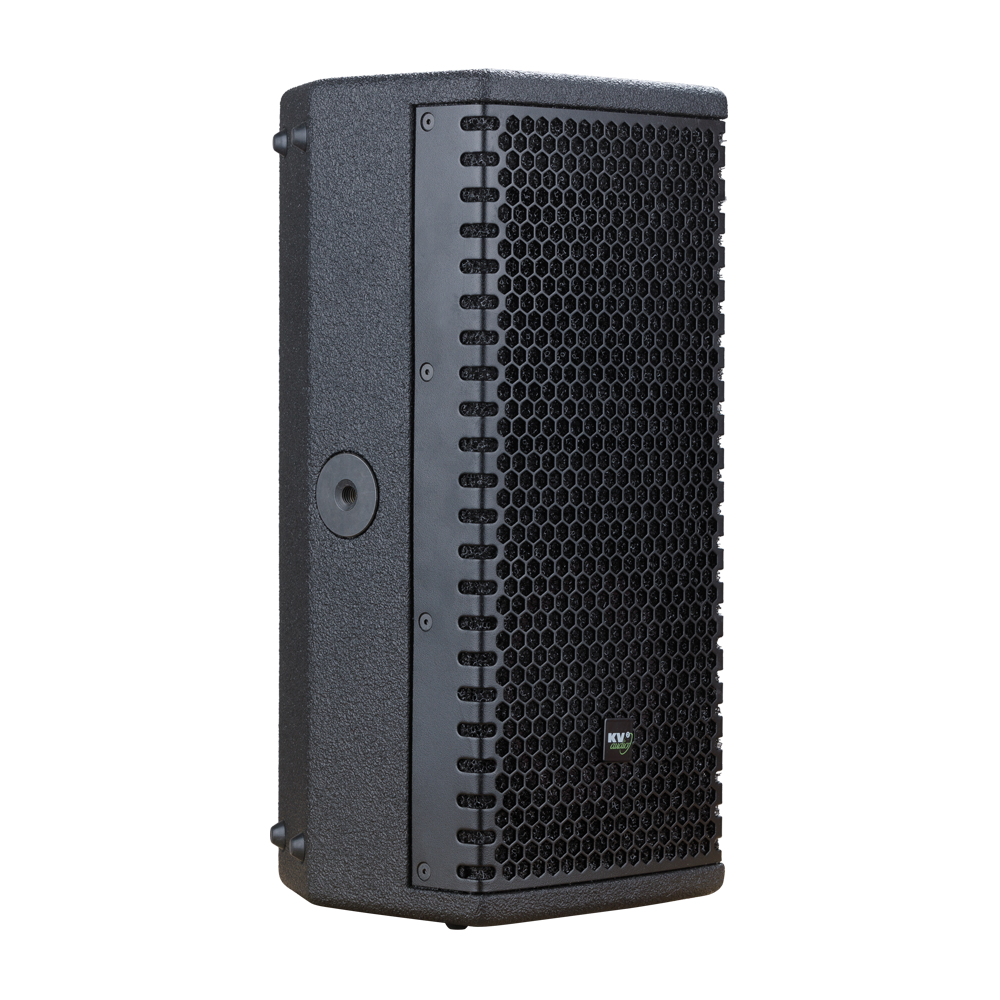

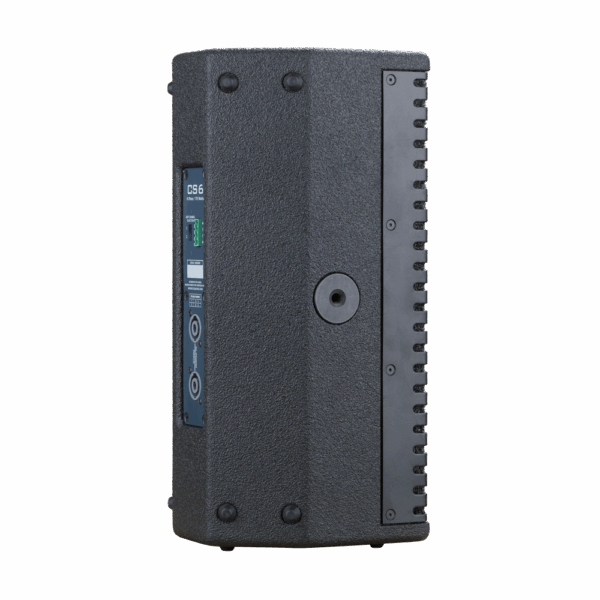

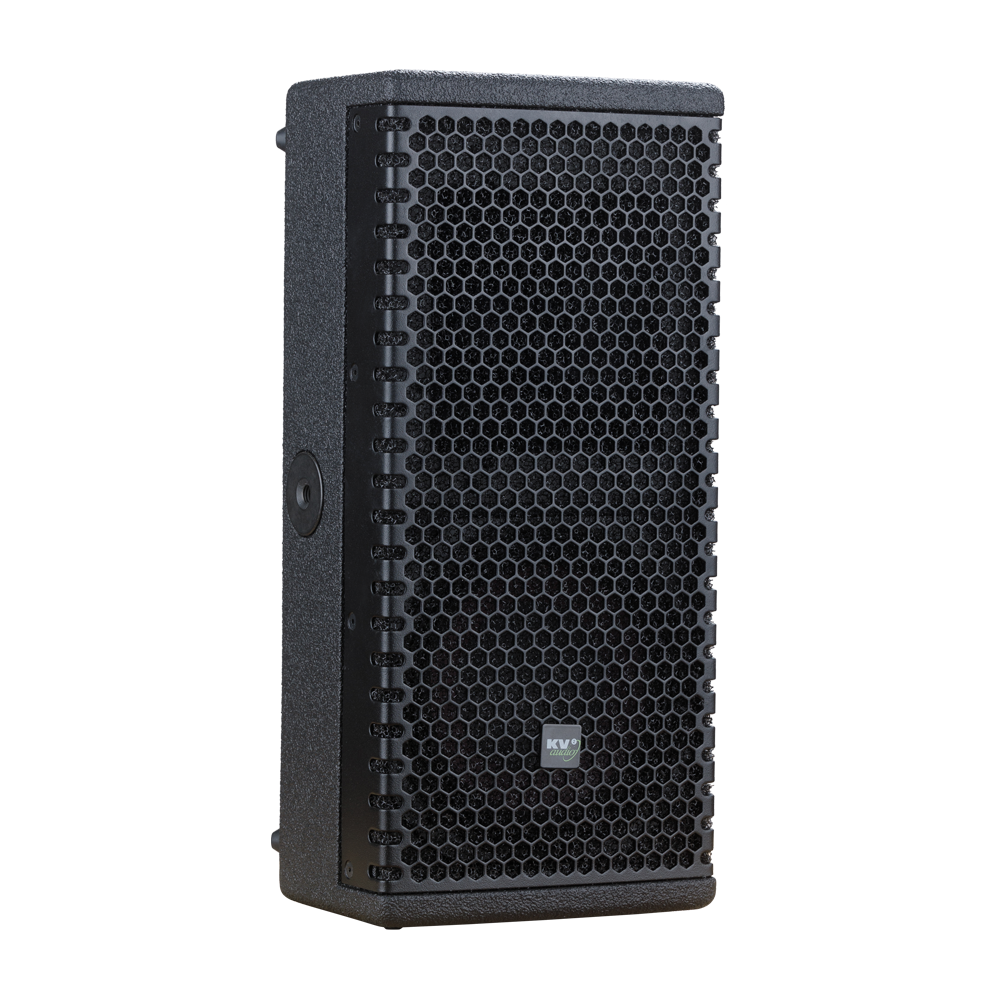

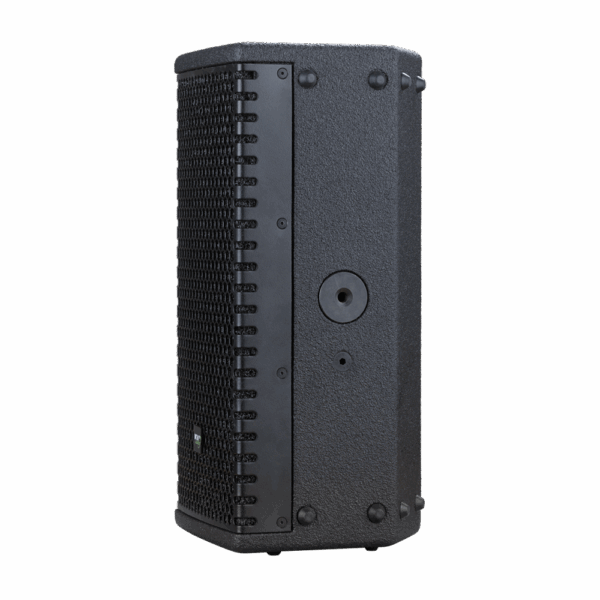

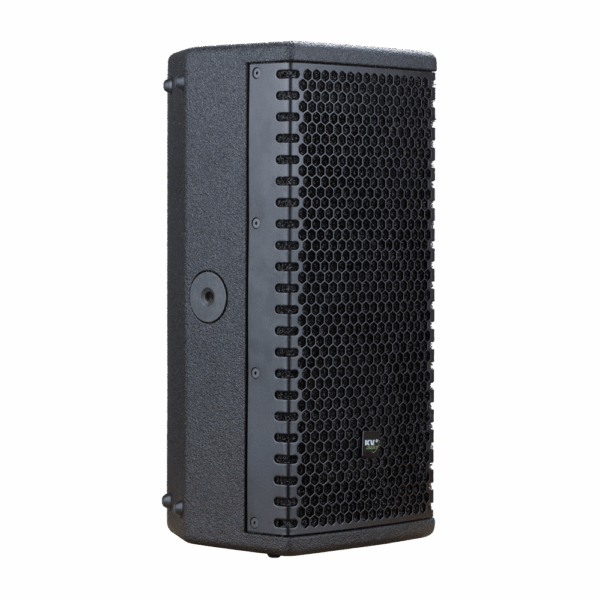

The CS6 is a very high quality 2 way passive speaker, presented conservatively in a low profile unique angled painted baltic birch enclosure.
Designed to present exceptional speech clarity, the CS6 can be applied quickly and flexibly on podiums, stands and suspended as well as in fixed installations using the comprehensive range of ancillary attachments and brackets.
Technical characteristics:
Features:
- Professional Baltic birch construction with unique angles for flexible use
- Extremely hard-wearing textured plastic paint
- Compact enclosure allows discreet placement and application
- Wide dispersion 90 H x 90 V Horn
- KV2 Audio SLA technology passive crossover inc. thermal breaker protection
- 1”/ 1.3”Titanium diaphragm compression driver
- 6” Neodymium low mid woofer
- Fixing points for comprehensive attachments
System Acoustic Performance:
Max SPL Long-term: 118dB
Max SPL Peak: 124dB
-3dB Response: 145Hz to 20kHz (voice bandwith)
-10dB Response: 90Hz to 28kHz (voice bandwith)
Recommended Power: 175W
Sensitivity: 93dB
Impedance: 8 Ω
Crossover Point: 4,2kHz
High Frequency Section:
Acoustic Design: Horn loaded
High Horn Coverage Horizontal /Vertical: 90° x 90°
Rotatable Horn: symetric
Throat Exit Diameter / Diaphragm Size: 1“/1,3“
Diaphragm Material: Titanium
Magnet Type: Ferrite
Protection: Thermal breaker - auto reset
Low Frequency Section:
Acoustic Design: Closed box
Number of Drivers: 1
Woofer Size / Voice Coil Diameter: 6“ / 1.75“
Magnet Type: Neodymium
Diaphragm Material: Epoxy reinforced cellulose
Protection: Thermal breaker - autoreset

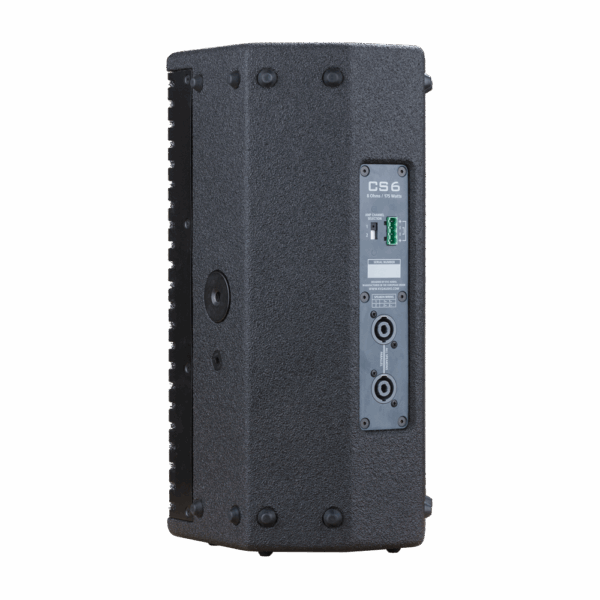

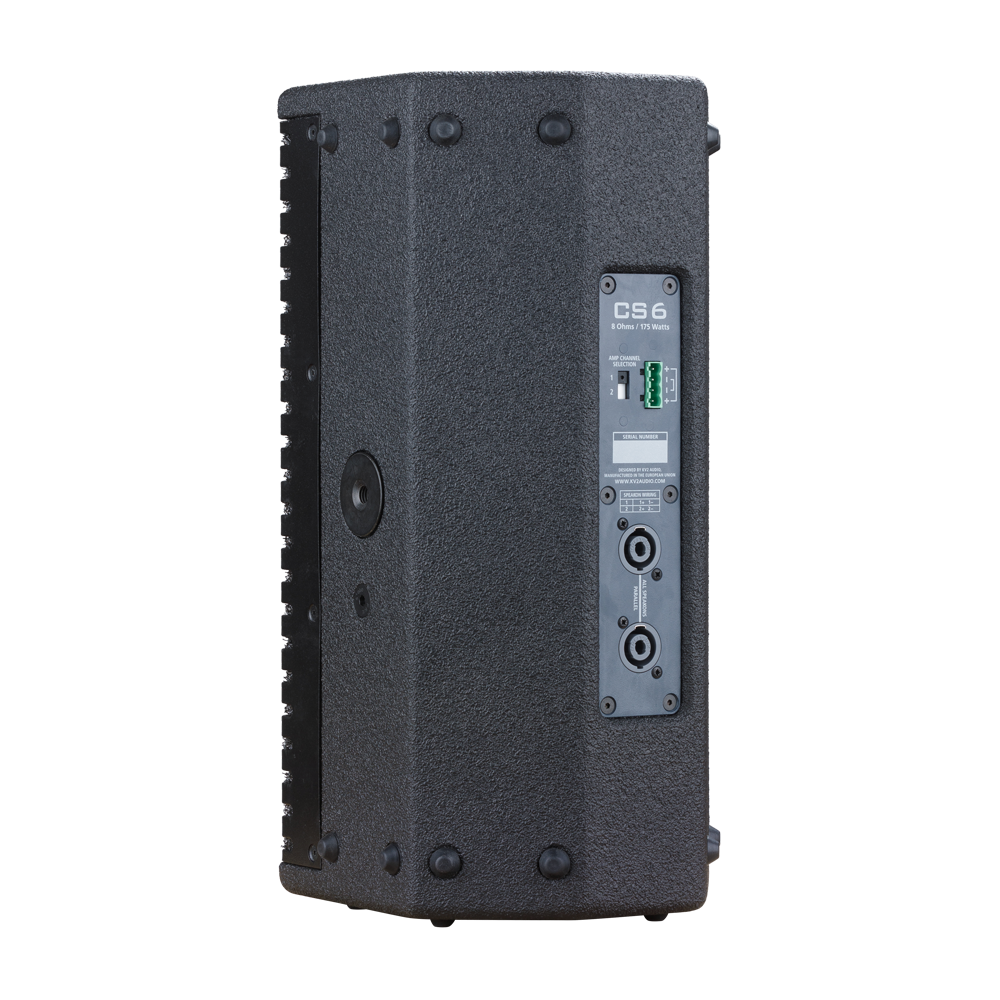

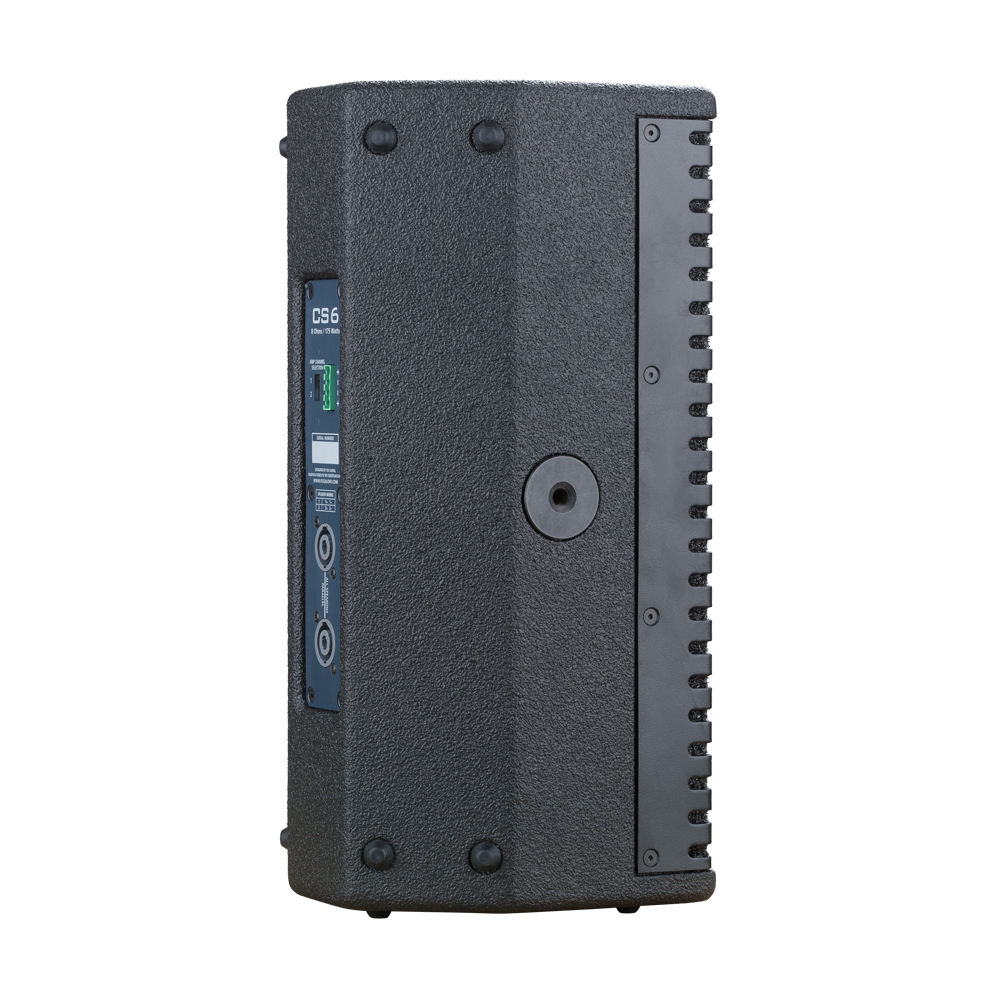

Speaker Input:

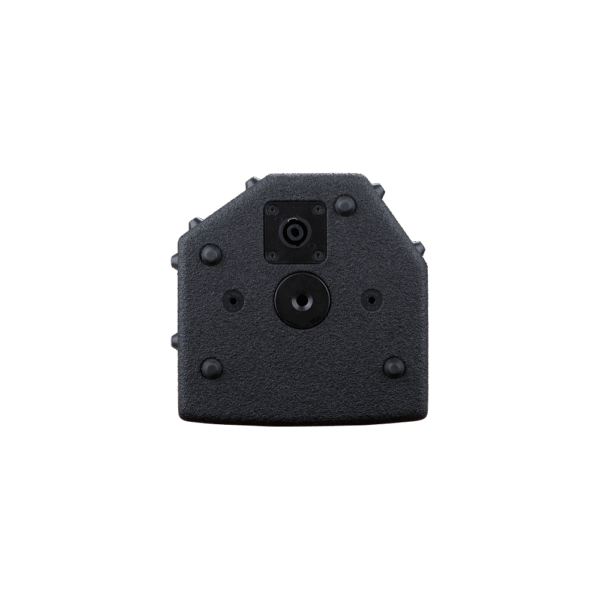

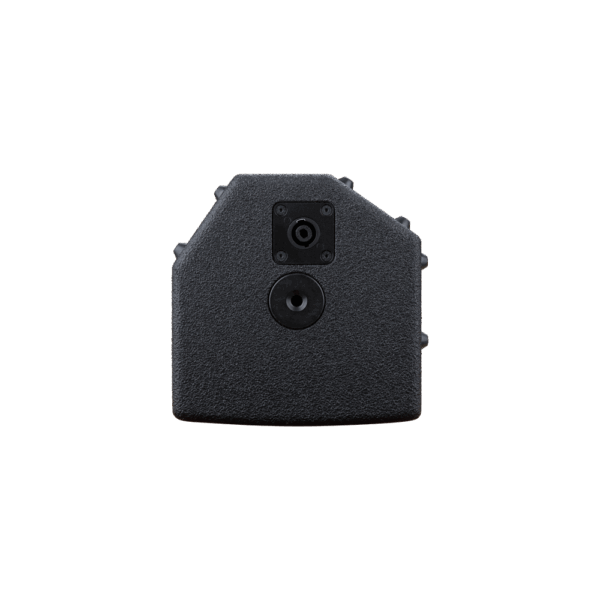

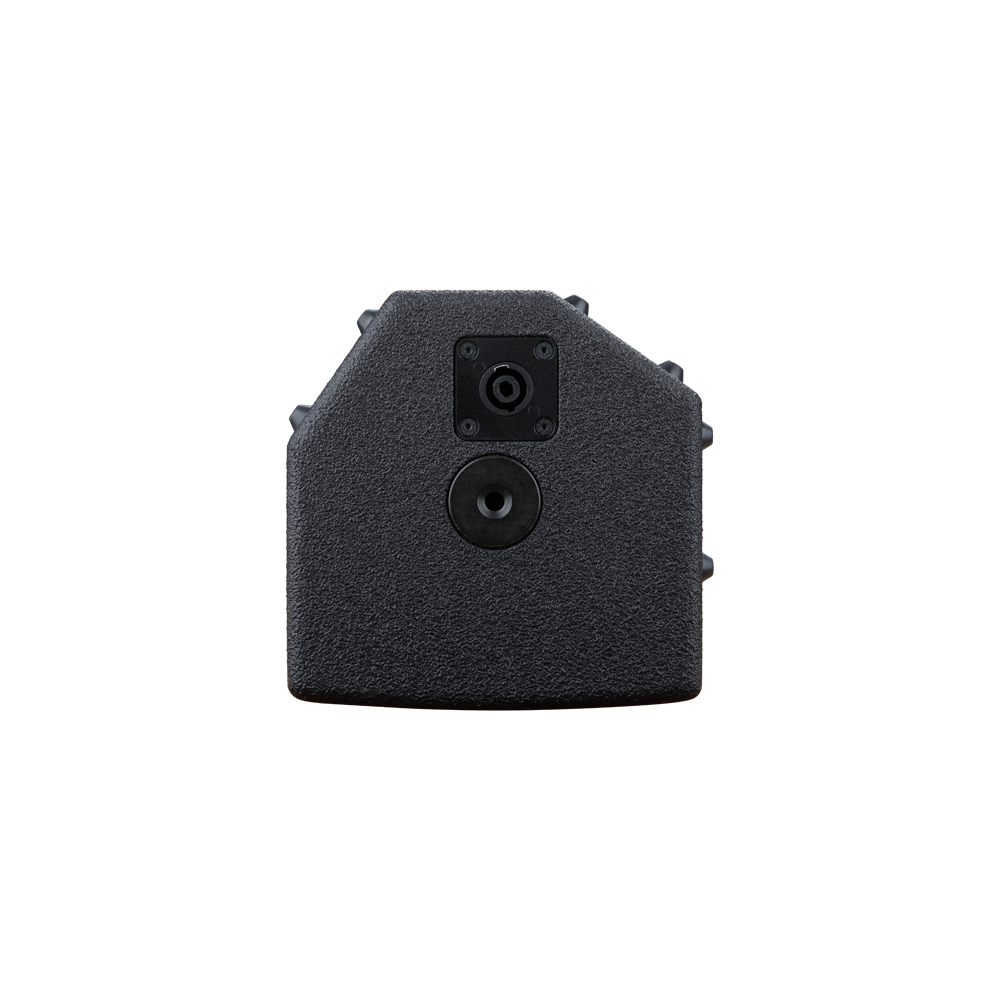

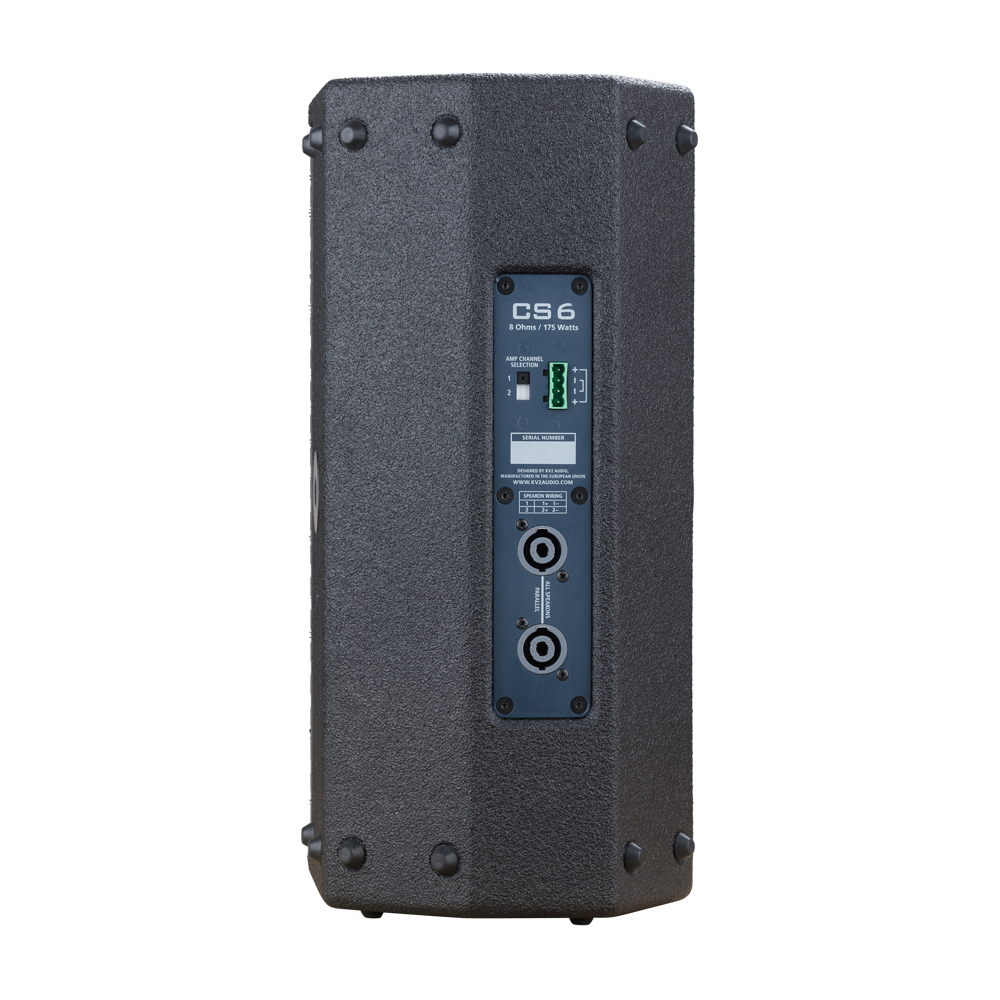

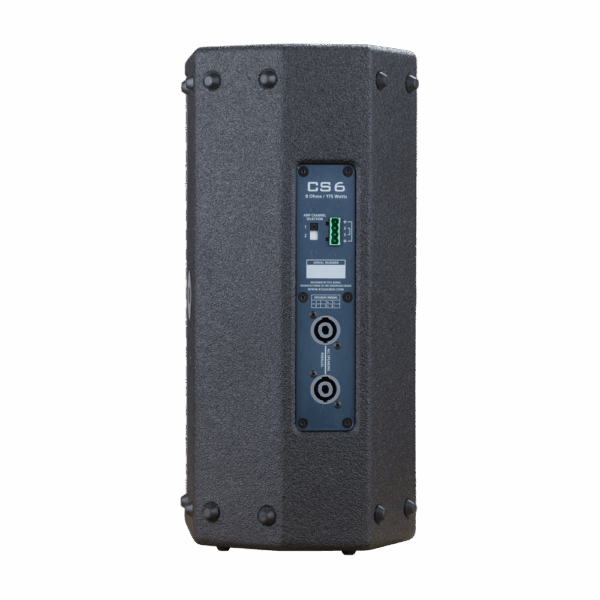

4x Neutrik Speakon, Terminal block
Cabinet:
Cabinet Material: Baltic birch
Color: Plastic paint

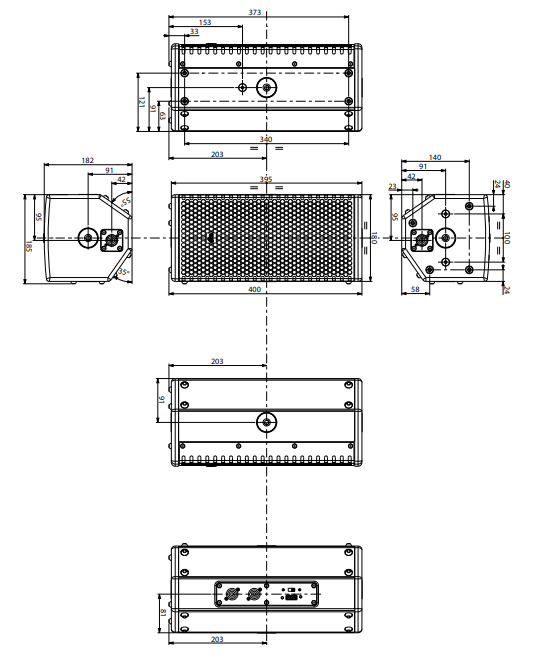

Physical Dimensions:
Height: 400mm (15.75“)
Width: 185mm (7.28“)
Depth: 182mm (7.17“)
Weight: 8,3 kg (18.26lbs)
Product code:
KVV 987 434
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Purpose designed as a discreet portable passive loudspeaker for speech for Rental and Production companies
● Corporate presentations and functions ● Full range performance with addition of subwoofers ● Infills ● Close monitoring ● Fixed installations
