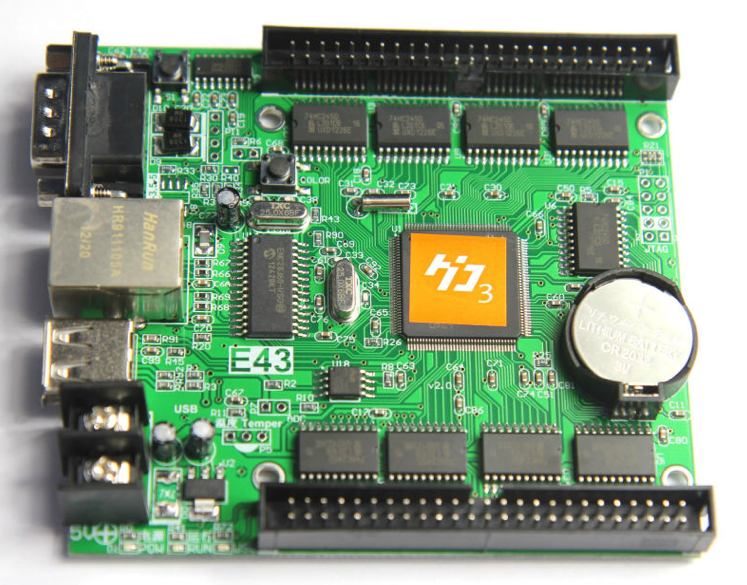

Brand: HD
Model: HD-43
Type: Control card for LED display
Description:
Scope of application:This product is applied Signage, shops, vehicles, outdoor advertising and more.
Advantages: wireless transmission of U-Disk & RS232 serial port and a network port, cost effective, simple software interface, easy to use, rich and subtle effects on the display; above all, more than 98% of single / double color screens are supported.
Application Software: fourth-generation operating software HD2014 screen
Characteristics:
Type of control card: a color / double color / seven-color
Control range: 512 * 1024 * 128 and 4096 for a single color; 512 * 512, 128 * 64 * 2048 and 4096 in two colors; 256 * 672 and 1344 * 128 for seven colors;
Scan mode: static, 02.01, 04.01, 08.01 and 01.16 common modes
Types of communication: U-Disk / RS232 serial port / network port
Power supply: + 4.2-5.5V
Power consumption: ≤0.5W
Operating environment: -40 degrees - 75 degrees

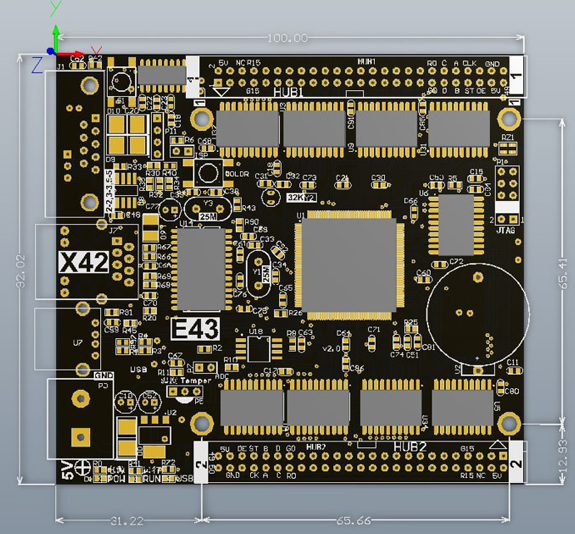

Dimensions of installation: 92.0 (H) * 100.0 (W) (mm)
FLSH capacity: 2MB (can be extended to 8M Byte)
Communication ports: U-Disk / RS232 serial port / network port
Color: Dual color maintained all the red, green and yellow.
Seven colors: full color gamut reproduces colors red, green, blue, yellow, purple, blue and white.
Programs: More than 200 programs are available that can change with the buttons or remotely.
LED Pixel: 512 (H) × 1024 (W) (The resolution is 512K.)
Text content: text, images, time, temperature, graphics, animations.
Display Modes: switch buttons or remote control.
text, image, time, number, temperature (module should be connected.) and others.;
Enclosing the program settings / size / custom borders;
Various modes of operation.
Over 40 special effects.
Enclosing simple animations.
Option for background settings.
Enclosing Calenda and analog clock.
Background, color, size and position can be freely adjusted.
Enclosing multiple time zones.
Advanced settings: Temperature / humidity / light sensors / wireless RF module / remote control.
Automatic switching: Switch
Brightness settings: enclosing three modes of brightness.
