Brand: ChovA
Model: ChovAFIX
Type: Dowel
DESCRIPTION: White polypropylene spikes.
Specifications:
RAWLPLUG diameter (mm): 8mm
RAWLPLUG Length (mm): 80mm
Maximum Insulation Thickness (mm): 60mm
Minimum anchorage depth (mm): 40mm
Presentation: box
Number in one box: 500pcs
Installation:
1- Drilling the support and fix the material with a bit of 8 mm.
2- Nail the fixation with a hammer.
3- The Number of recommended fixings per square meter is 3 to 4, and may vary depending on the material type to install.
STORAGE: The material must be kept from weather and stored upright.
RECOMMENDED FOR:

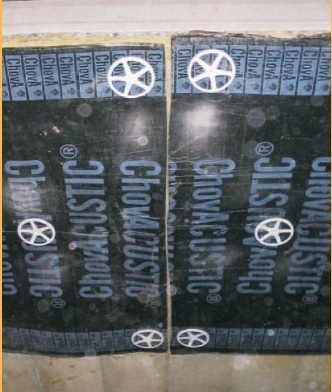

- Panel fixing ChovACUSTIC Panel ® 65 LR 70/4 on the following supports: Concrete, alveolar brick, solid brick and hollow brick.

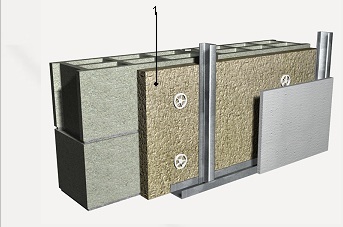

- Fixing of thermal insulation materials (extruded polystyrene, mineral wool, ...)
