Brand: SCAME
Model: 685.011

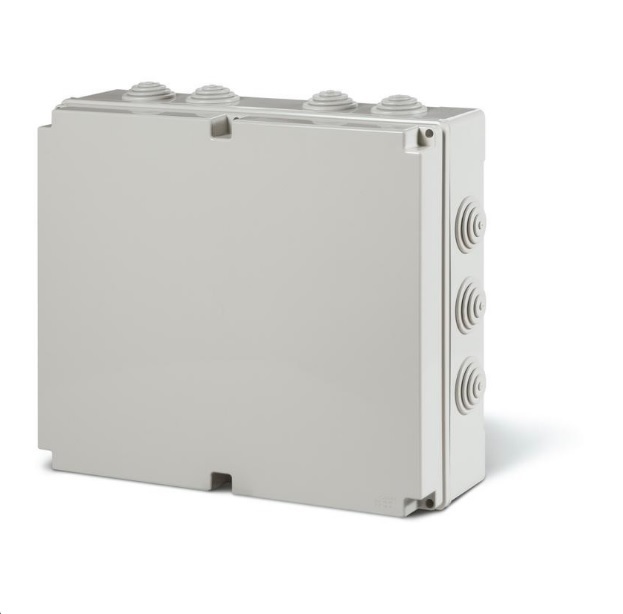

Type: Terminal box
Description: Terminal box with cable membranes and with the possibility of installation on a mounting plate or DIN rail with degree of protection IP55.
Technical characteristics:
Dimensions: 460x380x130 mm
Number of cable entries: 14 X Ø 48
For spigot: PG 36
Degree of protection: IP 55
UV protection: Yes
Resistant to dilute acids: Yes
Resistant to concentrated acids: Limited
Non-flammability test: 650°
Operating temperature: from: – 25° to + 35°
Maximum working temperature: + 60° C
Weight: 3.25 kg
Material: ABS (without the cable inputs)
Application: Terminal box for placing a certain number of power supplies, amplifiers and other electrical parts,
