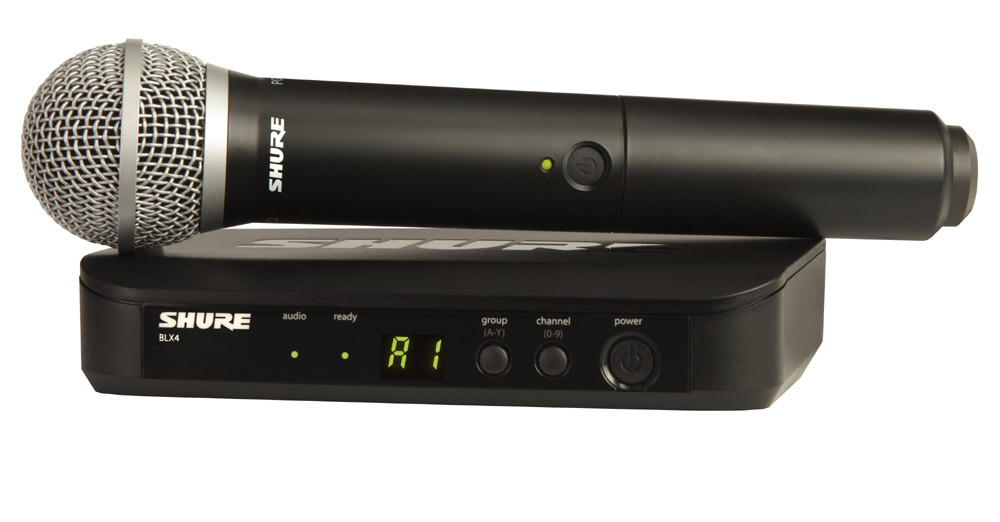

Brand: Shure
Model: BLX24E / PG58
Type: wireless microphone system
Description:
Includes: BLX4 channel receiver, BLX2 / PG58 handheld transmitter, microphone clip, power supply, 2 AA batteries, user manual.
PG58 Vocal Microphone
Frequency tuned specifically for vocal applications
Cardioid polar pattern
Dynamic cartridge
Supports extreme volume levels without distortion
Neodymium magnet
Anti-shock system
Metal construction
On / off switch
Grid of stainless steel mesh microphone
Pop Filter
4,57m cable, mic clip and storage bag
BLX2 hand transmitter
Power and battery status LED
Adjustable gain
AA batteries (included) provide up to 14 hours of continuous operation
100 m Operating range (line of sight)
RECEIVER BLX4
Up to 12 compatible systems bandwidth
Microprocessor-controlled internal antenna diversity
QuickScan system
¼ "and XLR audio outputs
Color LED status audio
ACCESSORIES
Swivel Adaptor
Power PS23E
Thread adapter
Specifications:
Compatible system bandwidth (up to): 12
Selectable frequencies: 150
QuickScan system
Included Antennas: BLX4, BLX88: Internal BLX4R: Detachable
Display transmitter: LED
Display of the receiver: BLX4, BLX88: LED, BLX4R: high-resolution LCD display
Battery: 2AA, to 14h
Working range: 91 meters
Available Frequency: Between 524-865 MHz
Audio range: 50-15,000 Hz (depending on the type of microphone)
RF transmitter output power: 10 MW
Audio Output Connector: XLR and 1/4 "(6.3 mm) unbalanced
Maximum output level: -27 DBV (level XLR microphone input), -13 DBV (1/4 ")
Battery life: 14 hours
Dynamic Range: 100 dB A-weighted
System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating temperature: -18 ° C (0 ° F) - 50 ° C (122 ° F)
Power requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
BLX4: 12-18 V DC 150 mA, powered by an external power source
BLX4 RECEIVER
Output impedance:
- 200 Ω XLR connector
- 6.35 mm (1/4 ") connector 50 Ω
Audio Output Level Ref. ± 33 kHz deviation with 1 kHz tone:
- 27 DBV XLR connector (in 100 k load)
- 6.35 mm (1/4 ") connector -13 dBV (into 100 kΩ load)
RF Sensitivity: 105 dBm for 12 dB SINAD
Dimensions: 40 mm X 188 mm X 103 mm
Weight: 241 grams
Housing: Wood ABS
Power Requirements: 12-15 V DC @ 160 mA
BLX2 hand transmitter
Audio Input Level
- Gain 0dB: -20 dBV maximum
- Gain -10dB: -10 dBV maximum
Gain Adjustment Range: 10 dB
RF Transmitter Output: 10 mW
Dimensions: 224 mm X 53 mm
Weight: 218 grams
Power requirements: 2 AA batteries LR6 1,5 V, alkaline
Battery life: 14 hours (alkaline)
