Brand: Shure
Model: BLX14RE
Type: Guitar Microphone
Description:

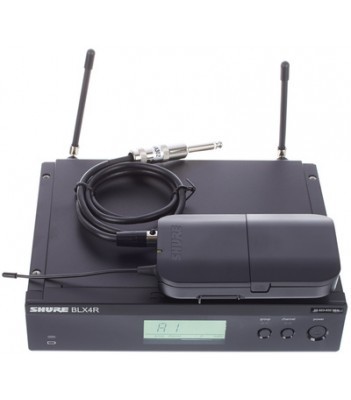

Shure BLX14R, SM guitar series, UHF wireless microphone BLX1 "pocket" Transmitter Quick-Scan function selection of free frequency handheld transmitter with 4 Pin TQG connector, 9,5 "1U receiver with a metal housing, unscrew the antenna, XLR and jack outputs, LCD display, WA302 guitar cable and mounting kit.
Technical specifications:
Compatible system bandwidth (up to): 12
Selectable frequencies: 150
Automatic settings: QuickScan: Located group with the compatible frequencies and sets best frequency.
Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable
Display transmitter: LED
Display of the receiver: BLX4, BLX88: LED, BLX4R: high-resolution LCD display
Battery life: 2AA, to 14h
Additional features:
Working range: 91 meters
Available frequencies between 524-865 MHz
Sound range: 50-15,000 Hz
RF transmitter output power: 10 MW
Output connector:
XLR and 1/4 "(6.3 mm) unbalanced
Maximum output level: -27 DBV (XLR, mic level), -13 DBV (1/4 ")
Battery life: 14 hours
Dynamic range: 100 dB A-weighted
Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating temperature: -18 ° C (0 ° F) - + 50 ° C (122 ° F)
Power: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
BLX4R: 12-15 V DC @ 260 mA, powered by an external power source
BLX4R Receiver
Output impedance:
- XLR connector: 200Ω
- 6.35 mm (1/4 ") connector: 50Ω
Baseline, Ref. ± 33 kHz deviation with 1 kHz tone:
- XLR connector: -20,5 DBV (a 100 kΩ load)
RF Sensitivity: -105 dBm for 12 dB SINAD
Dimensions: 50 mm x 198 mm X 163 mm
Weight without antenna: 998 g
Housing: ABS, steel
Power Requirements: 12-15 V DC @ 260 mA, powered by an external power source
BLX1 Bodypack transmitter
Input signal level:
- Gain max: -16 dBV max.
- Gain min (0 dB): +10 dBV max.
Correction signal 26 db
Input impedance: 1 MΩ
RF transmitter output: 10 mW
Dimensions 110 mm x 64 mm x 21 mm
Weight: 75 g, without batteries
Housing: ABS
Power supply: 2 LR6 AA batteries, 1,5 V, alkaline
Battery life: 14 hours (alkaline)
Application: Guitar microphone.
