Brand: ESDLUMEN
Model: BIM Pro 2.6
Type: LED display for indoor fixed installation
Note: The price is per square meter
Description: BIM Pro is a specially designed LED display for fixed mounting. Compared to other similar products, BIM Pro has a light and ultra thin body. The 16: 9 aspect ratio of BIM PRO provides better visual pleasure.
Technical characteristics: Model: BIM Pro 2.6
Pixel dimensions (mm): 2.6mm
Pixel density (dot / m²): 140625
Brightness: 1000 nits
LED type: SMD2121
Module size (mm * mm): 256 * 288mm
Gray Scale (bit): 16
Refresh rate (Hz): 3840

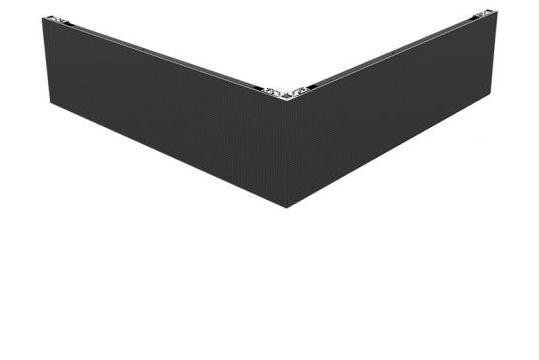

Right angle splicing:yes
Cabinet size (mm * mm * mm): 1024 * 288 * 40mm
Cabinet weight (± 0.25 kg): 7 kg
Cabinet resolution (px * px): 384 * 108 pixels
Horizontal viewing angle (degrees): 140 °
Vertical viewing angle (degrees): 150 °
Refresh rate (Hz): 3840
Maximum power consumption (W / m²): 640W / m²
Average power consumption (W / m²): 256W / m²
Input voltage (V): AC 100-240V
Protection: IP20
Working environment: indoors
Application: For advertising in glazed shop windows, shopping malls, ceilings
