Brand: BEHRINGER
Model: ULTRADRIVE PRO DCX2496
Type: Digital crossover
Specifications:

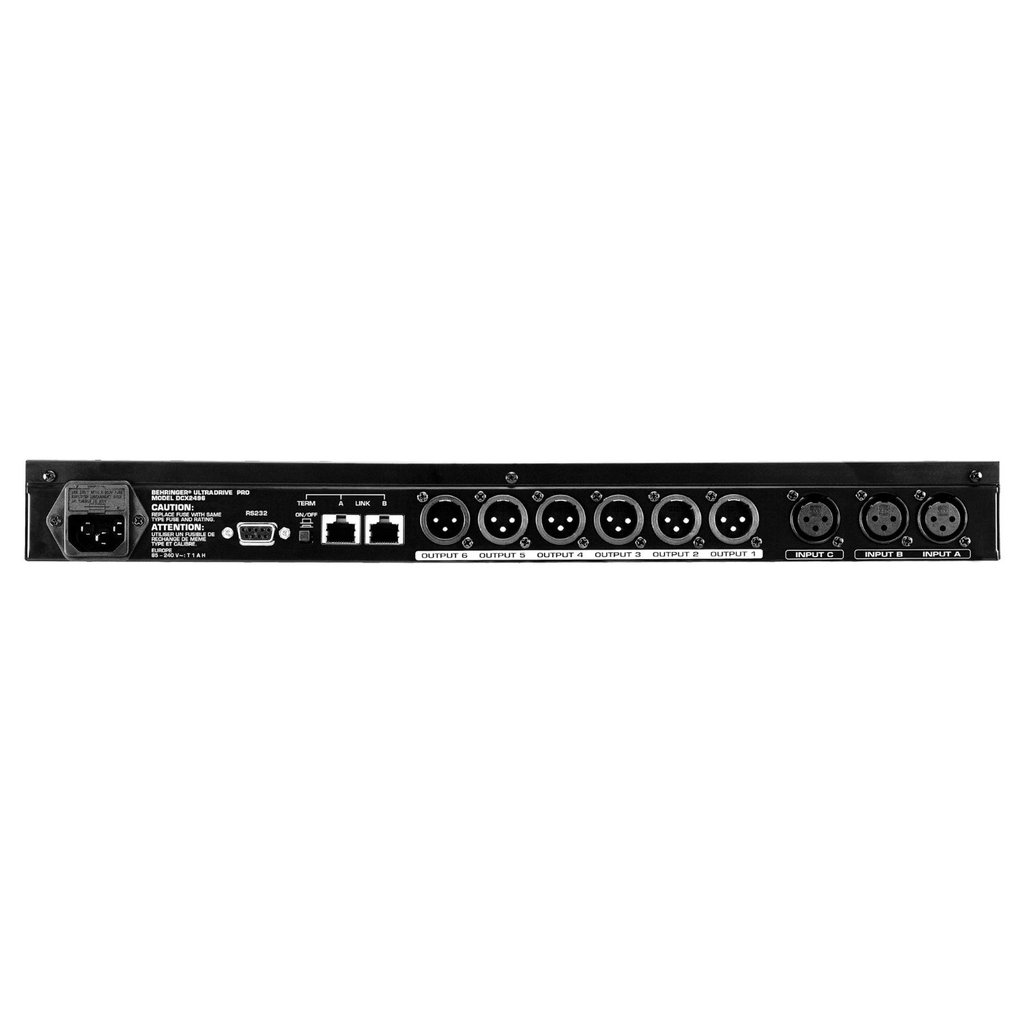

3 analog inputs (one suitable as a digital stereo AES / EBU input) and 6 analog outputs for maximum flexibility.
High grade AKM ® 24-bit / 96 kHz A / D and D / A converters for optimum signal and a wide dynamic range (113 db).
Integrated converter sampling rate, for easy connection of external digital signals from 32 to 96 kHz.
Precise dynamic EQ-so for equalization of volume and outstanding EQ-th parameters of volume, selectable for all inputs and outputs.
Several types of EQs (LP / BP / HP) for each input and output.
"Zero" -attack limiters on all output channels for optimal speaker protection.
Four different mono and stereo output modes work.
Individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics 6-48 DB / octave.
Adjustable Delays for all inputs and outputs allow manual or automatic correction.
Additional signal coming from A / B / C inputs offers a quadruple internal input.
Proven ULTRADRIVE PRO software enables remote control via PC through the RS-232 and RS-485 interfaces (www.behringer.com).
Link option via RS-485 network interface enables cascading of several ULTRADRIVE PRO crossover.
60 built-in settings selected by the user can be recorded via PC software or on PCMCIA card.
Open architecture provides easy software updates.
Servo-balanced, gold-plated connectors for all inputs and outputs.
High-quality components and exceptionally rugged construction for long life and durability.
Built-in switch mode power supply for maximum flexibility.
(100-240 V ~), noise-free audio, exceptional level of Transition sound and lowest possible power consumption.
Designed by BEHRINGER Germany.
Application: Clubs, bars, concerts, rent events, studio equipment.
