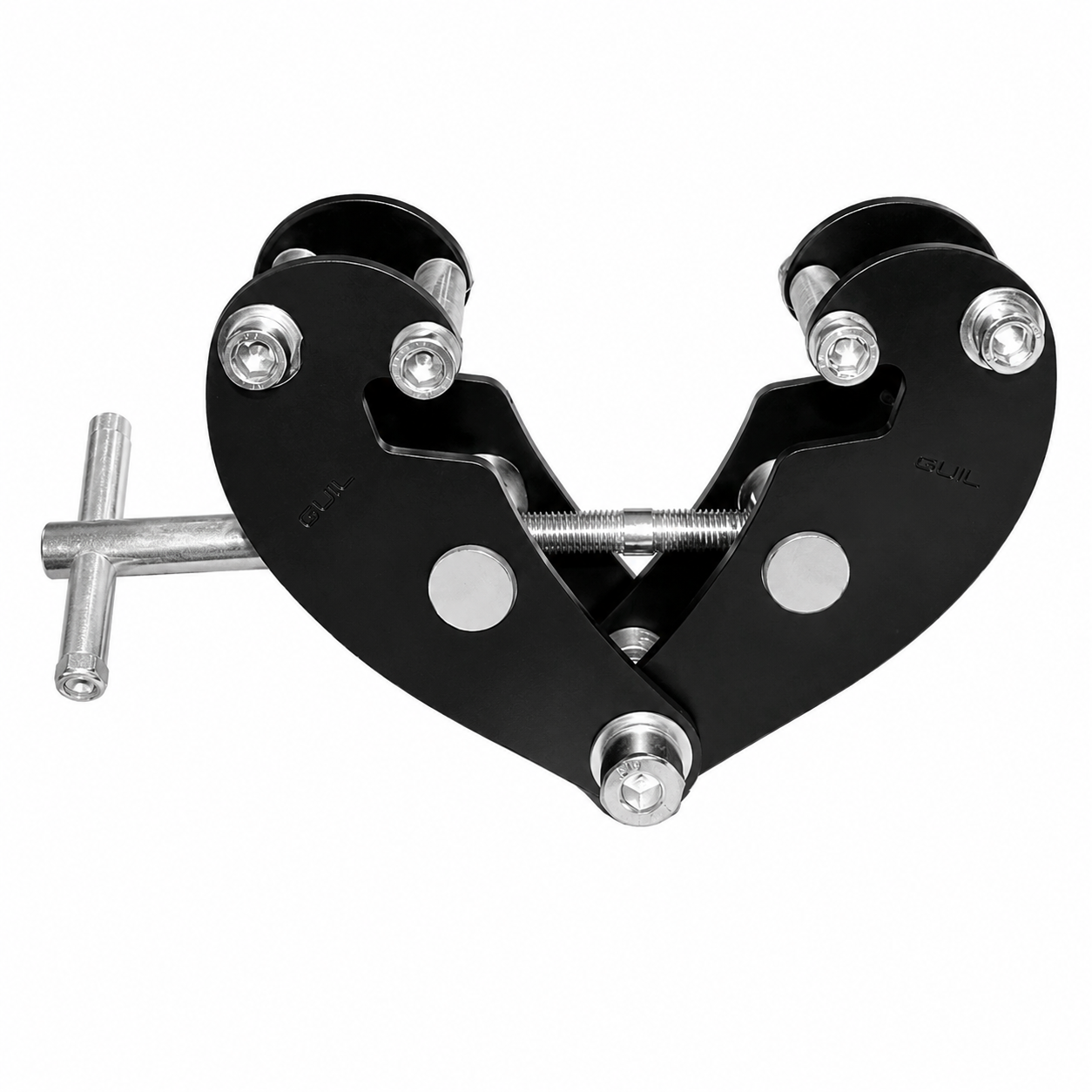

Brand: GUIL
Model: CS-10
Type: Beam Clamp

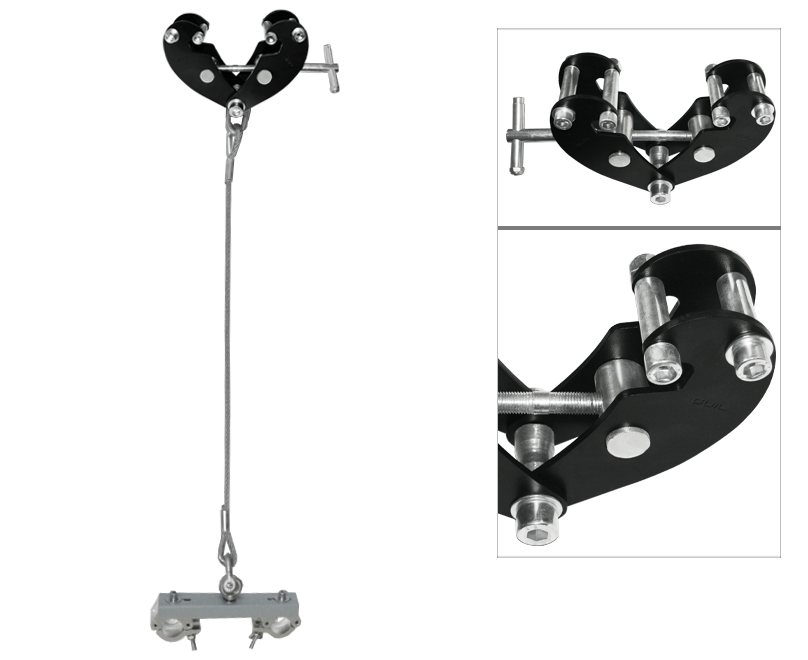

Description:Beam clamp capable of supporting loads up to 2000 kg. It has multiple applications due to the wide adjustment range from 75 to 230 mm. The CS-10 beam clamp is designed to hung hand or electric hoists from beams/girders for multiple heavy lifting tasks. It allows creating a temporary or permanent fixing point for lifting equipment in ”IPN” beams or H-shaped profiles. Our girder clamp ref- CS-10 can be also used to transport beams easy and safely. It is very easy and quick to install. It is particularly robust thanks to its high-strength alloy steel construction. Its assembly with screws allows the substitution of any part if required.
Technical Parameters:
Maximum Load: 2000 kg
Beam Width: 75 – 230 mm (Adjustable)
Colour: Black
Material: Steel
Net Weight: 5,5 kg

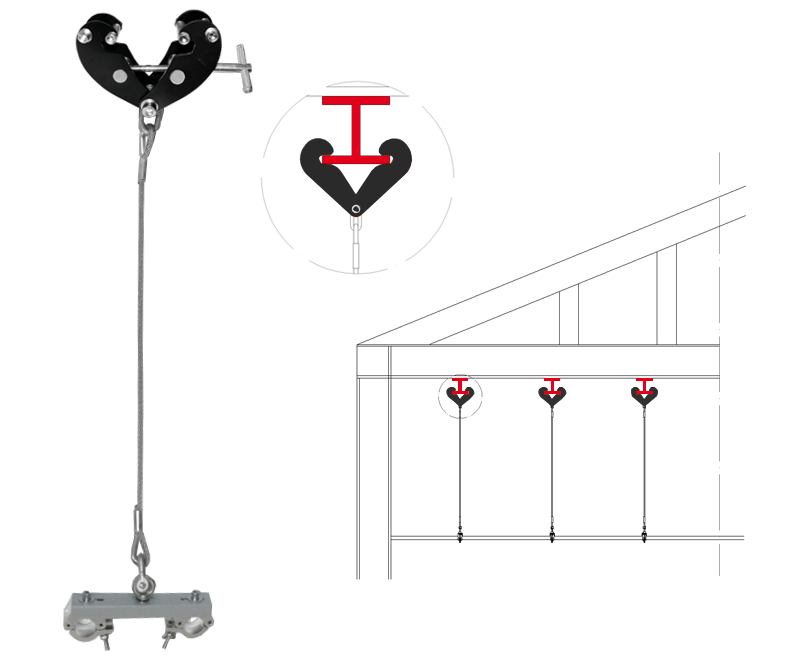

Application: Suspension of manual or electric hoists from "IPN" beams or H-shaped profiles for many tasks for lifting heavy loads.
