Brand: Artnovion
Model: Siena
Type: Bass Trap Corner
Description:

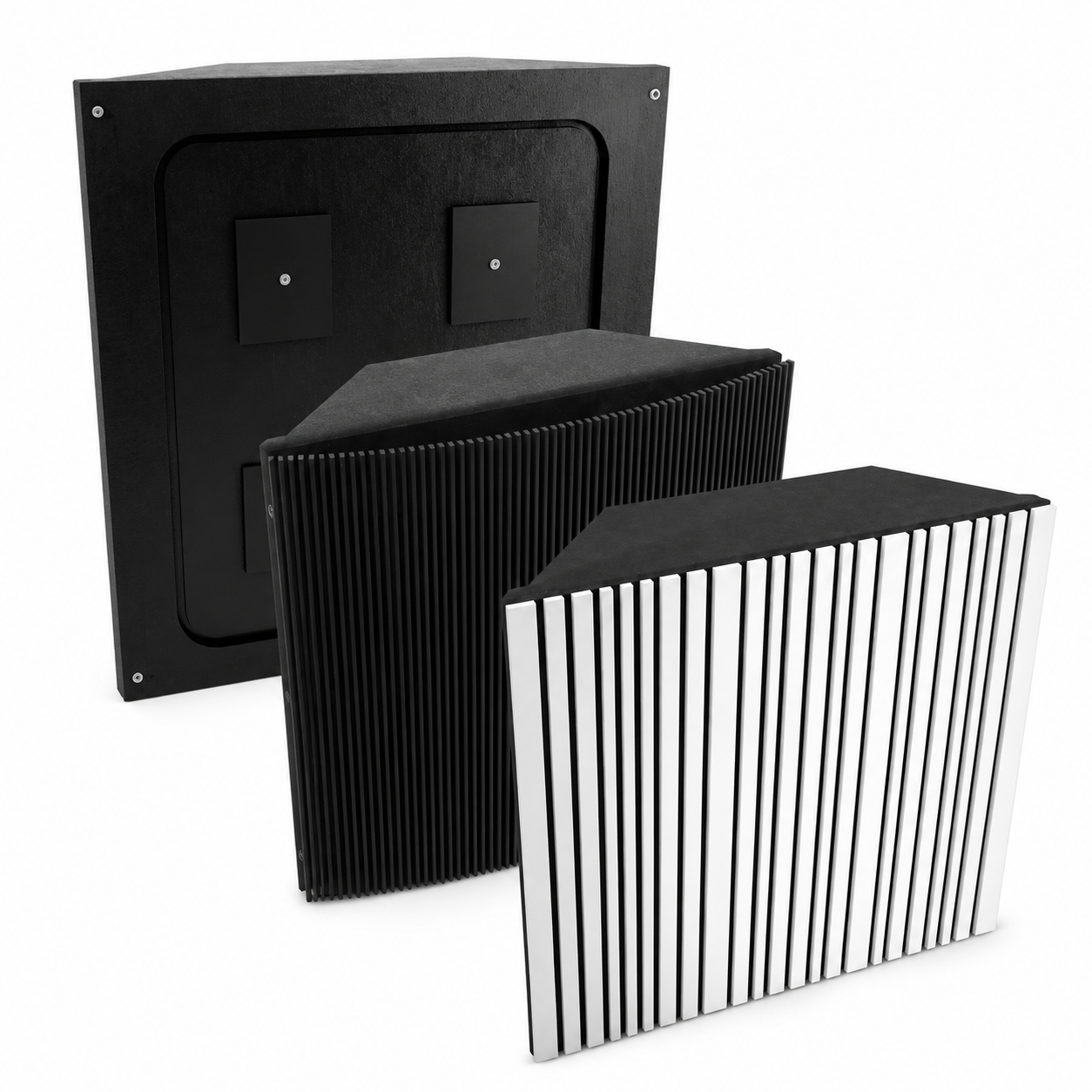

The Corner bass trap is the latest in low frequency absorption. This elegant panel integrates a tuneable membrane over a sealed volume, containing a high performance acoustic core. A secondary posterior compartment positions a high density velocity core in the high pressure zone of the room. The panel is completely tuneable, by means of an adjustable weighted membrane, allowing to pin-point the performance of the panel to a target frequency.
The panels' tuneable membrane works in a similar way to a speaker cone, allowing for a much superior - and controlled - performance. A central mass is supported by an elastic membrane - This mass can then be altered to change the resonant frequency of the membrane, stepping the peak performance of the Trap from 58 to 82 Hz.
T.P.D.A. - Artnovion technology
Purpose:
- Room mode control
- Bass ratio control
- Lowfrequency RT reduction
- Improving low frequency response
- Reducing low frequency time decay
Main Features:
Product Composition:
- Natural wood or Lacquered HMDF
- Marine grade plywood structural frame
- Calibrated cell acoustic foam
- Tuneable diaphragmatic membranes (TPDA)
- High performance porous absorber core (VABT)
Integrated Fixing System
Range | Dimensions:
Siena Bass Trap - Corner | 595x595x163mm
The technical file for Siena Bass trap can be viewed here
Application: Hi-Fi Listening Room, Living Room, Media Room, Home Cinema
