Brand: RCF
Model: ART 710-A MK4
Type: Active speaker

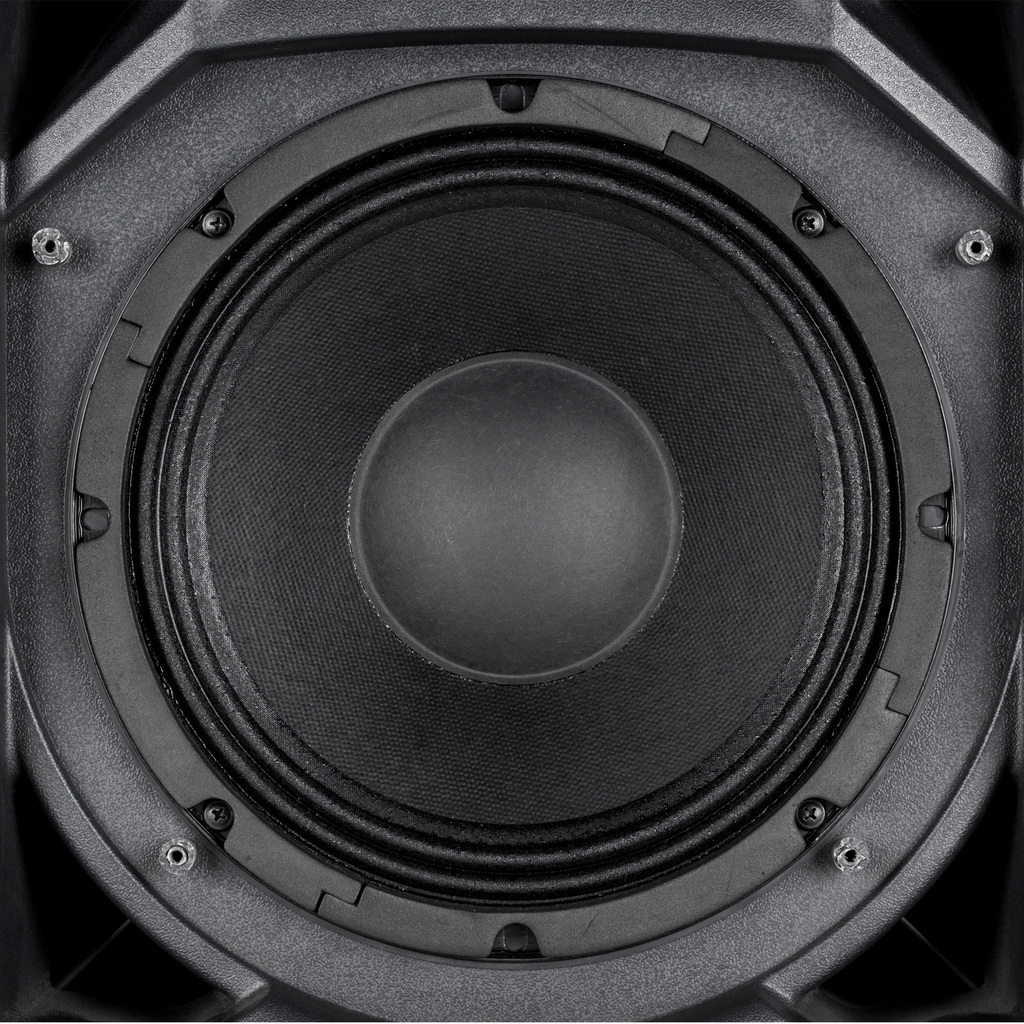

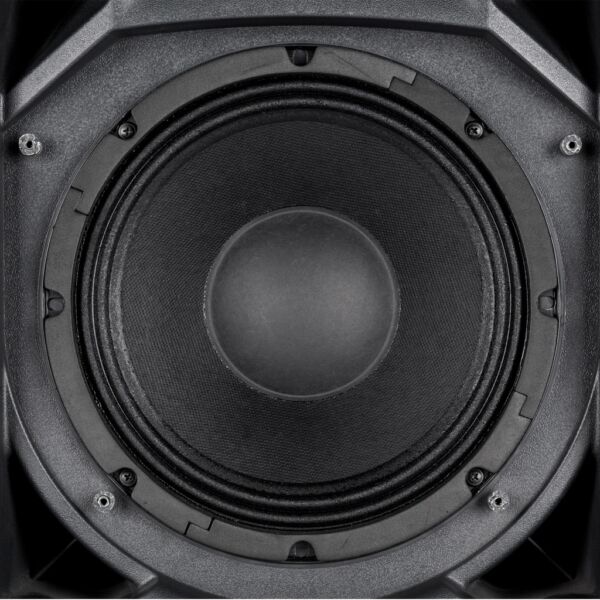

Description:ART 710-A MK4 is a unique product in its category. The compression driver with custom designed dome and high power voice coil offers unique vocal clarity and sound projection. The 10” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
Technical characteristics:
1400 W Peak, 700 Watt RMS digital amplifier
90 x 70, Wide dispersion constant directivity horn
1" HF driver, titanium dome, 1.75" voice coil
Frequency Response -3 dB: 50 Hz ÷ 20 kHz
Horizontal coverage angle: 90°
Compression Driver: 1.0", 1.75" v.c.
Input signal: bal / unbal
Output connectors: xlr
Crossover frequencies: 1700 Hz
Limiter: Soft limiter
Total power: 1400 W
Low frequencies: 600 W
Connections: VDE conncector in
Cabinet
Hardware: 2xM10 flying p.
Pole Mount/Cap: Yes
Height: 549 / 21.6 mm/inch
Depth: 304 / 11.9 mm/inch
Net Weight: 14 / 30.86 kg/lbs
Application: Clubs, discos, restaurants, mobile DJs and more.
