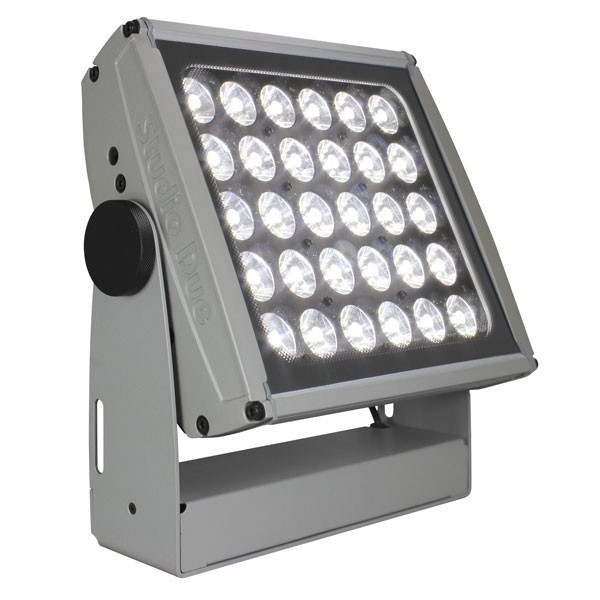

Brand: Studio Due
Model: WL 30 20*30
Type: LED BAR
Description:
The new WL 30 with its smart design is the new IP67 LED Lighting fixture suitable for monochromatic applications. High efficient optic system for a rectangular projection, utilizes high brightness LEDs. It can be supplied with different color temperature white LEDs (warm, neutral and cool) or red, green, blue LEDs.
• Standard fixture colour finishing is grey. Optional black and white (art. FX-COLOUR).
Technical parameters:
• SOURCE
n. 30 (5W) White LEDs 5000K
Total light power: 90W
Total out lumen: 12000 lm
On request:
3000K, 4000K, 6000K white LEDs or red, green, blue, amber LEDs
• OPTIC
Square Opening (20ºx30º) 35mm lenses
On request:
- narrow and wide (35 mm lenses)
• TILT
Manual 160°
• CONTROL
None
• CONNECTIONS
Main Power: 3x0.75mm cable
• SETUP and CONFIGURATION
Plug-in
• RATING PROTECTION
IP 67
• POWER SUPPLY
Voltage range: 88-264VAC, 124-370VDC
Frequency range: 47-63Hz
Active Power factor: PF>0.95/230VAC, PF>0.98/115VAC
Current: 0.35A@230VAC;
Fuse inside Power Supply
Power: 100W
• PHYSICAL
WxDxH: 350x130x340 mm
Weight: 9 Kg.
