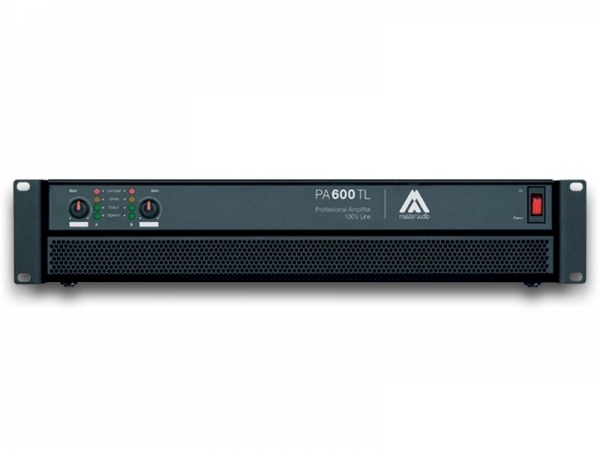

Brand: Master Audio
Model: PA-600TL
Type: Power Amplifier
Description: Class H - 2 x 150 W @> 64 ohm - 2 U 19 "- 10.5 kg
Limiter to avoid saturation of the transformer under the speaker.
Technical specification:
Input Impedance: Balanced: 20KOm, unbalanced: 10KOm
Frequency response: 20Hz-20KHz
Input sensitivity: 1,2V
Slew Rate: +/- 20 V / us
Dumping factor:> 350
Signal / noise ratio> 94 db
Harmonic distortion THD: 1kHz, 0,1%
Crosstalk: 85 dB
Power output: 300 W @ 32 Ohm (Minimum load) - Continuous burst tone 20 ms (0dB) / 480ms (-20dB) in accordance with EIA RS-490 and IEC 60268-3
Power supply: 230V / 50-60Hz, has an AC adapter
Dimensions HWD (mm): 88 x 482 x 416 mm
Weight / gross (kg): 14 kg
Applicable Places: DJ parties, discos, clubs, scenes
