Brand: GUIL
Model: ABZ-07/E
Type: Aluminum clamp for quick fixing

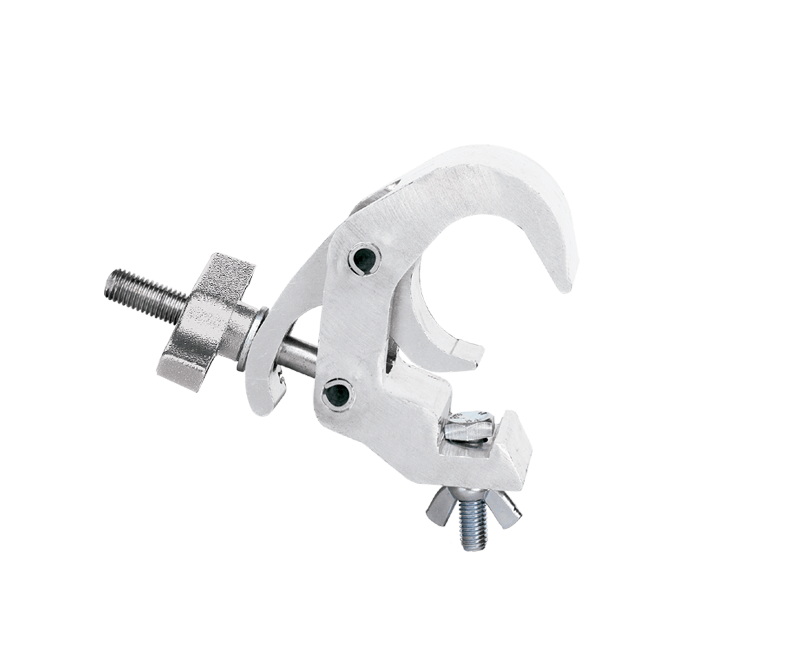

Description: Aluminum thin clamp for quick fixing for loads up to 100 kg. Comes with ergonomic knob + bolt and wing nut for attachment, spotlights, electronic devices, etc. Designed for use on trusses / pipes with an external diameter of 38 mm to 51 mm. It has a special design that provides quick attachment of devices with one hand, as it is shaped like a hook clamp. The ergonomic fastening knob makes installation faster as this larger knob makes it easier to tighten. Its slimmer design makes it more suitable for installations where the space required to mount the bracket is limited. By replacing the bolt and wing nut with a wing nut or other fixture, it can be used for other functions. This quick release clamp ref. ABZ-07/E, combines strength and durability with a high level of safety. Note: Also available in black (ref. ABZ-07-E/N)
Technical characteristics:
SPECIFICATIONS ABZ-07/E
Maximum load: 100 kg
For pipes with a diameter of: 38 to 51 mm
Width: 30 mm
Fixings: M10 x 30 with wing nut and washer
Material: Aluminum
Color: Aluminum
Net weight: 0.54 kg
Application: For quick fixing of loads up to 100 kg
