Brand: Guil
Model:ABZ-38
Type: aluminium clamp

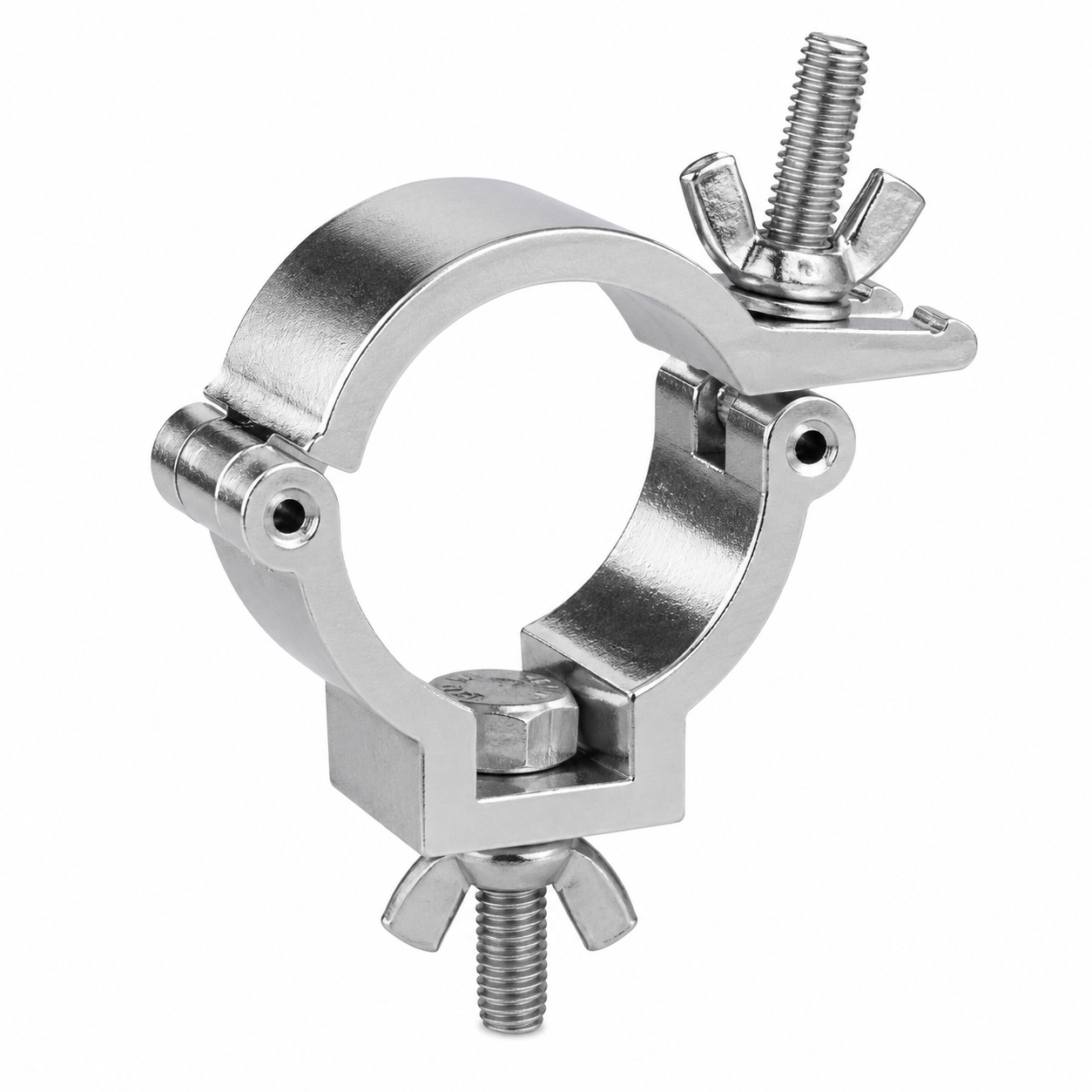

Description: Light-weight aluminium clamp coupler.
- Practical multi-purpose coupler that is used in various fields (construction, entertainment industry, theatre etc.).
- It combines strength and durability with a high level of safety.
- Designed to be used on tubes with an external diameter from 35 mm to 40 mm.
- It comes complete with bolt and wing nut to secure the load.
- Substituting the bolt and nut for an eye nut or a second clamp (converting it into a swivel coupler) it can be used for other functions.
- Manufactured with high resistance extruded aluminium.
Technical characteristics:
Maximum Load:WLL30 Kg
Net Weight:0,11 kg
Colour:Aluminium
For Diameters of:35-40 mm
Material:Aluminium
Net Weight:0,11 kg
Colour:Aluminium
For Diameters of:35-40 mm
Material:Aluminium
Application:stages, fixing the light effects of aluminum truss, in construction
