Brand: Guil
Model: ADT-15
Type: ADJUSTABLE TRUSS ADAPTOR

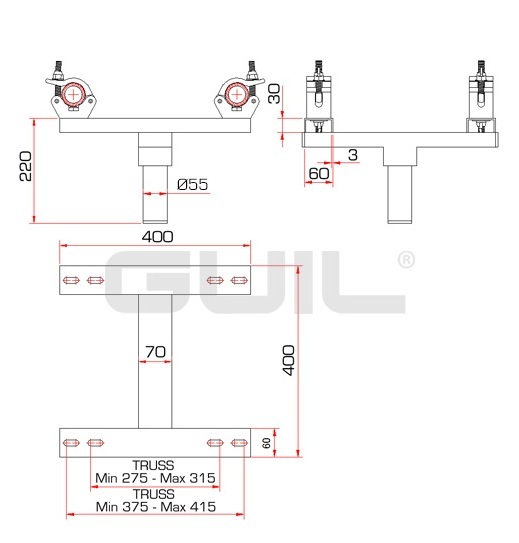

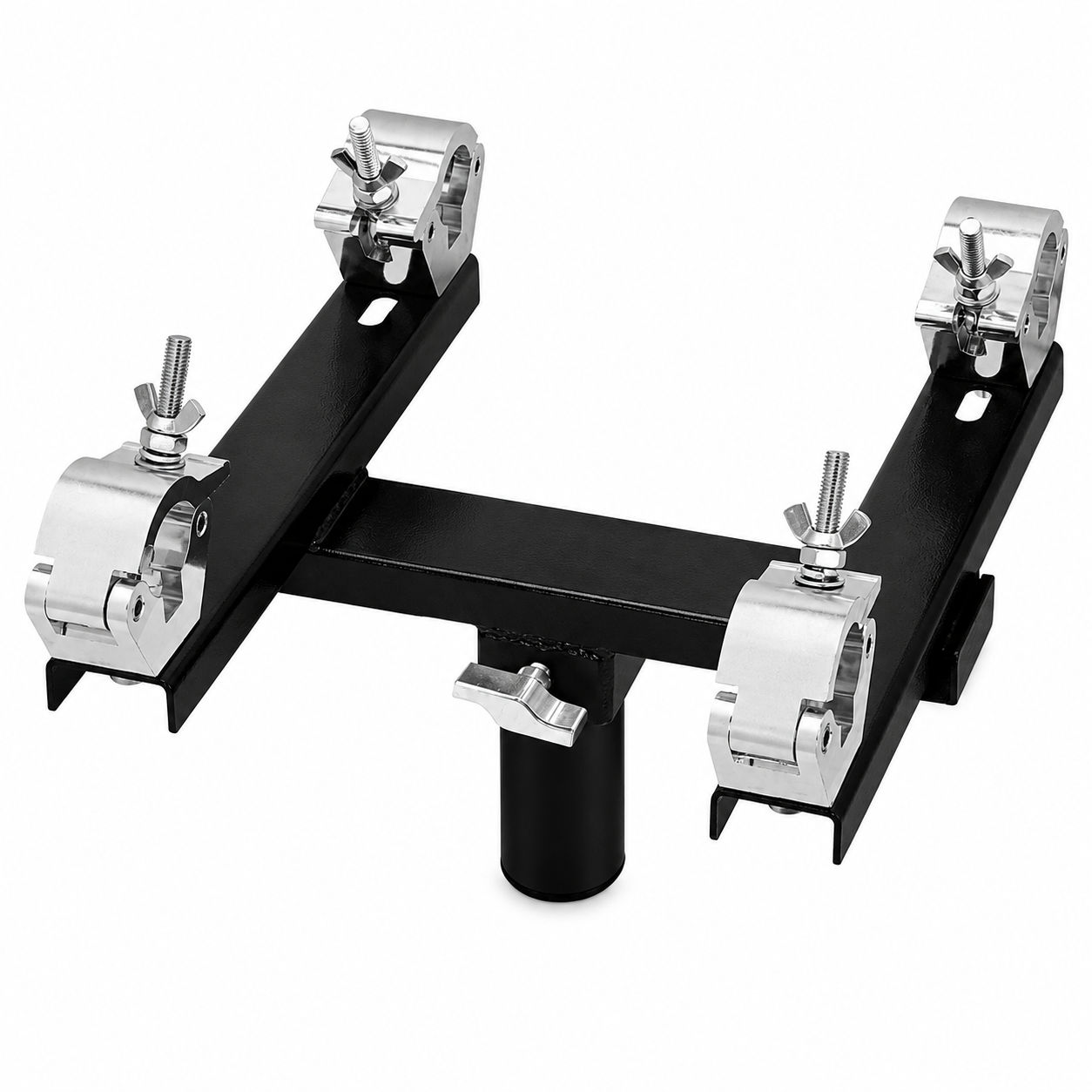

Description:ADJUSTABLE TRUSS ADAPTOR FITTED WITH 4 ALUMINIUM COUPLERS & A Ø 55 mm SPIGOT. FOR TRUSS FROM 290 TO 400 mm
Adaptor to use truss in “T” arrangement.
Truss adaptor with a Ø 55 mm insertion tube.

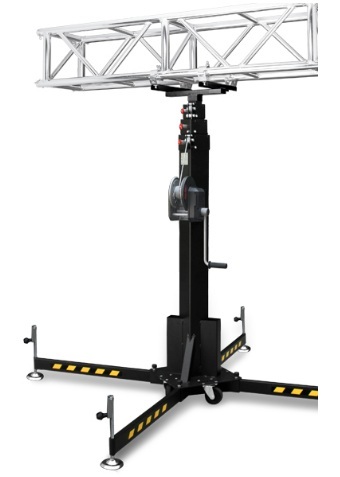

Suitable for Ref. ELC-770 and ELC-780 towers.
Thanks to its adjustable system, just one adaptor can be used for different size trusses.
Designed for square trusses from 27.5 cm to 41.5 cm.

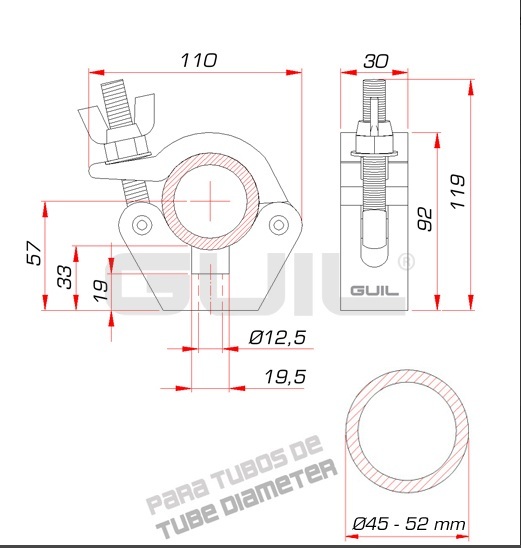

Base has a textured, black, anti-scratch finish and four aluminium clamps.
Technical characteristics:
Net Weight: 6.9 Kg
Adjustable: Yes
Insertion tube size: Ø55 mm
Application:for ELC lifting towers
