Brand: Guil
Model: ADT-44

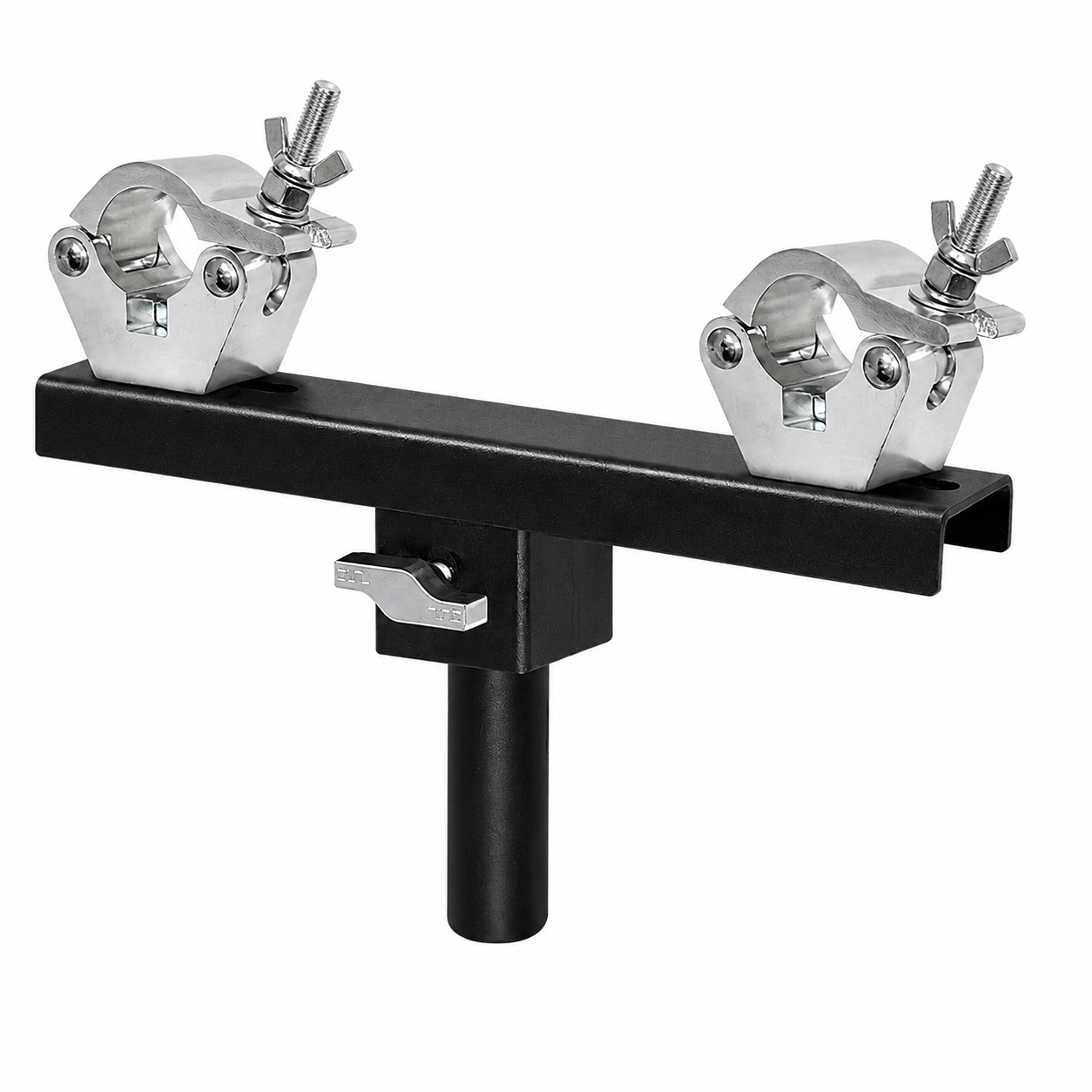

Type: Adjustable adapter for aluminum truss
Description:Adjustable truss adaptor with a Ø 35 mm insertion spigot ending.
– Its adjustable design allows it to be used with different size truss: from 250 mm to 400 mm.
– The couplers that are provided with the adaptor are swivelling, this way the truss can be fitted to the adaptor in any required position offer professionals multiple set-up possibilities.
– The adaptor is manufactured in a “U” shaped steel profile that is 5 mm thick for a stronger and more stylish finish (non-deformable). Rounded edges giving a smooth finish preventing damages or injuries (no sharp edges).
– The Ø 35 mm ending has a square strengthening ferrule which removes the possibility of the top tube of the tower being damaged due to horizontal forces.
– The adaptor is secured to the tower using a metallic ergonomic knob.
– It has a textured, black, anti-scratch finish.
Suitable for towers Ref. ELC-720, ELC-730, ELC-740, ELC-750 and ELC-760
Technical characteristics:
Net Weight: 3 Kg
Adjustable: Yes
Swivelling: Yes
For trusses: From 250 to 400 mm
Ending: Ø 35 mm spigot
Couplers: For tubes with an external diameter of 45 mm to 52 mm. WLL: 500 kg
Colour: Black
Material: Structure: Steel / Coupler: Aluminium
Application: Aluminum trusses and structures
