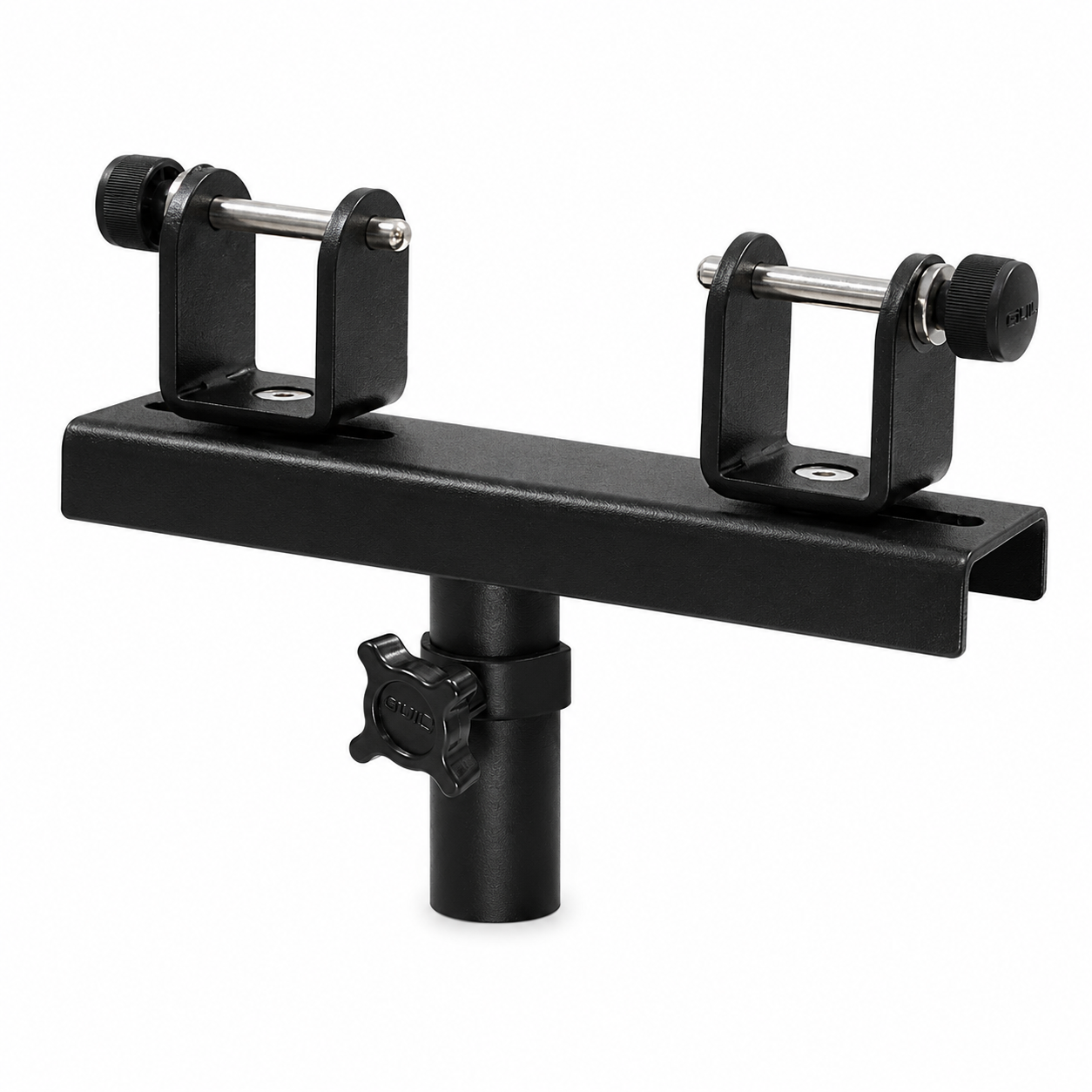

Brand: Guil
Model: ADT-40
Type: Aluminum truss adapter
Description:
Adjustable truss adaptor with a Ø 55 mm insertion spigot ending.
– Its adjustable design allows it to be used with different size truss: from 200 mm to 300 mm.
– The “U” pieces where the trusses are rested are swivelling, this way the truss can be fitted to the adaptor in any required position offer professionals multipile set-up possibilities.
– The adaptor comes with the RC-100 locking bolts (10 mm stainless steel bolts with a neodymium magnet; a very practical feature to reduce losses of the same). Note: They can also be provided with a steel conical spigot and R-spring if preferred.
– The adaptor is manufactured in a “U” shaped steel profile that is 5mm thick for a stronger and more stylish finish (non-deformable). Rounded edges giving a smooth finish preventing damages or injuries (no sharp edges).
– The Ø 35 mm ending has a square strengthening ferrule which removes the possibility of the top tube of the tower being damaged due to horiztonal forces.
– The adaptor is secured to the tower using a metallic ergonomic knob.
– It has a textured, black, anti-scratch finish.
Suitable for towers Ref. ELC 700 and ELC 710
Technical characteristics:
Net weight: 2.45 kg
• Adjustable: Yes
• Swivelling: Yes
• RC-100: Yes
• For trusses: From 200 to 300 mm
• Ending: Ø 55 mm spigot
• Colour: Black
• Material: Steel
Application: Stage lifting towers, aluminum trusses
