Brand: SEÑOR

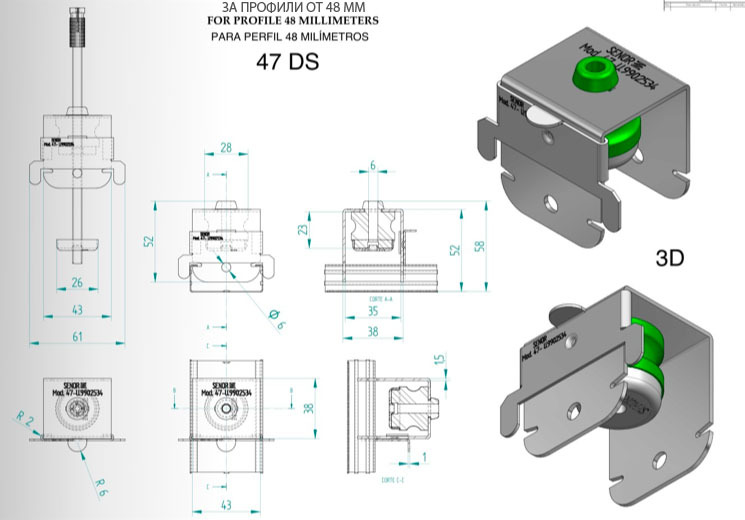

Model: 47 / DS

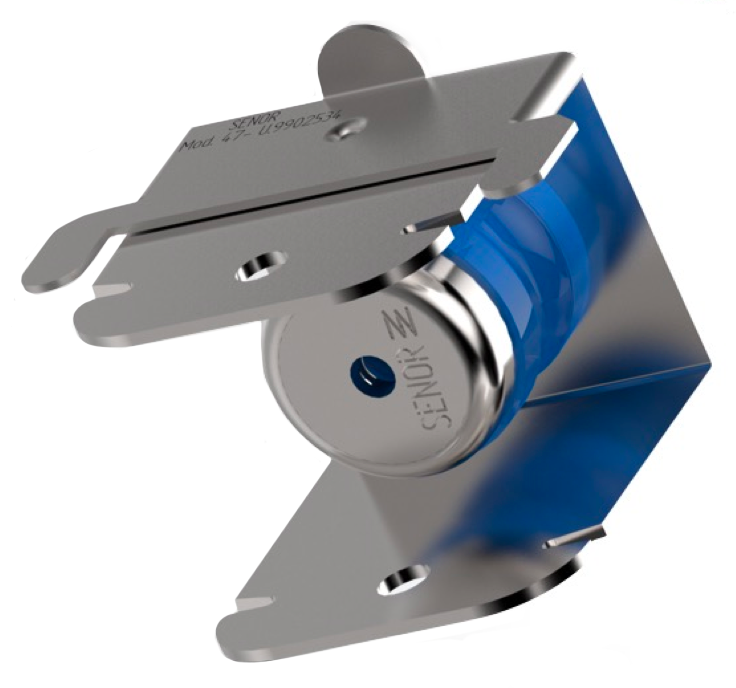

Type: Hanger for floating floor
Description:

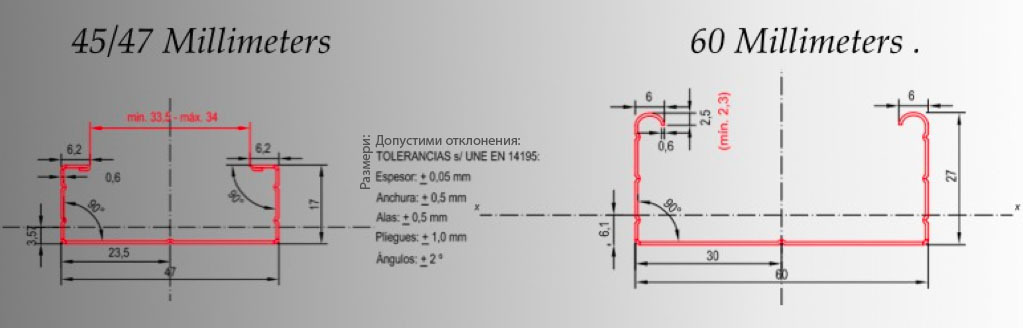

Model for profiles 45/47 mm. The model is designed with acoustic insulating arms made of high quality polymer with high resistance (MEGOL - IA30 and 35 C-UG / UVI F / 61 - P1250SPE). According to UNE EN 13964.
With the most advanced safety system.
With incredible acoustic performance (for noise and vibration).
Patented product.

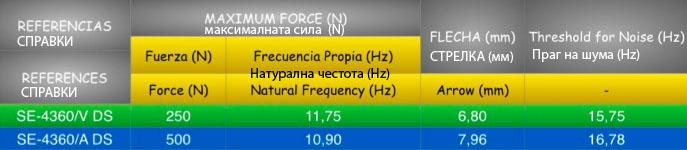

Mechanical and load capacity:
Polymeric materials that have used the product its elastic limit, max 560N. but all metal parts (due to system safety DS) perceived load over 3300N. In this part, the acoustic hanger is separated from the perfil.
Application:

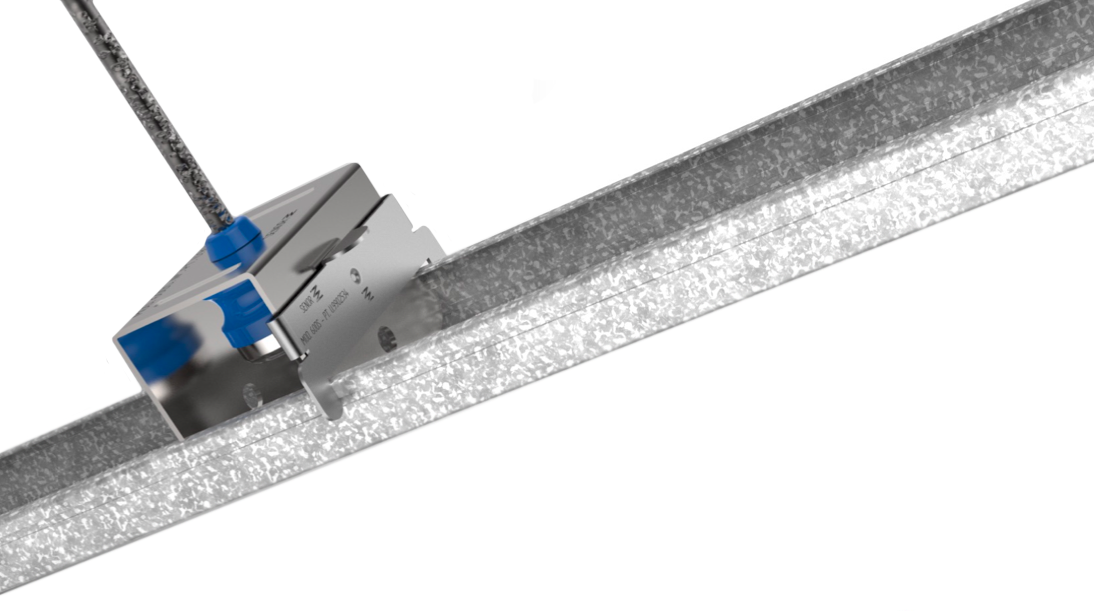

Suspended acoustic ceilings, through profiles 47/17, T-47.
Color: blue or green.
Green (optimal load 17 kg to 25 kg)
Blue (Optimal load 35 kg to 45 kg)
Safety device:
Modern and extremely easy to use protective device that only activated by pressure from a finger.
The protective device ensures load of more than 3000N.
SENOR is committed to your safety. Avoid "domino" effect as you assemble your installations with products SENOR.

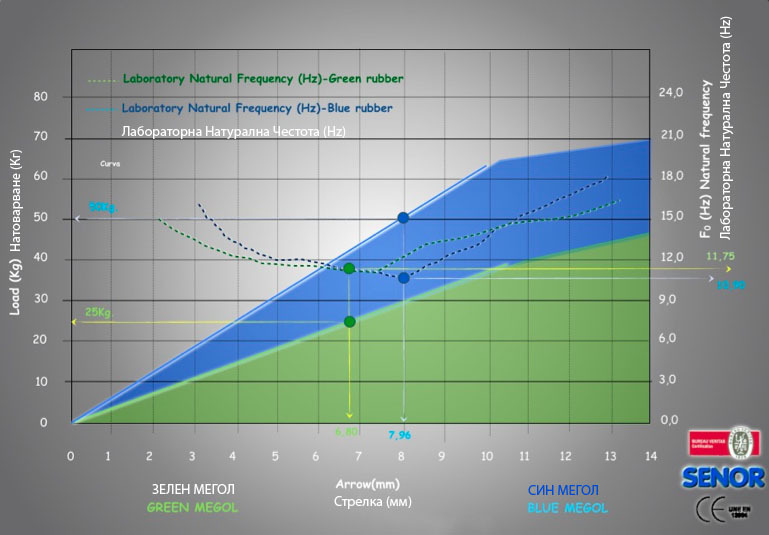

To select an acoustic hanger is necessary to know the following information:
- The weight that is applied to the hangers.
- Vibration measured in Hz
Optimal life:
30 years after the product is installed in a closed environment and materials are not directly exposed to sunlight or other external agents.
Storage:
Be stored in a clean, flat surface protected from sun and rain. Never outdoors.
Details of assembly:
Use the installation manual Señor.
SEÑOR reserves the right to modify technical specifications.
advantages:
patented safety system
different colors according to the load
easy installation
not necessary auxiliary components (screws, rivets etc .............
Aplication: Drywall
