Brand: GUIL
Model: ABZ-50/E-N

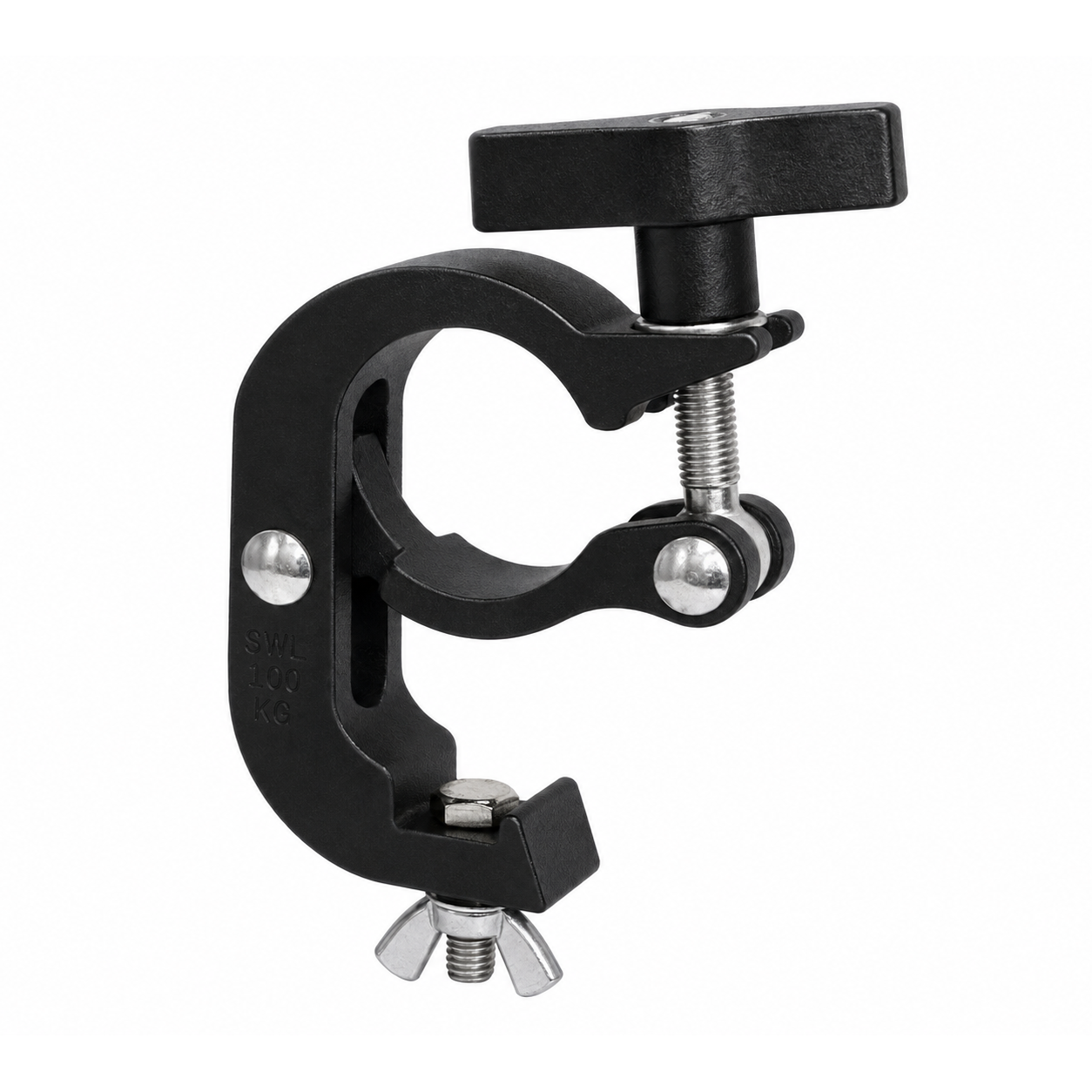

Type: Selflock trigger clamp
Description:
Made in aluminium. Black finish. Includes wing nut & bolt & ergonomic knob.
Aluminium selflock trigger clamp with wing nut and bolt and ergonomic knob. Designed to be used on trusses / tubes with an external diameter from 46 mm to 52 mm.
Its thinner design, compared to the ref. ABZ-50/N, makes this clamp perfect for installations where the space where the clamp is to be fixed is limited, for instance on smaller decorative truss.
The large ergonomic securing knob makes the installation quicker, as thanks to this larger knob it is easier to tighten.
Substituting the nut and bolt for any other fixture it can be used for other functions. Our quick trigger clamp ref. ABZ-50/E-N, combines strength and durability with a high level of safety.
Technical parameters:
Maximum Load: 150 kg
Measures: 175 x 103 x 25 mm
For tube diameters: 46 to 52 mm
Width: 30 mm
Fixings: M10 x 30 with wing nut and washer
Colour: Black
Net Weight: 0,45 kg
Application: Designed to be used on trusses / tubes with an external diameter from 46 mm to 52 mm.
