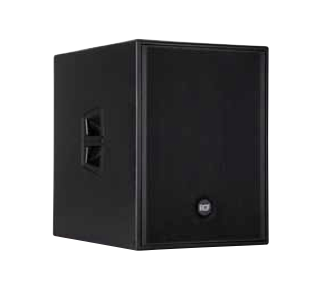

Brand: RCF
Model: 4PRO 8003-AS
Type: Active bass speaker
Characteristics:
Powerful 1000-watt digital amplifier
134 db SPL max
18 'Powerful woofer, 4 "voice coil
Xover 80-120 Hz switch, phase switch
Electronic equalization, limiter and protection
Mono / stereo combo xlr / jack input, Mono / stereo xlr signal output
Compact body of birch and two side handles for easy portability
Ability to adjust, PFC power
Acoustic specifications

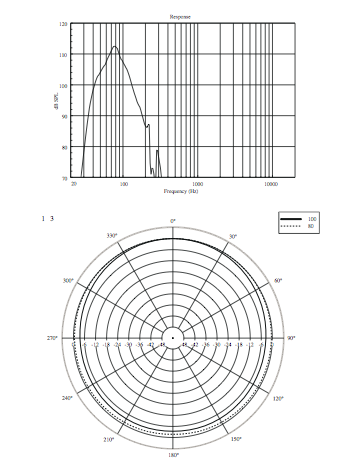

Frequency response: 40 Hz - XOVER River.
Max SPL: 134 db
Horizontal viewing angle: -
Vertical viewing angle: -
Compression Driver: -
Midrange: -
Woofer: 18 "100 mm voice coil
INPUT SECTION
Input connector: stereo in. XLR-jack
Output Connector: stereo XLR
Input sensitivity: -2 DBU / 4 DBU
PROCESSOR SECTION
Crossover frequencies: 80-1200 Hz
Protections: thermal, RMS
Limiter: Dynamic limiter
Controls: volume, XOVER, phase
AMPLIFIER
Power: 1000 Watts
High frequencies: -
Mids -
Low frequencies: 1000 Watts
Cooling: Convection / Forced
Connection: PowerCon
Physical
Height: 700 mm
Width: 520 mm
Depth: 700 mm
Weight: 49 kg
Cabinet: Baltic birch
Hardware: -
Handles: 2 countries
Color: Black
