Brand: CNLINKO
Model: LP-20-C02PE-01-022
Type: Power supply waterproof connector with 2 pins

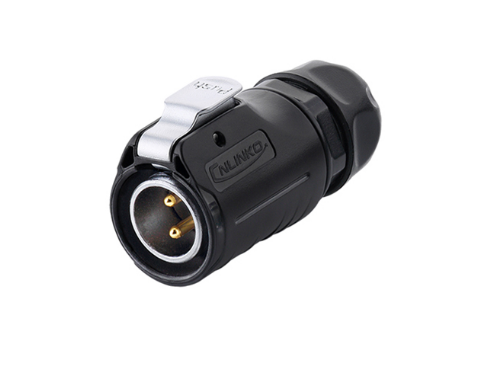

Description: Cnlinko LP-20-C02PE-01-022 2-pin male power cable connector is designed for mounting a wire with a diameter of 14-12 AWG. The nominal values of voltage and current are for 500V and 20 A. Made with self-locking connection and easy release. Ideal for applications such as audio / visual equipment, medical devices, testing and measuring equipment, as well as for industrial control.
- Reinforced lock
- Zinc alloy spring lock
- Multi-core design
- Gold-plated contacts for greater corrosion protection
- PBT shell
- Resistant to high temperature and pressure
- IP67 protection when connected
Technical characteristics:
Series: LP / M20
Number of Pins: 2 pins
Rated Current: 20A
Operating voltage: 500V
Peak voltage: 2500V
Contact resistance: <1mOhm
Compatible with connector: LP-20-J02SX-03-401
Insulation resistance: >500 MО
Temperature rise: 20A contact temperature below 30 ° C, 25A below 40 ° C, 30A below 50 ° C
Wire diameter range: 14-12 AWG
Cable specification: Ø8-Ø12mm
Contact diameter: 2.7 × 2 mm
Contact type: male
Durability: ≥1700 coupling and subtraction cycles
Torque: 42-53 (N.m) torque wrench200 (N.m)
Resistant assault: 294m/s²
Test results with anti-corrosion salt spray: PH 6.5-7.2, NaCL, 5% 48H
Vibration: Frequency 5-200Hz, Amplitude - 5mm, speed 10m / sec, 0.10us no instantaneous circuit break
Protection: IP67 when connected
Flammability rating: UL94-V0
Certificates: TUV and UL
Wire installation: soldering
Operating temperature: -40ºC to 80ºC

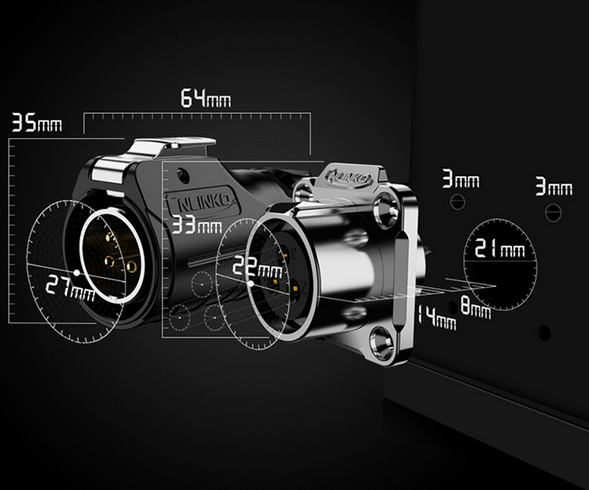

Dimensions: 65 mm length x 35 mm height x 27 mm width
Weight: 46g
Material:
Insulated parts: High-performance engineering plastic
Metal part: zinc alloy (pearl hard chrome)
Contact pin: Copper alloy
Waterproof ring: Silicon gel
Application: audio/visual equipment, medical devices, testing and measuring equipment, industrial control.
