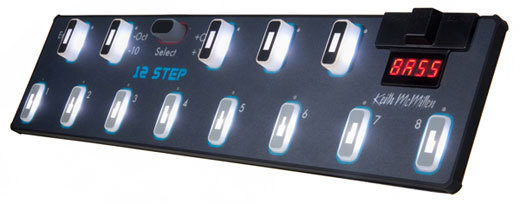

Brand: Keith mcmillen
Model: 12 STEP
Type: Chromatic foot controller
Description:
Road Proof
Durable by design. 12 Step has been tested to survive spills, 2-story falls, and being run over by a van.
Smart Fabric
12 Step's keys feature a smart fabric layer that responds to the velocity, pressure and tilt of your foot.
Playable
Perfect for playing bass lines, chords, triggering clips, or any other musical accents that fit your style.
Technical Specifications
Controllers
13 keys with pressure and tilt (Y-axis) sensitivity
1 function button
LEDs & Display
14 red indicator LEDs
4 character alpha-numeric display
Dimensions
450mm x 105mm x 24mm
Weight
0.59kg
Connections
USB connector
Mini-USB connector
Power Source
USB bus power
USB power supply (not included)
Power Consumption
~150mA max draw @ 5V
Included Accessories
USB cable (5m, USB 2.0)
Data Transmitted
Class-compliant MIDI over USB
MIDI over 5-pin DIN (via KMI Expander)
System Requirements (Mac) (Software Editor)
Mac OS 10.5 or later Intel Core 2 Duo processor or greater 50MB free hard disk space
System Requirements (Windows) (Software Editor)
Windows 7 or greater Intel Core 2 Duo processor or greater 50MB free hard disk space
Application: DJs, Live Performers.
