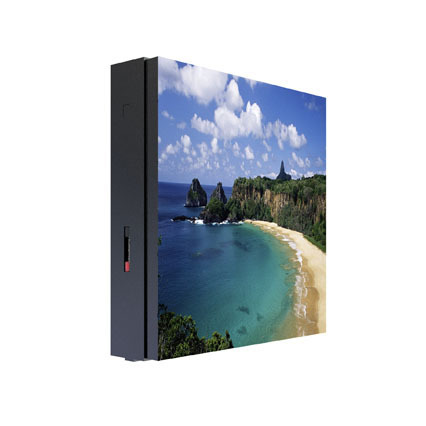

Outdoor LED Display P8

Brand: LED SPEKTAR

Model: PH8

Type: Outdoor LED Display

Description: The external LED displays offered by LED SPEKTAR are unique design, precise and stable production of high brightness and frequency, which ensures crystal clear picture of the picture. The use of first-class LED chips brands SILAN and EPISTAR which ensures long life of LED display and clarity even in direct sunlight. There is a choice of revision modules from both front and rear. The return on investment is fast due to their widespread use.

Characteristics:

Diodes:SMD3535

Light Intensity:
1000 - 1100cd (Red, Epistar) / 120 ° - 60 ° / 620 - 630nm
2500 - 2800cd (Green, Epistar) / 120 ° - 60 ° / 520 - 535nm
350cd (Blue, Epistar) / 120 ° - 60 ° / 465 - 475nm

Modular Specifications:

Pixel Pitch: 8mm (246 diodes)
Configuration Pixel: 1R1G1B
Resolution of modules: 40 x 40 points
Pixels Module: 1600 pcs.
Module size: 320mm x 320mm
Weight of unit: 2.2 kg

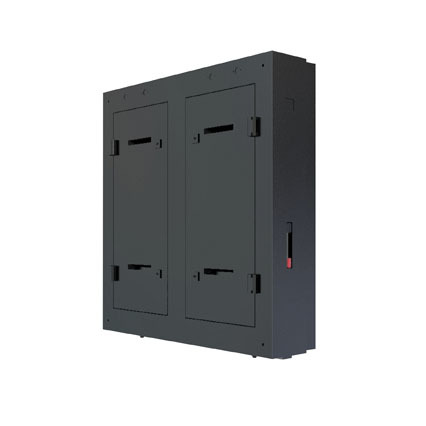

Specifications Cabinet:

Cabinet Size: 960 x 960 mm
Resolution of the Cabinet: 120 pcs. X 120 pcs. 14,400 points =

Pixel density: 15625 pixels / m²

Average power consumption: 220W / m²

Maximum power consumption: 680W / m²
Material: Iron
Weight of cabinet: 50 kg

Parameters screen:
Screen resolution: 600 x 360 points = 216 points, 000 points
Brightness: ≥7500mcd / m²
Brightness (Max. / Min.) 1: 2: 1
Driving method: 1/8 scan same current
Viewing Angle: 120 ° / 60 °
Optimum viewing distance: 8-80m
Brightness control: Red, Green and Blue 256 / each
Refresh rate: ≥1800Hz
Frame rates: 50-60 Hz

Voltage: AC220V / 50Hz or AC110V / 60Hz
Driving IC: MBI5020B
Operating temperature: -40 ° C ~ + 60 ° C
Operating Humidity: 10% ~ 95%
Management System: Nova
Power supply: Meanwell
Operating System: Windows98 / me / 2000 / NT / XP

Application: Outdoor public and private companies, tourist, sporting, cultural and commercial sites, casinos and amusement parks and other multifunctional spaces.
