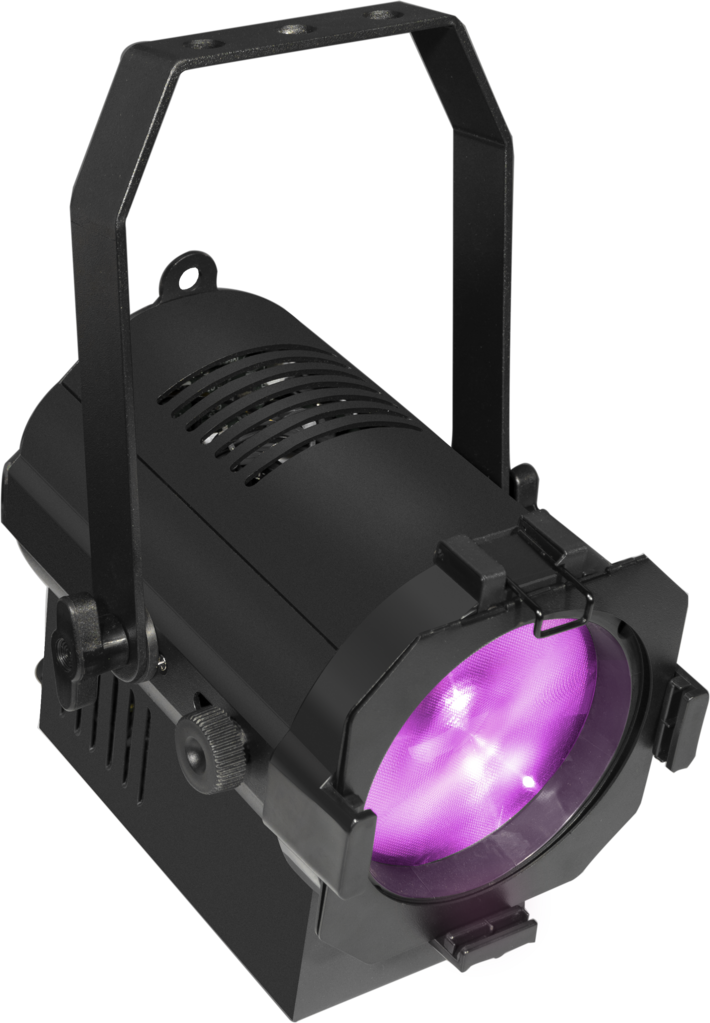

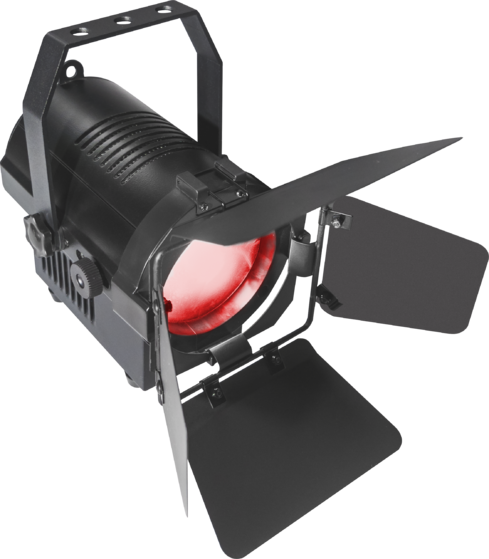

Brand: OEM
Model: MINI FRESNEL 40C ZOOM
Type: Theatrical Fresnel floodlight
Description: Theatrical mini fresnel floodlight powered by a 40W RGBW LED.
Basic functions:
• RGBW uniform color mixing
• 25-80° manual zoom
• Smooth dimming, no flicker
• Super compact, easy to set up
• Rotary, key, DMX dimmer control
• DMX-RDM compatible, 4 dimmer modes
• 4-wing rotary covers included
• Option to choose a rail mount version
Technical characteristics:
Power supply: AC100-240V, 50/60Hz
Light source: 40W LED
Color temperature: 3000K - 8000K
Zoom range: 25° ~ 80° manual

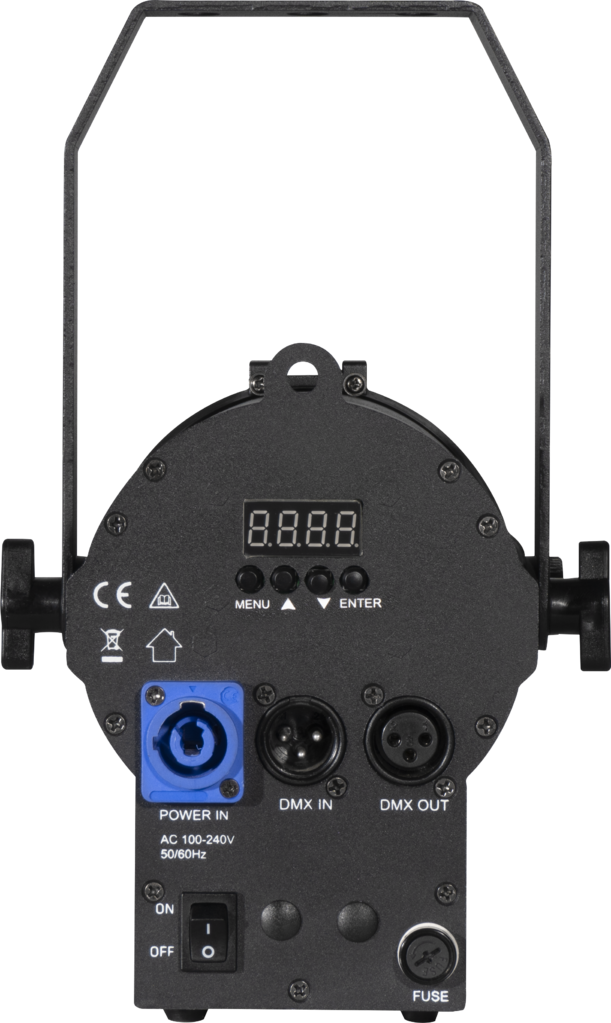

Power connection: PowerCON in
Fuse: F1A, 250V
Signal connection: 3-pin XLR input and output (5-pin optional)
DMX channels: ARC.1(3CH), AR1.D(4CH), ARC.2(4CH), AR2.D(5CH), AR2.S(6CH), HSV(3CH), STAG (11CH) STAG (11CH )
Dimmer speed: 4 steps
Control mode: RDM, DMX, Master-slave
Body: Color black, Aluminum
Size (without cover door): 230 x 156 x 279 mm
Packaging (carton): 270 x 210 x 210 mm
Net weight: 1.7 kg, including the cover door
Gross weight: 2.8 kg

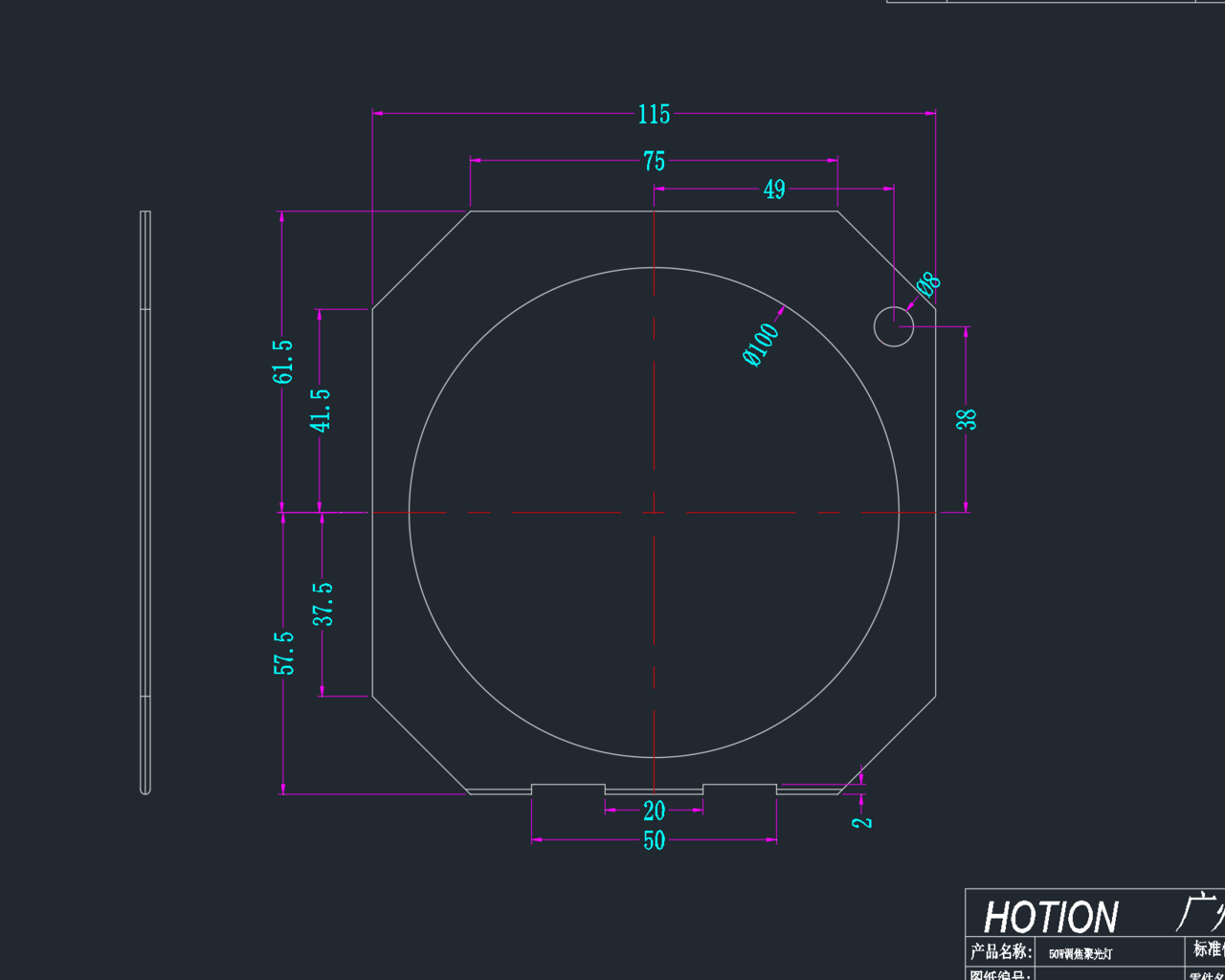

Accessories: power cable, color filter frame, covers
Bracket Option: Ask to select the appropriate bracket and Safety Rope!

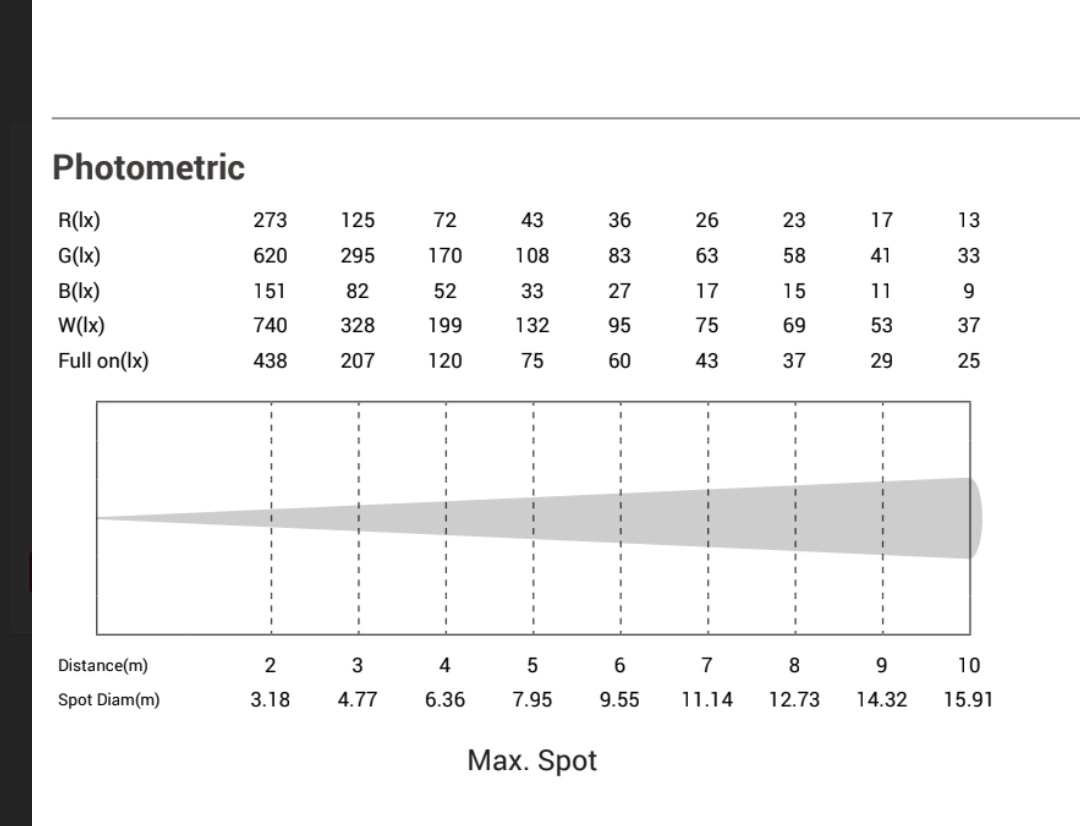

Photometric data; See diagram!
Conformity: CE
Protection: IP20
INSTALLATION
Mounting: Adjustable clamp
Location: Indoor use only
Orientation: Any
Application: Small and medium-sized theaters, schools, for stage lighting.
