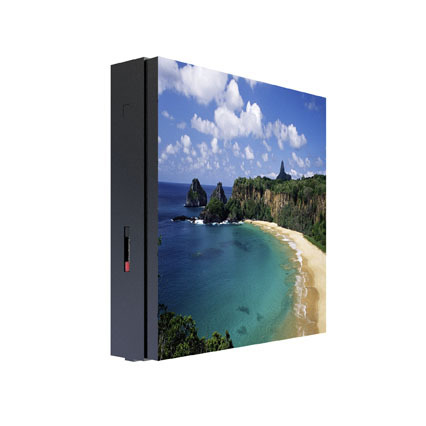

LED outdoor display PH6 SMD 3in1

Brand: LED SPEKTAR

Type: LED Outdoor Display P6

Model: Outdoor SMD 3in1

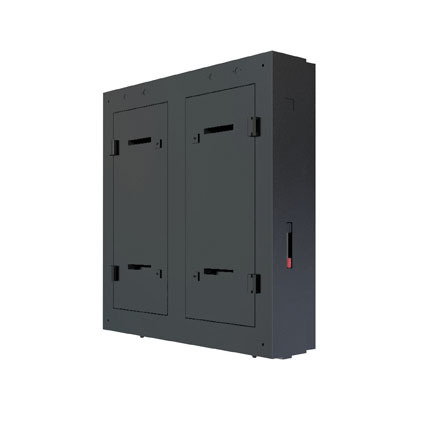

Description: The company LED SPEKTAR LTD uses for its external and internal LED Display installations cabinets with cast aluminum housing which are super thin and light with bilateral degree of protection IP65. With Fastlock for quick, easy and cost saving installation. With support of all media formats. The new design allows direct tuning and calibration of brightness for high quality picture even directly faced to the sun. Ideal for shopping malls, supermarkets, hospitals, banks, exhibitions, hotels, airports, sports facilities, TV formats and other multi-functional spaces.

Note: The price for cabinet with dimensions of 864 * 864 mm

Characteristics:

Pixel Pitch: 6mm
Pixel density: 27778 pixels / ㎡
Wavelength of LEDs:
Red: 622-627nm
Green: 522-525nm
Blue: 463-465nm

Gray Scale: 16bits
Viewing Angle: 140 ° / 140 °
Brightness: 5000 cd / m2
Methods of management: 1/6 scan

Opening the cabinet: Front
Refresh rate (Hz): ≥ 1000Hz
Frame Rate (Hz): 60Hz
Module Size (mm): 288 x 288 mm
Module Resolution (pixels): 144 * 144 pcs
Size of cabinet (mm): 864 * 864 mm
Display Resolution of the Cabinet (pixel): 1152 * 144 pixels
Most good viewing distance: 6-100m
Material of cabinet: Optical Steel
Cabinet Weight (kg): 50 kg / office

Voltage (V): 88-132VAC / 176-264 VAC; 47-63Hz
Max. Power consumption: 1800W / m
Medium (normal) Power consumption: 720Wkv.m
IP degree: 65
Temperature / humidity during operation: -20 ℃ ~ 65 ℃ / 20% ~ 90% RH
Temperature of the storage / humidity: -40 ℃ ~ 85 ℃ / 10% ~ 95% RH
Life (Normal Temp):> 100,000 hours
Control: Linson/Novastar
Connecting cables: CAT5 (≤100m); Optical cable (500m-15000m)
Image types: text, graphics, logos, animation and video

Application: Sports arenas, casinos, shows, TV formats, concerts, outdoor advertising of government offices and private companies, airports, railway stations, bus stations, information boards

Application: Rental events, mobile media, outdoor advertising, stadiums, banks, shopping centers, airports, train stations, information centers.
