Brand: LED SPEKTAR
Model: P4
Type: LED Video Wall
Price: The price is for 1м²
Characteristics:
Diodes:
Light Intensity:
- 700-800mcd (Red, Silan)
- 900-1050mcd (Green, Epistar)
- 280-300mcd (Blue, Epistar)
Viewing angle: 120º - 120º
Wavelength LEDs:
- Red: 620-630nm
- Green: 520-535nm
- Blue: 465-475nm
Characteristics of the module:
Pixel Pitch: 4 mm
Pixel configuration: 1R1G1B (3in1)
Resolution of the module: 60 dots x 60 dots
Modular pixels: 3800 dots
Module size: 240mm x 240mm
Weight unit: 1.15 kg

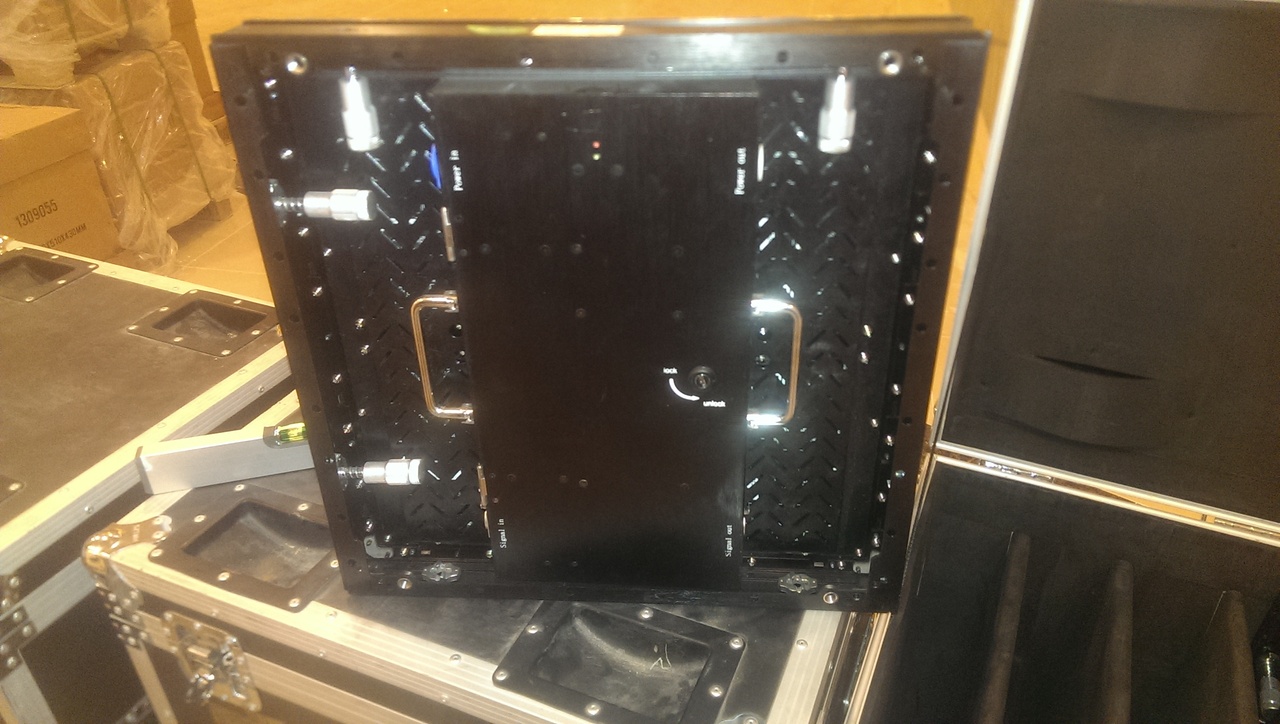

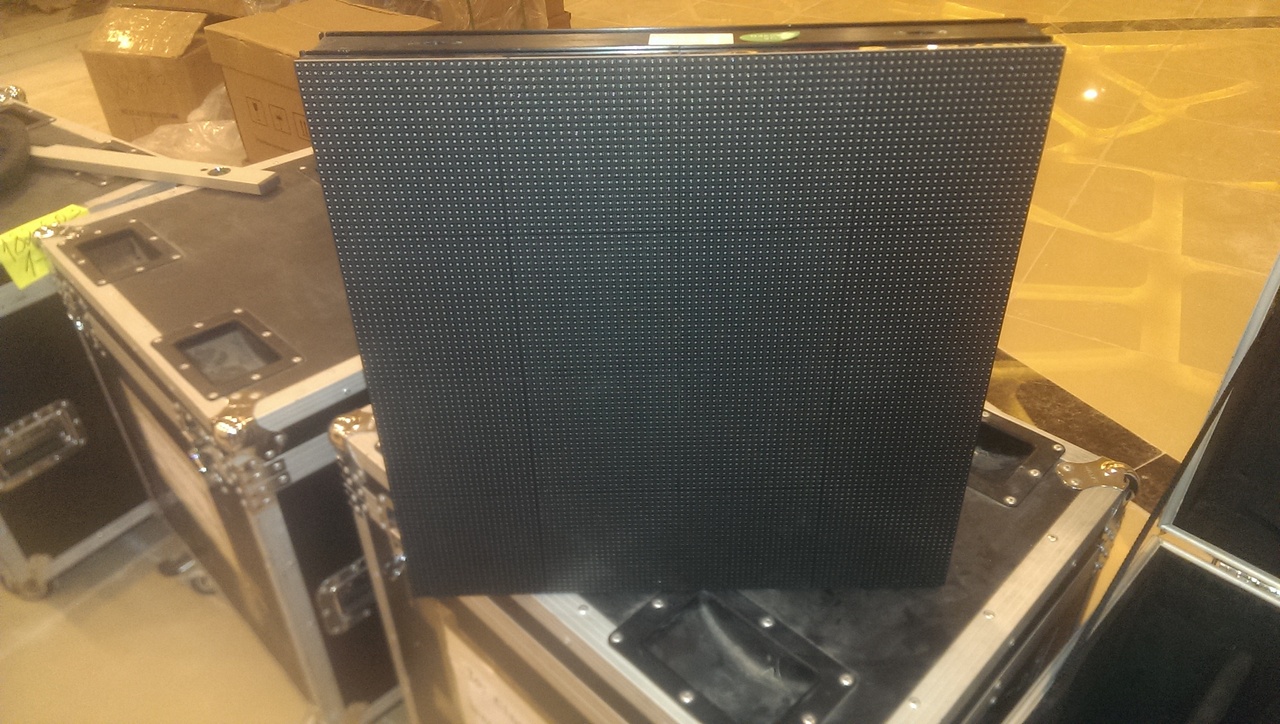

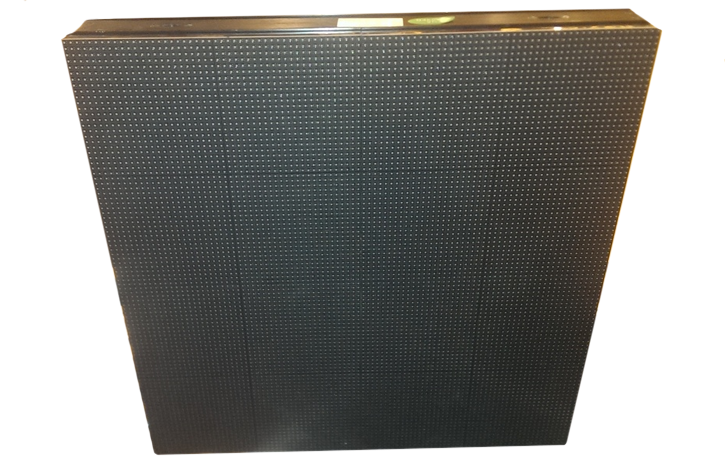

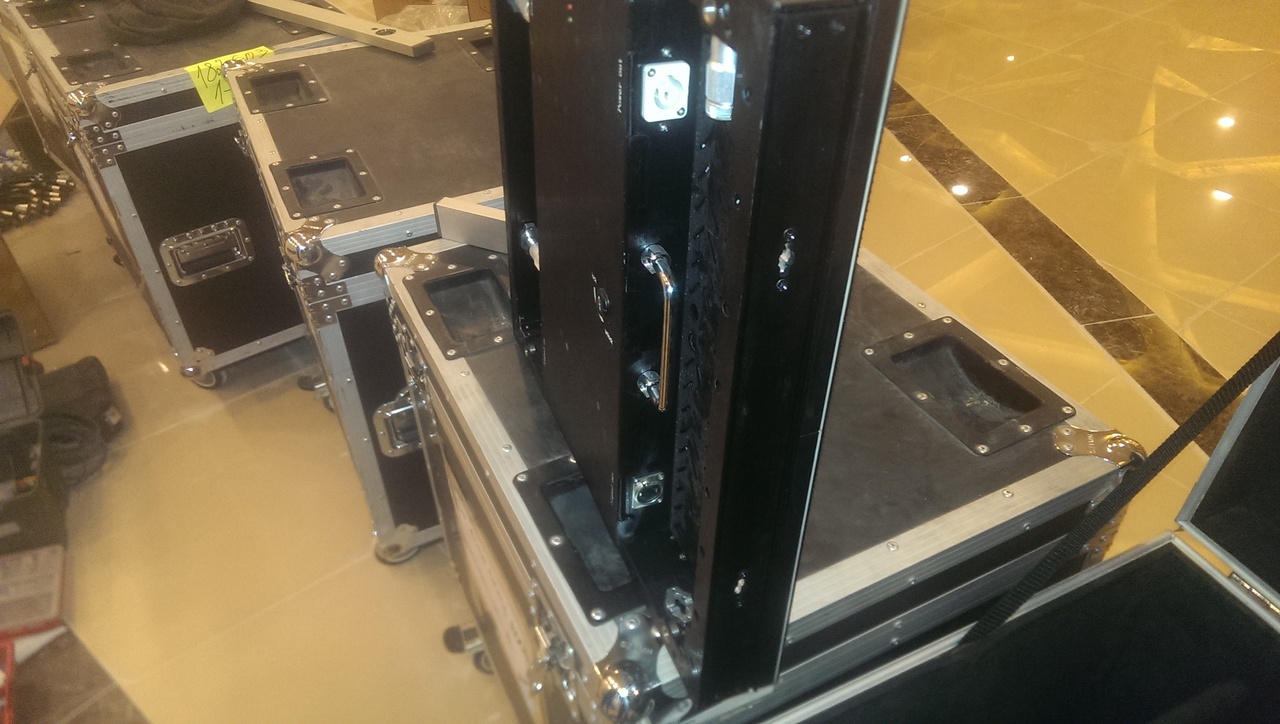

Specification of the Cabinet:
Size of the Cabinet: 480 x 480 x 85 mm
Resolution of the Cabinet: 120 dots x 120 dots
Number of modules in one cabinet: 4
Pixels of cabinet: 14400 dots
Pixel density: 62500 dots / m²
Average power consumption: 220W / m²
Maximum power consumption: 610W / m²
Material: Cast aluminum
Weight of cabinet: 8 kg

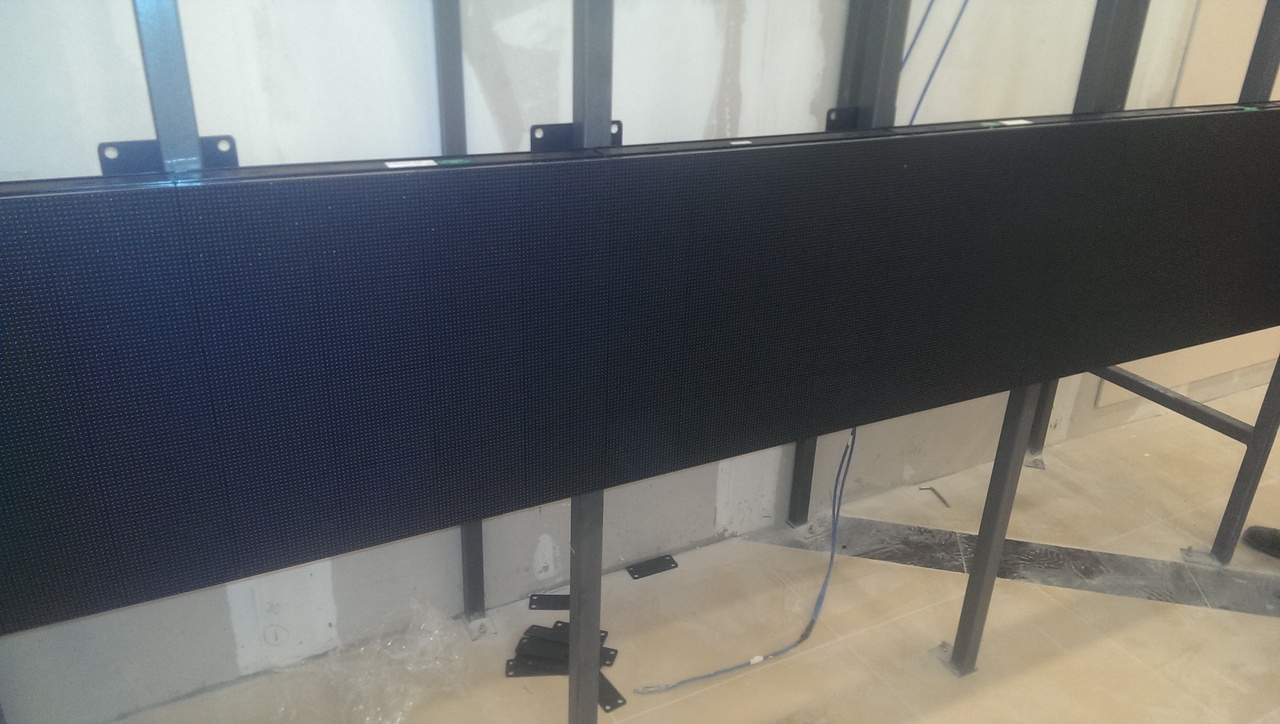

Application: Indoor installation
Color | RGB |
---|---|
Viewing Angle | H 120°, V120° |
Resolution of the module | 60 x 60 |
Pixel density per sqm | 62 500 /sqm |
Installation type | Fixed |
Control | Electronic control |
Certificate | RoHS, ISO |
