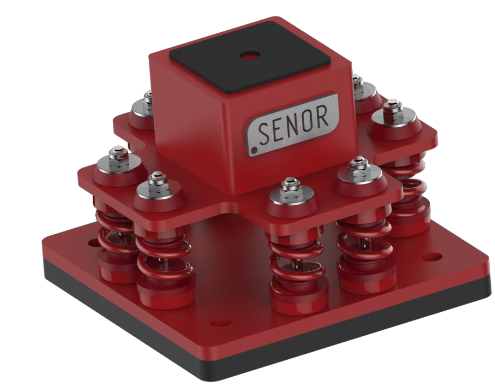

SE-EIGHT-TBF 1000 R

Brand: Senor

Model: SE-EIGHT-TBF 1000 R

Type: Vibration damper

Description:Never before has a HYBRID shock absorber been so close to be nearly perfect (sophisticated beauty, maximum performance,safety and quality). SENOR has made it possible applying the

latest technologies in the sector “Vibro-mechanics”.The Mod.EIGHT TBF; They are ANTI-ROLL shock absorbers designed for the protection of machinery against vibrations shock and blows in the range of low, medium and high frequencies Hz. (Recommended for equipment that works from 450 rpm on).
It is a shock absorber in its most advanced form. To create this new line of shock absorbers we have needed a large dose of imagination and technological innovation. More than redesigning them we have reinvented them inside and out, taking a turn towards elegance. The result is an incredible all-in-one shock absorber, a work of art combined with a touch of engineering that lives up to its proven effectiveness.

They are third generation HYBRID shock absorbers with higher concentrated performance.This new product range incorporates one of the most advanced security technologies. “8 axes of stainless steel independent of the core”. It allows restrict degrees of freedom and improve compression axial of the helical system. It also provides a better settlement on account of the polymers of its ends and prevents the equipment from coming loose due to extreme weather events such as: hurricane winds,powerful storms and small earthquakes, etc ...

HYBRID SYSTEM: It is a combination between a metallic steel spring according to DIN 2095-UNE EN 10270 with EPOXI treatment and two polymers renewed (KRAIBURG-TPE) one at each end from the spring.

System tested according to UNE-EN ISO 10846-1:2009.Vibrations can now be reduced across the entire range of excitatory frequencies. The combination of these two elements make it possible to market one of the best shock absorbers of the year.

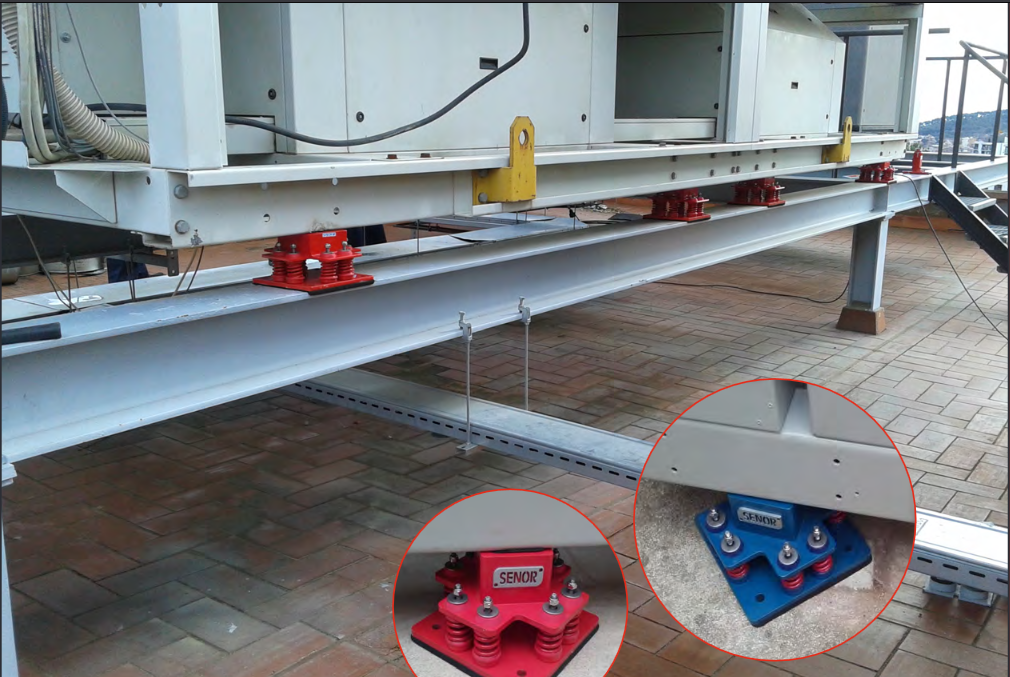

Type of Machines: Designed to support on the ground providing Performance and Security. It is conceived to precision machines such as lifts, condensers, transformers,fans, air handling units, air conditioning units,pumps, etc.Either through benches or their direct installation on the system to be isolated.As a rule, the centre of gravity of the units climate does not usually coincide with its geometric centre. If we look closely, this type of machines have different components inside, such as: compressor, condenser, controls,pipe connections, fans, etc.

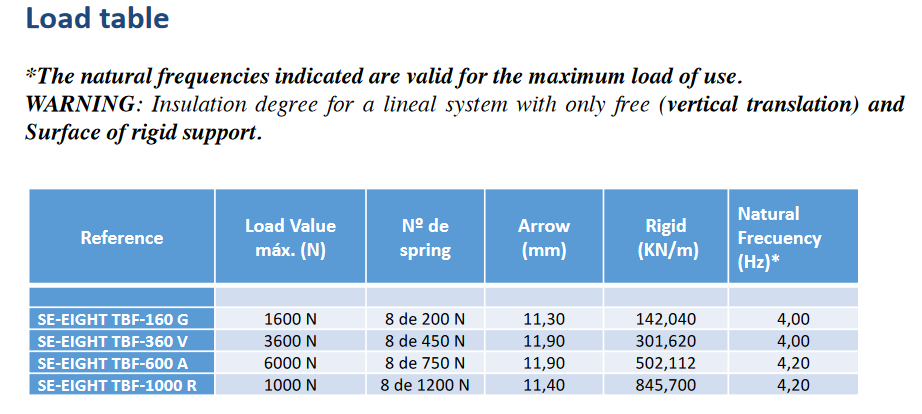

It turns out that the heaviest parts are usually in one side of the equipement, reaching 70% of the total weight of the unit. Therefore, we should not place the same type of shock absorber in each of the support points.Taking into account that we obtain the degree of isolation as a function of the elastic support constant and this depends, in turn, on the axial compression of the shock absorber, that is the reason why the EIGHT model TBF / ANTI-TIPPING has 4 hardnesses defined both by its colour as by its load range in Kg.

HYBRID SYSTEM / FIRE PROTECTION:“Ref. EIGHT TBF”According to the ISO 834 temperature-time curve. The EIGHT-TBF shock absorber complies with the fire resistance section as a mechanical
fixation. (Standard UNE 37-507-88).Thanks to its “ANTI-TIPPING” locking device made up of 8 solid stainless steel rods covered by an elastic protective polymer.This renewed plastic polymer (KRAIBURG-TPE),allows separating the shank from the carbonsteel plate, increasing the damping of the system.In addition, the steel rods provide a greater security against fire. After the flames come
into contact with the shock absorber the most vulnerable parts of the same are the polymeric ones (KRAIBURG-TPE). These parts will disintegrate due to the high temperatures, at which point the locking device (8 solid steel rods) will come into action, preventing the shock absorber from separating from the machine.
