SE-6050-A/M8 DS

Brand:Senor

Model:SE-6050-A/M8 DS

Type: noise and vibration isolator for ceiling

Description:

Simply bigger, NEW "60M/DS".

IT INCORPORATES THE MOST ADVANCED BLOCKING DEVICE OF THE MOMENT.

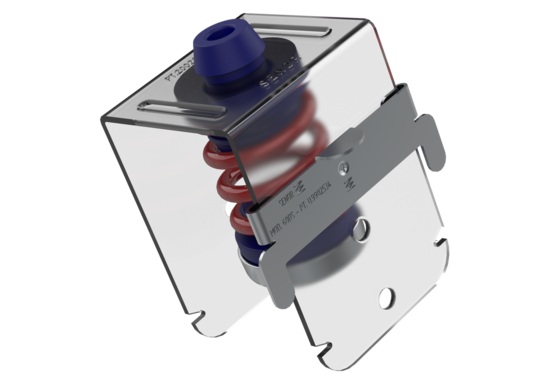

They are hybrid last-generation isolators for 60 millimeters profiles. They combine a helical spring along with an innovative product "MEGOL". "Exclusively Manufactured by Us".

This juxtaposition allows us launching to the market the best isolator of the moment, eradicating thus pollution by vibro-mechanical energy in the whole range of exciter frequencies. They are ideal for all type of acoustic solutions.

Available COLORS: (GREY, GREEN, BLUE & RED)

• GREY:  Recommended for loads between 3Kg up to 20Kg as maximum load.

• GREEN: Recommended for loads between 15Kg up to 45Kg as maximum load.

• BLUE:  Recommended for loads between 35Kg up to 75Kg as maximum load.

• RED:  Recommended for loads between 65Kg up to 120Kg as maximum load.

RESONANCE frequency: 3 - 7 Hz.

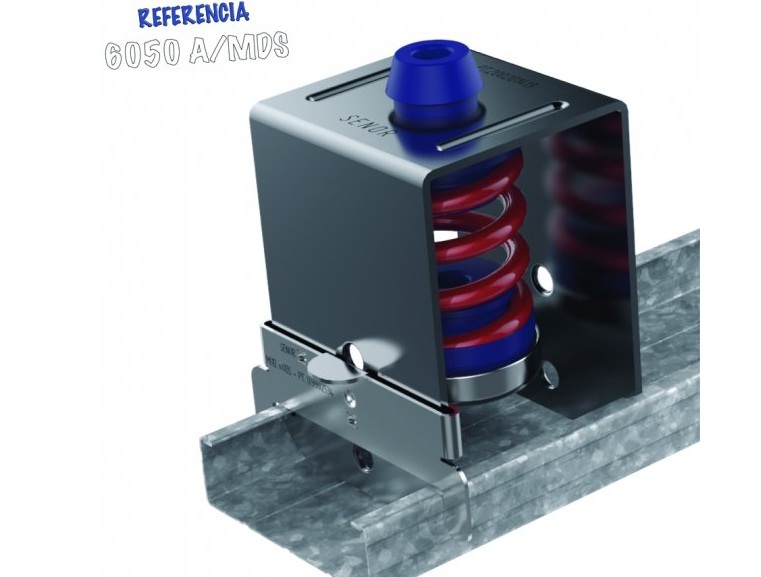

APPLICATION FIELD: False acoustic ceilings using profiles for supporting laminated plasterboard type MAESTRA 6027 / TC-60 / RIGI-60 or similar.

AVAILABLE REFERENCES IN METRICS 6 and 8:

• SE-6025 V/MDS-M6.                   *SE-6025 V/MDS-M8

• SE-6050 A/MDS-M6.                   *SE-6050 A/MDS-M8.

• SE-6075 R/MDS-M6.                   *SE-6075 R/MDS-M8

*Products marked with * are in metric 8.

DS: It incorporates only one blocking device.

Application: acoustic ceilings made of plasterboard
