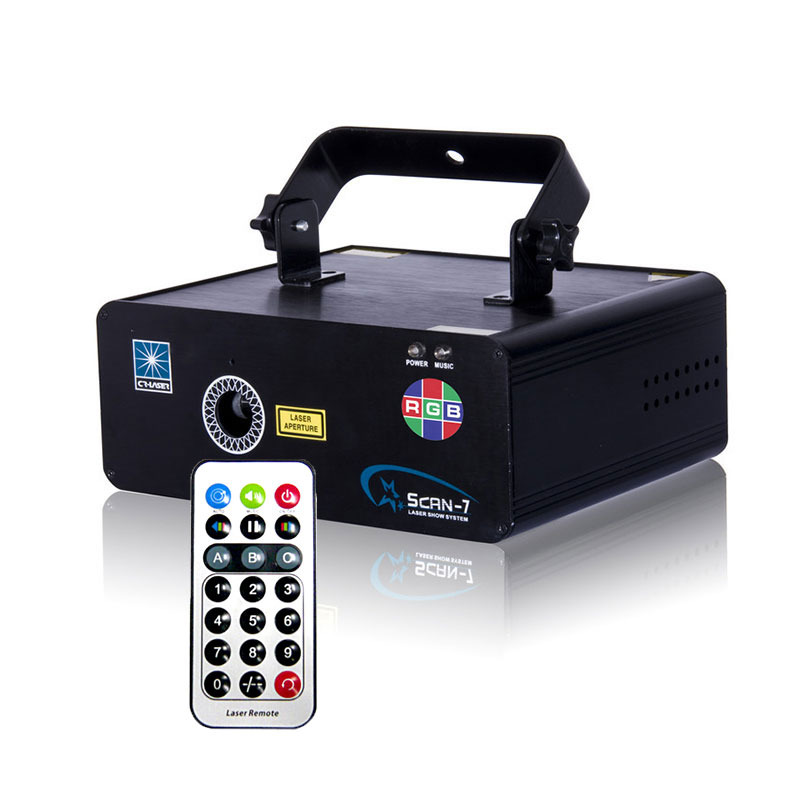

RGB animation laser SCAN 7 (620 mW) CR TEC

Brand: CR TEC

Model: RGB SCAN 7 (620 mW)

Type: Animation RGB laser

Description and function of the laser:

Professional quality animated RGB laser clubs and mobile DJ and 4 built shows multiple animations rays, graphics, etc. Combining three powerful lasers (red, green and blue) with high-speed scanners Scan-7 RGB 620mW produces a rainbow of colors and stunning effects, animation, antennas and others. It uses new '' multi-thread "of SCM control technique that allows the laser fantastic models, and can control up to 17 DMX channels. One of the nicest features is the free wireless remote control. There are more than 80 templates that include animated models, numbers, networks, waves, wheels, points and can be manipulated in a swirling, point, stretch and zoom movements via DMX protocol.

Specifications:

Voltage: AC 100-240V 50Hz / 60Hz

Mix power: 620mW

Power Red Laser: 120mw

Blue laser power: 400mW

Green laser power: 100mW

Wavelength red laser: 638nm

Wavelength blue laser: 455nm

Wavelength green laser: 532nm

Scanner: High 25Kpss

Monitor: LCD monitor control

Advantages: Smart and easy navigation control system of the digital control panel by pressing. Built-in automatic control.

Control modes: 4 modes Auto Play, Auto Show, SOUND Active, DMX MODE, Master / Slave, Remote control, XY corrections and output size by DMX.

DMX channels: 17 channels

Rated power: 50W

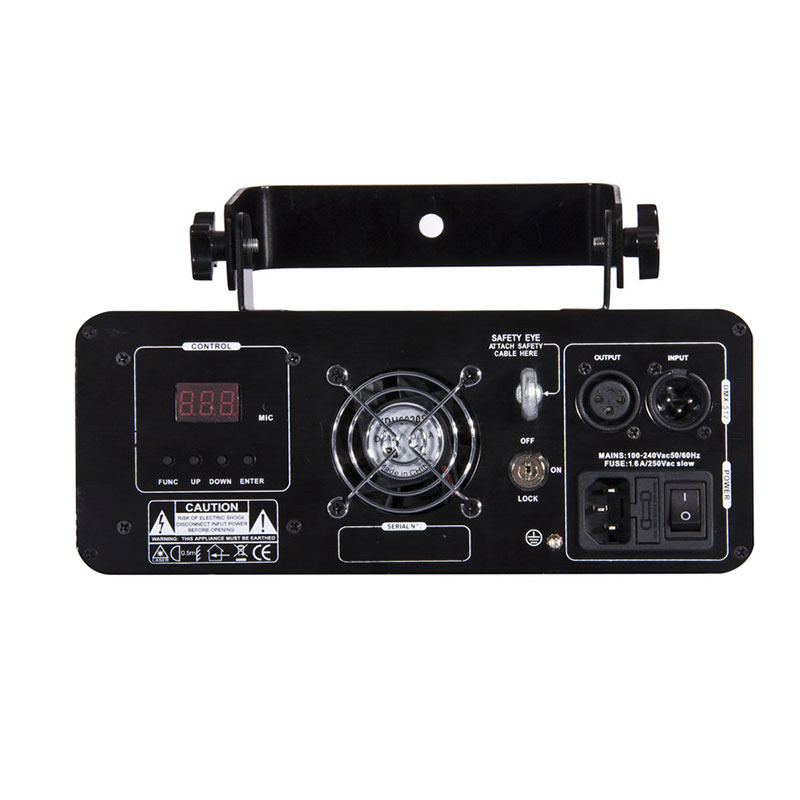

Interface: 3 pcs. XLR Male / female for DMX link

Standard Laser Safety: EN 60825-1 2007

Safety class: Class 3B

Operating environment: 10-40 °

Dimensions: 204x250x100mm

Weight: 2.5 kg

Application: Mobile DJ, bars, clubs and rental.
