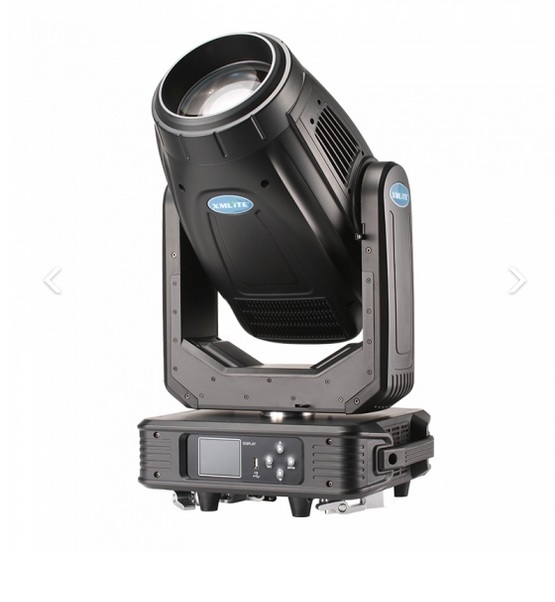

Moving Head 470W

Brand: XMLITE

Model: 470W Mega Lite

Type: Moving head

Description:

Technical characteristics:

480W Mega lite Moving Head

Mode NO : MEGAPLUS480
Channel Mode:34/39CH
Light Source
Lamp: OSRAM SIRIUS HRI 470W XL
Life time:1500Hours

Optical System
Advanced optical system, clear, sharp
Zoom range 2.5～45°

Gobo Wheels
Static gobo:   14 gobos + white.
Rotation gobo:   9 gobos+ white, changeable;
Animation gobo: Could be used by separately or combined with other gobo

Color Wheels
11 Colors+2700K +3200K+White+CMY Prism

Prism System
Rotation prism wheel 1 1:8 Facet prism+ Linear 6 facet prism +cylindrical prism
Rotation prism wheel 2 1:8 Facet prism+ Linear 6 facet prism +doule layer prism
Prism wheel 1 and Prism wheel 2 can overlay

Control & Screen
Display: Color display,4-touch buttons
Protocols: DMX512, RDM
USB connector can set DMX address with power and upgrade the software.

PAN & TILT
Pan: 540°; 8Bit/16Bit
Tilt: 270°; 8Bit/16Bit
Automatic Pan/Tilt position correction
Magnetic sensor position lock, more accurate than classic optical sensor

Electrical Info
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 600W
Power connector input
Data in/out: 3-pin and 5-pin XLR

Size & Weight
Product size:   405x245x685 mm;
Flycase:  930x520x910 mm;
Carton box:  540x450x650 mm;
N.W: 24.5 kg;
G.W:  28 kg(carton box).
