Brand: LED SPEKTAR
Model: P5
Type: LED Video Wall
Note: The price of 1 m²
Characteristics:
Light Intensity:
- 700-800mcd (Red, Silan)
- 900-1050mcd (Green, Epistar)
- 280-300mcd (blue, Epistar)
Viewing angle: 120º - 120º
Wavelength LEDs:
- Red: 620-630nm
- Green: 520-535nm
- Blue: 465-475nm
Characteristics of the module:
Pixel Pitch: 5 mm
Pixel configuration: 1R1G1B (3in1)
Resolution of the module: 48 dots x 48 dots
Modular pixels: 2304 dots
Module size: 240mm x 240mm
Weight of the unit: 0.8 kg

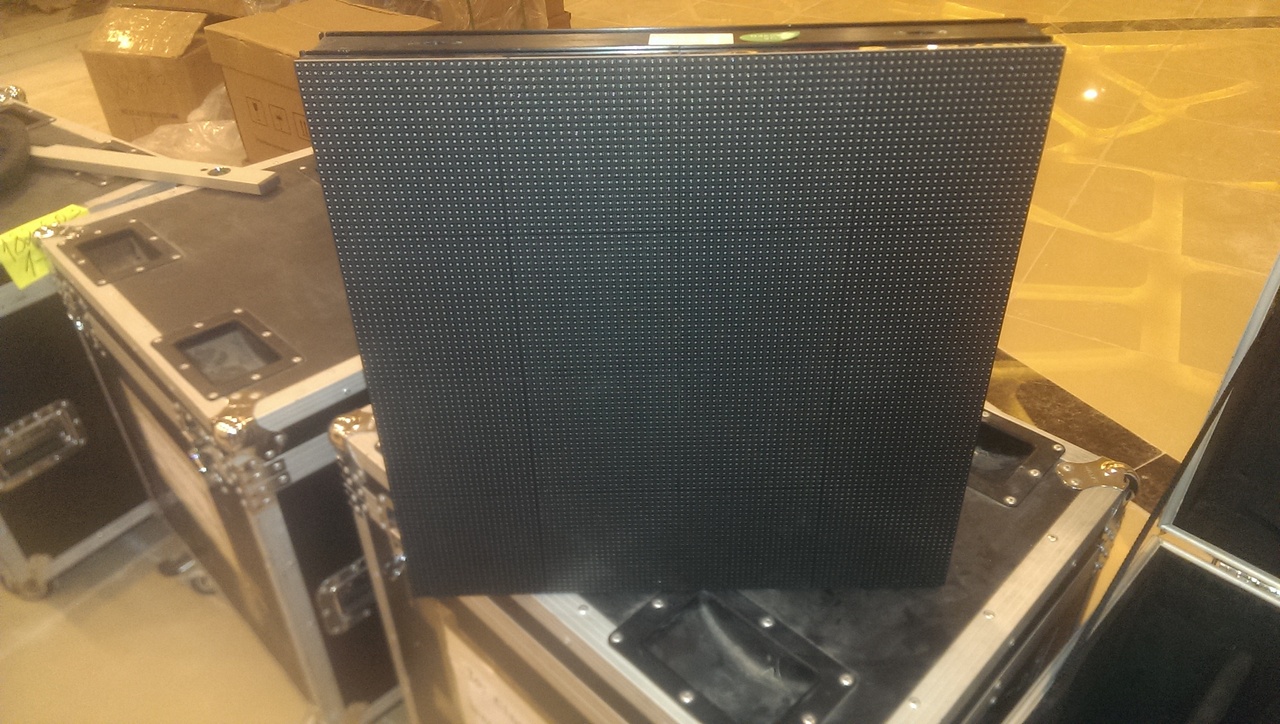

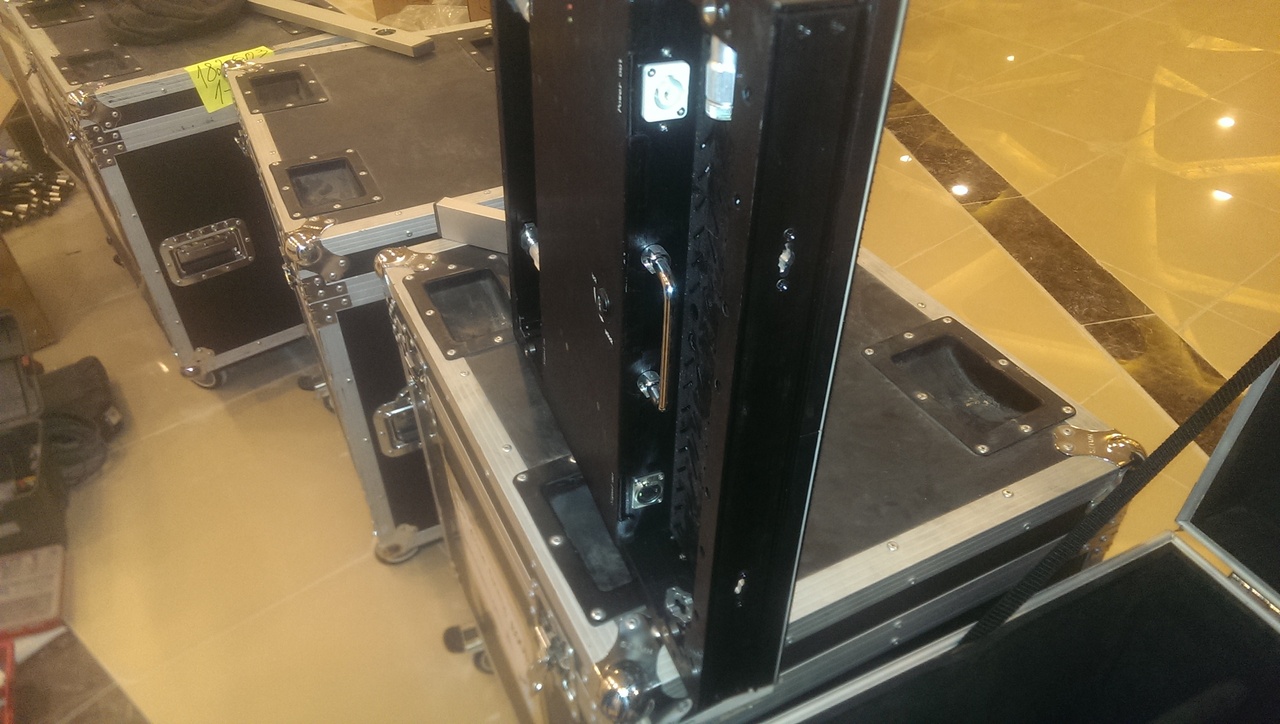

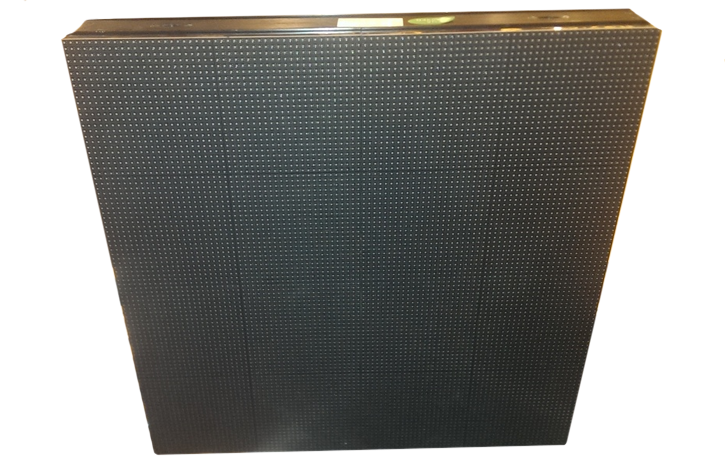

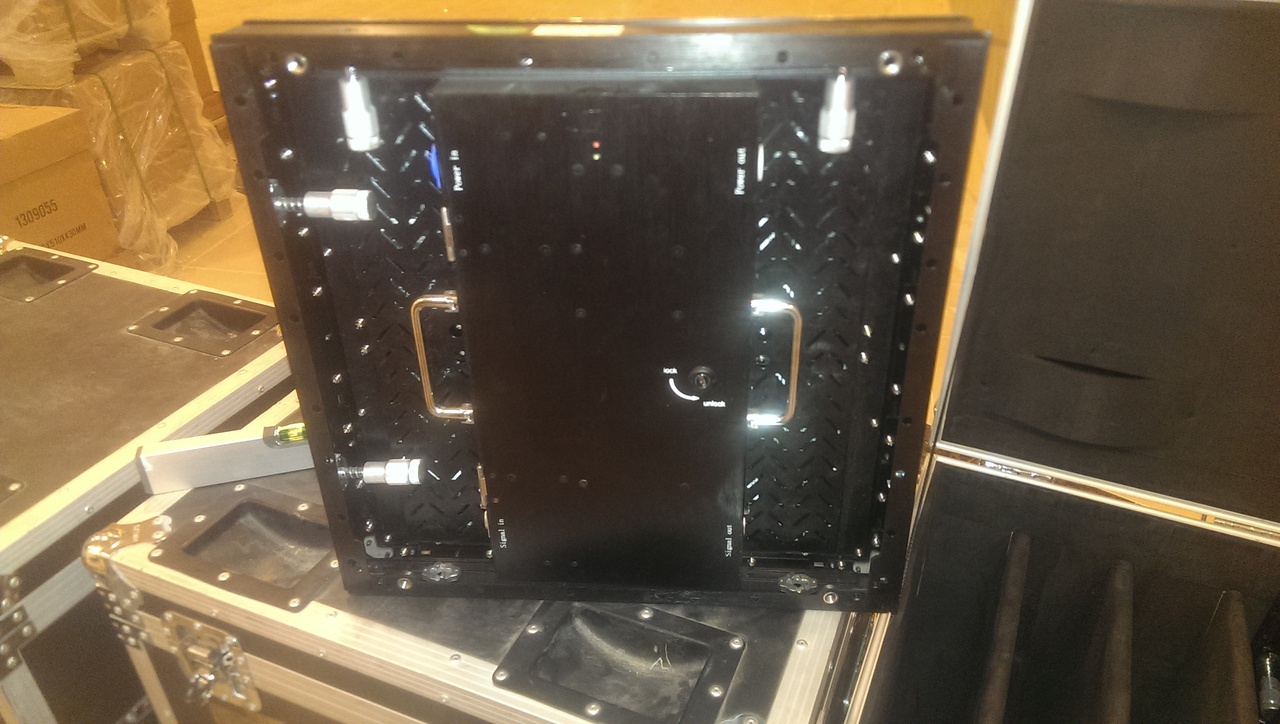

Specification of the Cabinet:
Size of the Cabinet: 480 x 480 x 65 mm
Resolution of the Cabinet: 96 dots x 96 dots
Number of modules in one cabinet: 4
Pixels office: 9216 dots
Pixel density: 40000 dots / m²
Average power consumption: 300W / m²
Maximum power consumption: 700W / m²
Material: Aluminum and steel
Cabinet weight: 6.5kg

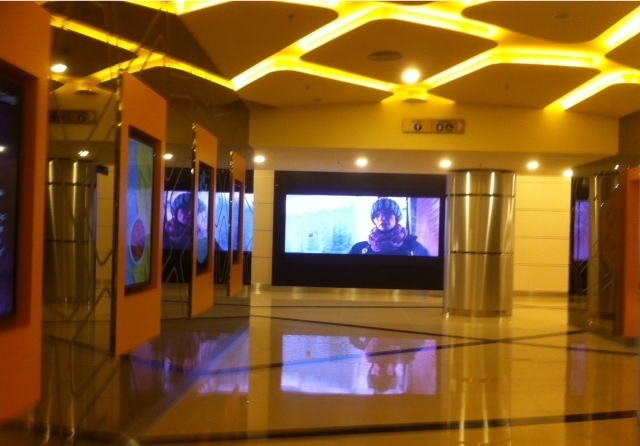

Application: interior fittings
Color | RGB |
---|---|
Viewing Angle | H 120°, V120° |
Cabinet resolution (pixel) | 96 x 96 |
Resolution of the module | 48 x 48 |
Pixel density per sqm | 40 000 / sqm |

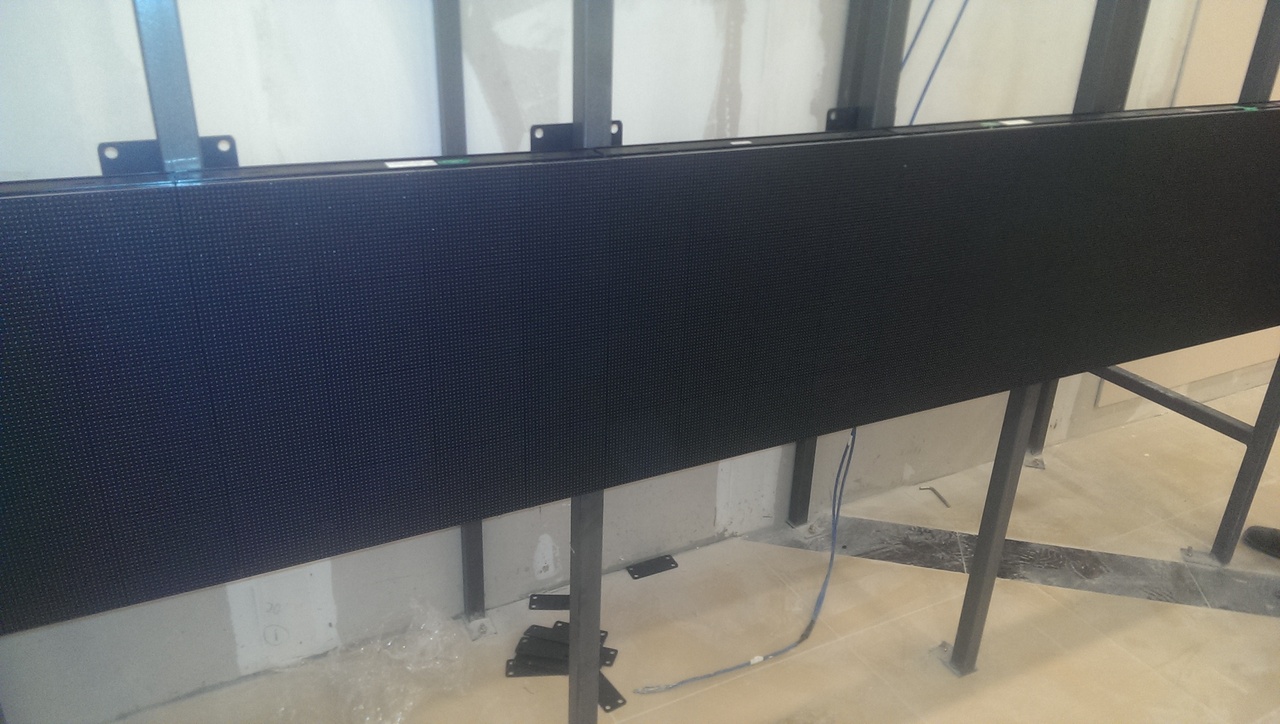

Installation type | Fixed |
Certificate | CE, RoHS |
