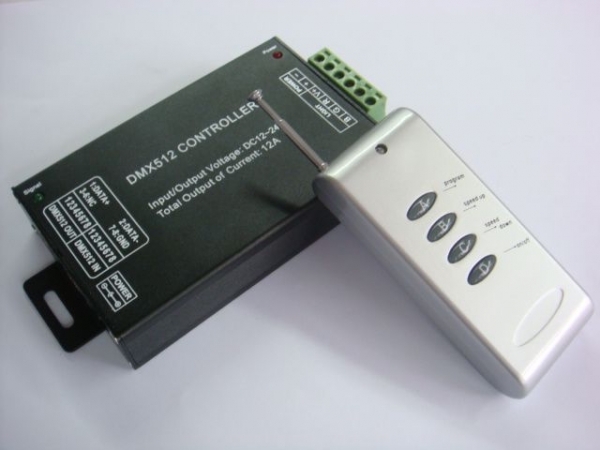

LED RGB DMX 512 controller

Brand: LED SPEKTAR

Model: LED RGB DMX 512 controller

Type: LED controller

Specifications:

Operating temperature: -20-60C

Max. Load current: 4A for each color

Output: 3 channel

Svarzvane- mode: common anode

Supply voltage: DC12V ~ 24V

Dimensions: L114 x W64 x H25 mm

Package Size: L137 x W82 x H45mm

Weight: 0185 g

Tare weight: 0.250 g

Application: LED light interior, discos, clubs, private residences, retail chains.

Management method and function of keys:
1. When the decoder is switched off automatically turns DMX addressing mode. When the decoder receives DMX signal indicator light will blink and it means that the controller operates correctly according to instructions.
2. When it is open, after press to open the remote control, it will work on a program of integrated decoder:
(1). Wireless radio control, AER has four key control. the function of each key is as follows below:
Button "A": style / color function key, could choose different color changes
Button "B": each press changing speed 1
Button "C": each press will change the speed of -1
Button "D": The output switcher

DMX position and addressing:
1. Static red
2. Static green
3. Static yellow
4. Static blue
5. Static pink
6. Static Cyan
7. Static white
8. 3 color gradual change with buttons B and C is valid
9. 7 Color step change button buttons B and C is valid
10. 3 Color fade change with buttons B and C is valid
11. 7 color fade edit button, B and C is valid
