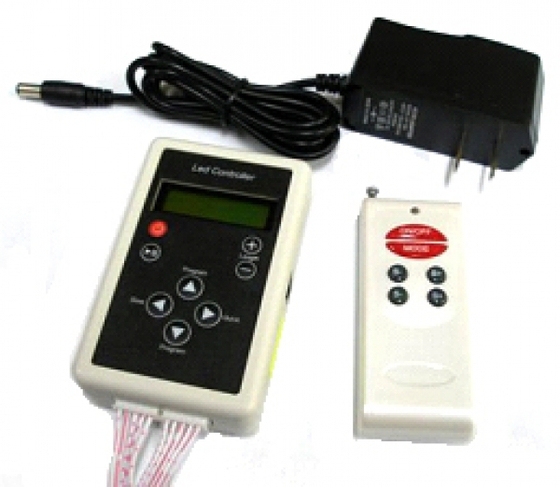

LED RGB Digital Controller LT-06-83

Brand: Led Spektar

Model: LT-06-83

Type: LED Digital Controller

Description: This controller is designed for LED products and the use of driver HL1606 is extremely useful. Suitable for advertising panels, stage lighting, decorative home lighting, etc.

Specifications:

Power: 2.2W

Output: SPI signal

Operating temperature: -20 - 60 `C

Power: DC12V

Dimensions: L90 x W60 x H25mm

Weight: 75g

Controller functions:

Length settings

Numerous programs

Memory function

128 * 128 * 128 levels of gray

Control panel features:

Button ON / OFF, which started off LED.

In the event of a shutdown, the display indicates IC NUMBER: *** "," *** "

which is equivalent to the current setting.

Click play / pause, which you use to activate the LED or

place it in a static position.

Plus button that adds IC NUMBER. The maximum number is 255

(510 to RGB group)

Minus button, which reduces IC NUMBER. The minimum number is 16

(32 to RGB group)

Button to select the program, the Directorate up.

Button to select the program Directorate down.

There are 83 programs.

Button deceleration. There are 100 degrees of speed.

The highest level is 100.

Button for accelerating speed. The lowest rate is 1.

OUTPUT1 and OUTPUT2 description: L, K, D, S signal to HL1606, which is L_I, CK_I, D_I, S_I.

Safety:

Supply voltage of this product is DC12V. Never connect other, higher voltage. It is forbidden interconnection can cause a short circuit. Lead wire should be connected correctly in accordance with the colors in the chart. The product warranty is one year.

Application: Advertising panels, stage lighting, decorative home lighting, etc.
