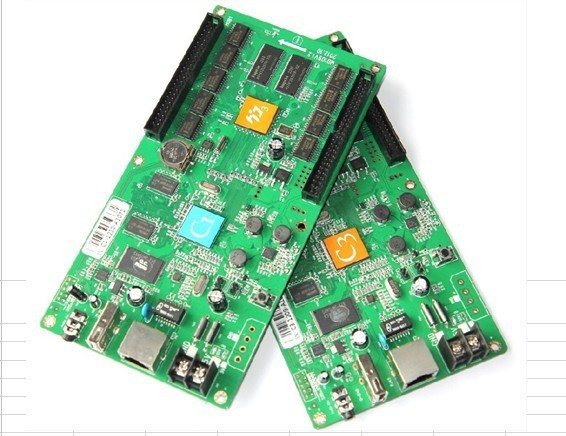

HD-C1 Asynchronous Full Color LED Control Card

Brand: SuperSound

Model: HD-C1

Type: Asynchronous Full Color Control Card

Description:

Support indoor & outdoor full-color & single/dual color module.
Support Video display, Image and Text Editing.
Support U-disk expanding memory, plug and play.
Support stereo audio output.(No external audio module)
Support plug and play without any network settings.
Support 0-65536 gray scale.
Support network cluster management.
Last simple and flexible user interface, easy to operate.

Product features:

1. Connect to computer automatically without any network/IP setting;
2. Have complete U-disk functions: users can set screen parameters, adjust brightness, upgrade firmware with U disk, update program and calibrate time, the U disk can also work as extended memory;
3. First standard stereo output in LED Control Card industry;
4. Unique layer transparency setting function.
5. Initiate the first startup screen function: users can customize the screen at boot time;
6. With 50% less cost-effective

Technical Parameters:

Control Range: 384 * 128
Scan mode: Static, 1/2 scan, 1/4 scan, 1/8 scan & 1/16 scan
Communication: 10 / 100M Ethernet, USB port
Memory: 512MB Flash, more than 2 hours'program support. Indefinite expanding of U-disk memory.
Gray Scale: 0-65536
Distance: 100M
Text: Document like html, word, rtf, txt, html etc. can be edited as well after imported directly. Text and Image being edited directly.
Image format: BMP, GIF, JPG, JPEG, PNG, GIF, etc.
Video format: AVI, WEBM, MOV, WMV, VOB, MKV, MP4, TS, FLV, TRP, ASF, 3GP, DAT, MPG, F4V, MOV, DAT, VOB, TRP, TS, WEBM, etc.
Software: LedArt Port Stereo audio x1,2pin 5V Power x1, 2 x 25pin HUB port x2, USB 2.0 x1, 10 / 100M RJ45 x1
Weight: 0.2 kg

Application: For setuping and control of indoor & outdoor full-color & single/dual color module.
