Globe LED Video Display

Brand: LED SPEKTAR

Model: 3D LED BALL

Type: LED 3D Display

Description: The 3D LED Ball Display is P10 indoor LED display with aluminum construction and capacity of the gripping 1.5 tons per m² which deliver incredible vision for the public. With 360Cº angle of view and moving with hanging or standing installation, 1m diameter, high-resolution and brilliant effects. Synchronous or asynchronous control. LED ball is widely used for advertising on concerts, in hotels, supermarkets, malls and shopping centers, large squares and other places. 3D ball is a good idea to promote your business using creative displays with modern technology.

Technical specification:

Pixel Density: 10000 / m²
Diameter: 1m
LED screen in the form of ball: P10mm indoor full color video screen with a diameter of one meter in the form of ball

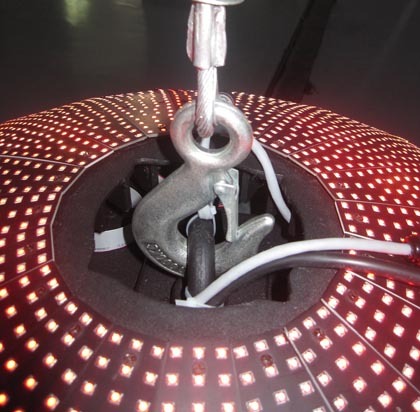

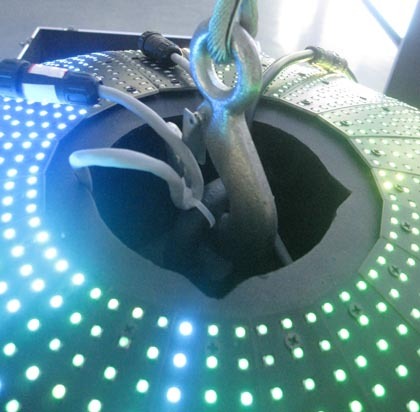

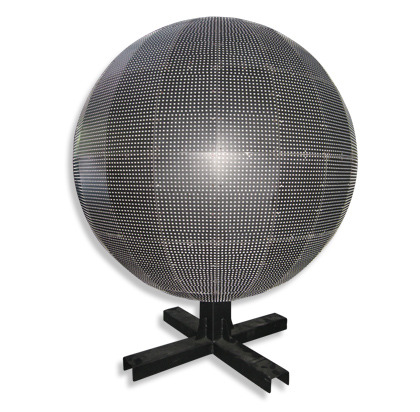

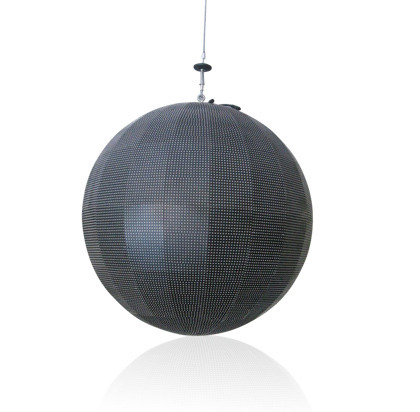

Hanging system: to hang or stand

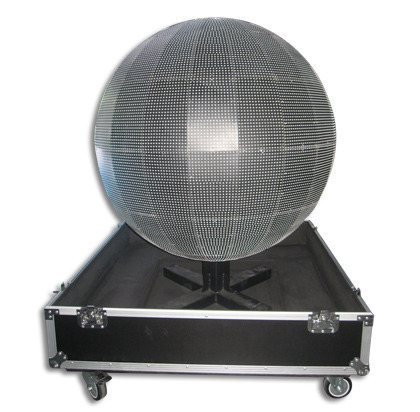

Control system: include sending card and receiving cards, SD cards and Flight case
Module: spare parts (6pcs different sizes)

Pixel configuration: 1R1G1B

Color: R: G: B = 3: 6:1
LED specifications:
R - wavelength of 620 - 630nm, Brightness: 400-600mcd
G - wavelength 520-530, Brightness: 1200-2300mcd
B - wavelength 465-475, Brightness: 300-800mcd

Parameters:

Pixel: Pixel spacing: 10 mm

LED: R, G, B: Epistar
Pixel density: 10000 dots / m2
Pixel configuration: SMD3in1
LED configuration: SMD3528

Available:

Various modules and PCB size
various modules and PCB resolutions
Size modules: 6 types
Resolution of the module: 6 types

Specifications of the ball:

Diameter: 1 m
Cabinet material: Aluminum
Weight: 67 kg / set
Display: The optimum viewing distance: 6-25 meters
Optimal viewing angle: 140 ° (horz.), 140 ° (wort).
Storage temperature: -40 ° C ~ +85 °
Operating temperature: -20 ° C ~ +50 °
Relative humidity: 10% ~ 90%

Power:

Voltage: 100 ~ 260 V AC, 50 ~ 60
Max Power Consumption: 2000W / pc
Average power consumption: 666W / pc
Control system: asynchronous and synchronous; PC TV + DVI

Basic parameters:

Frame Rate: 60Hz / sec.
Scanning Mode 1/4
Grayscale / Colors: 256 shades / 16.7 million
Balance the brightness of the white: ≥ 2000 cd / m2
Grayscale: ≥ 12 bits
Refresh rate: 600Hz
Weight: 67 kg
Power consumption (max / min) (W / pcs.): 2000/1000
Life: 50,000 hours
Supports BMP, EMF, WMF, JPG, JPEG, DIB and others. formats and editing browse.text (* TXT.) Format, editing and viewing; animations and video editing format GIF.
Supports Off-Line Jobs, Supports SD / MMC, CF, U flash expansion and storage.

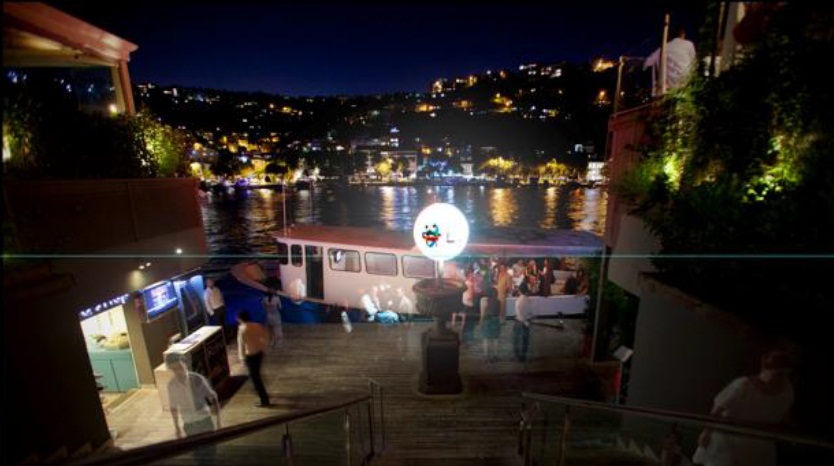

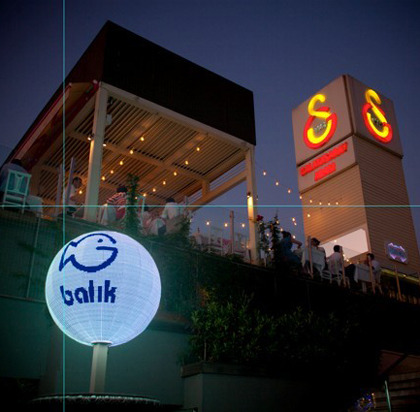

Application: Shopping centers, airports, casinos, stages, exhibitions and more.
