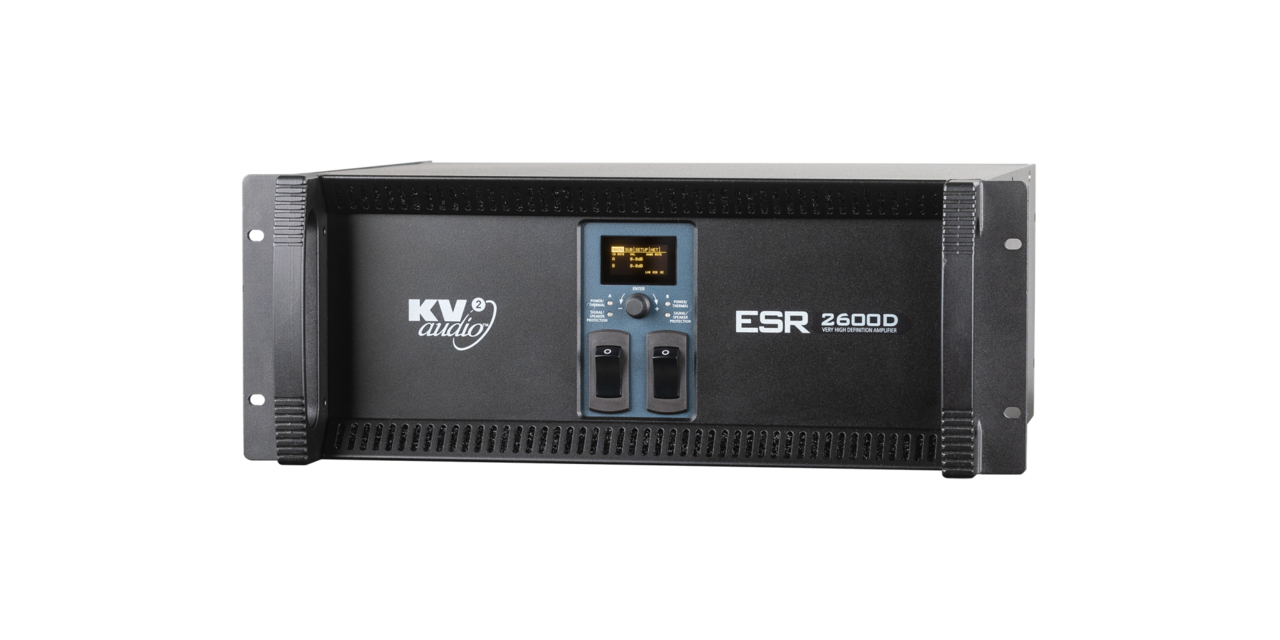

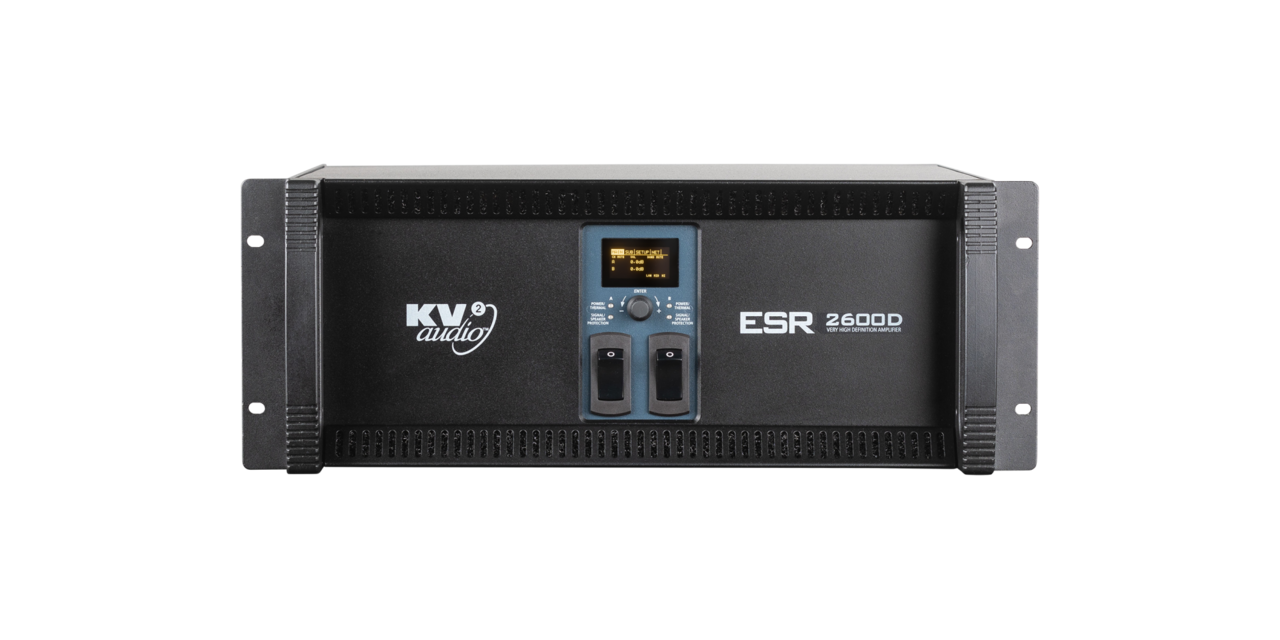

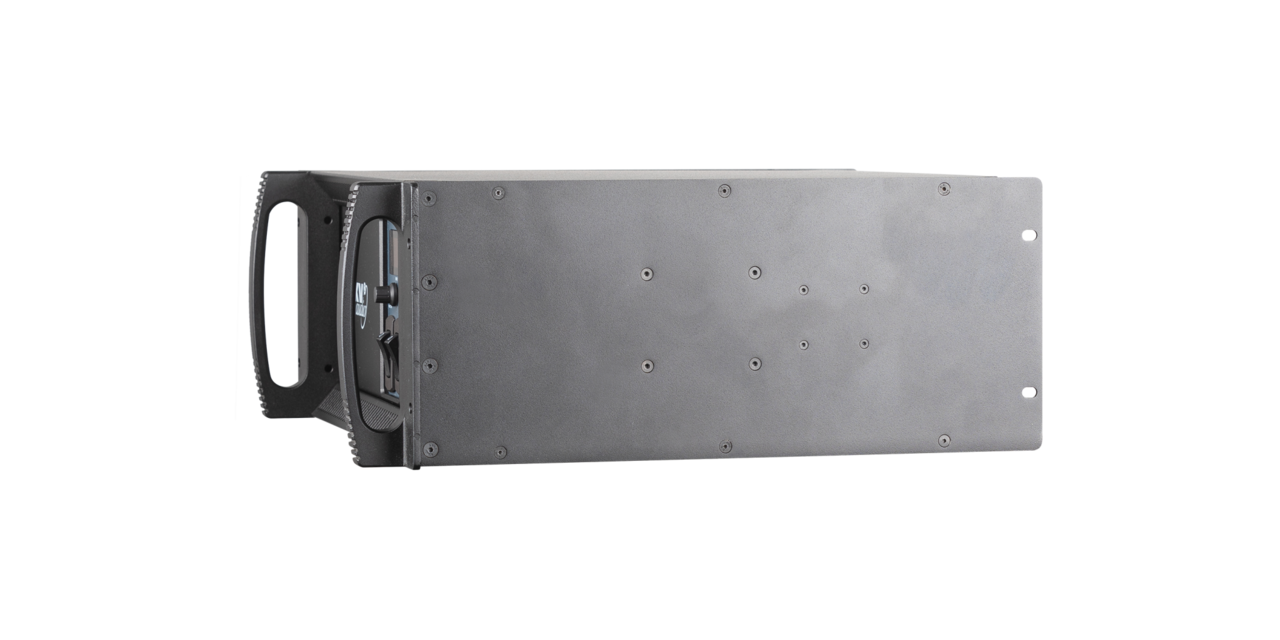

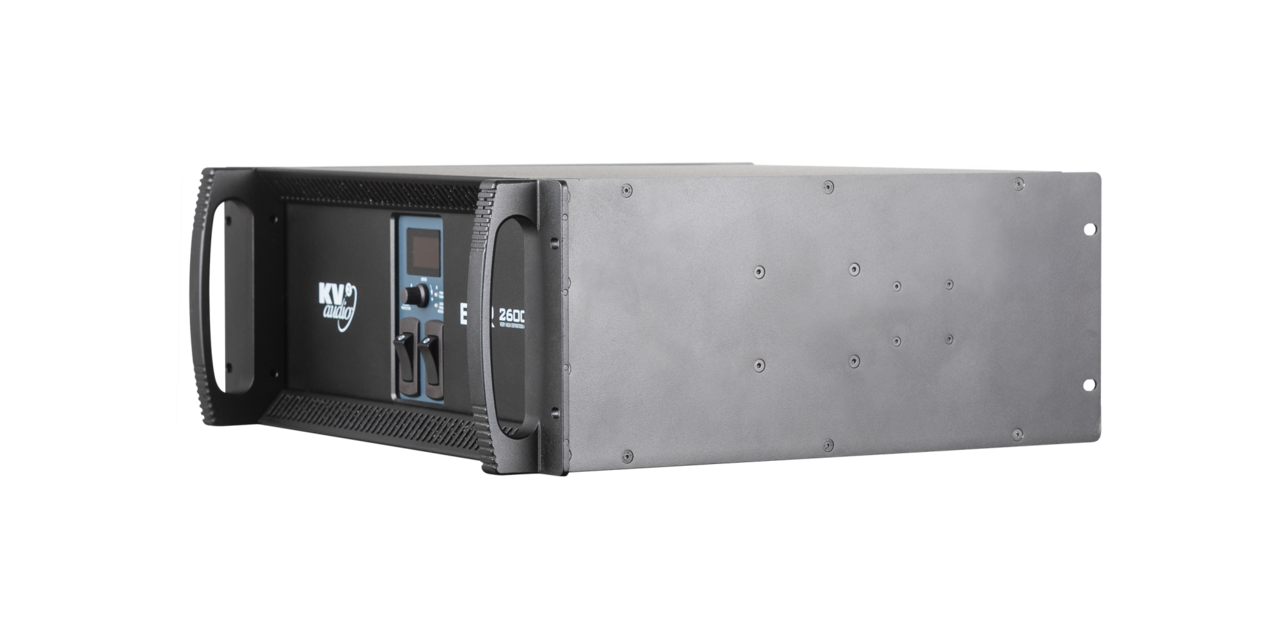

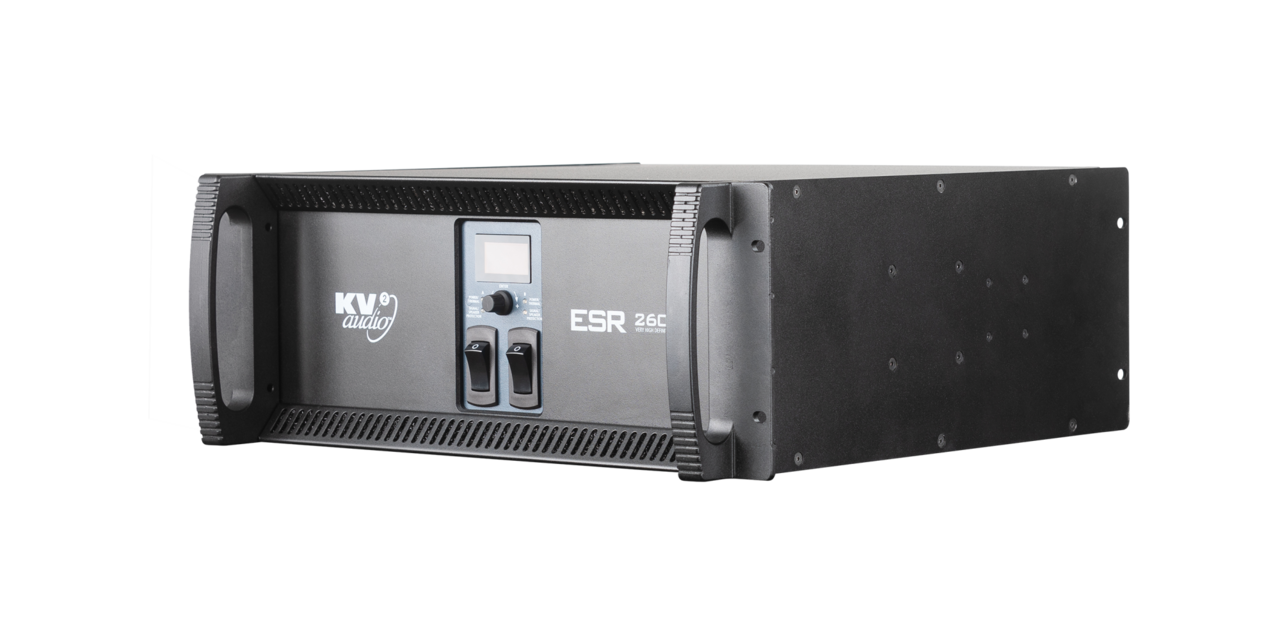

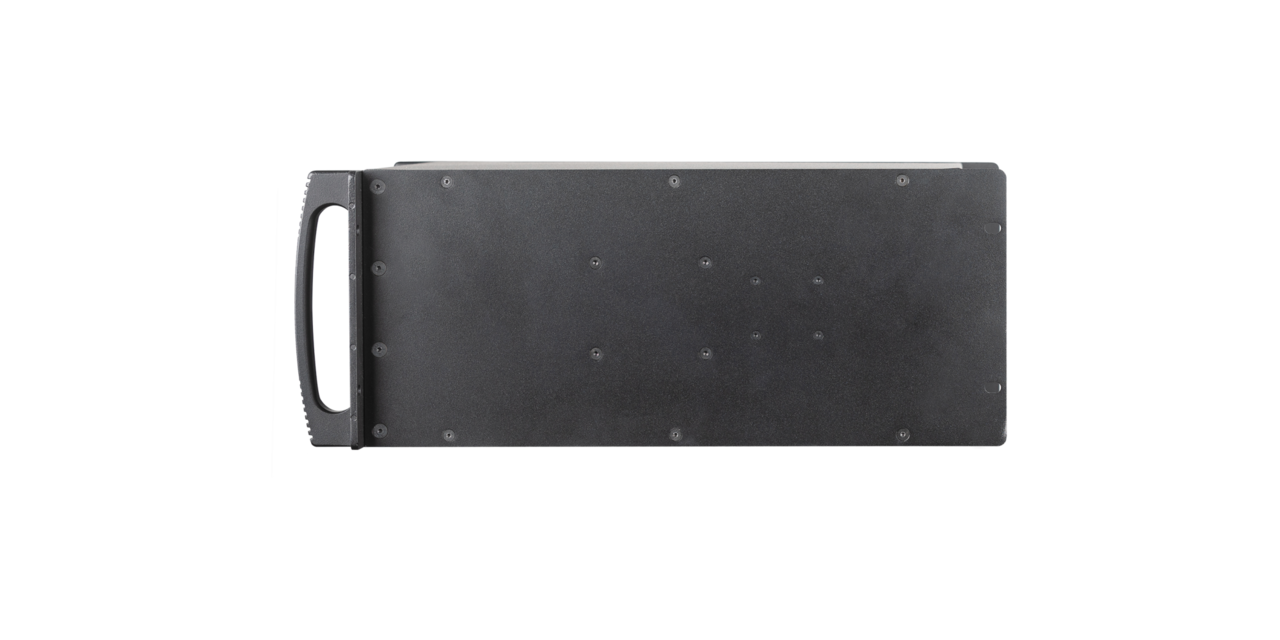

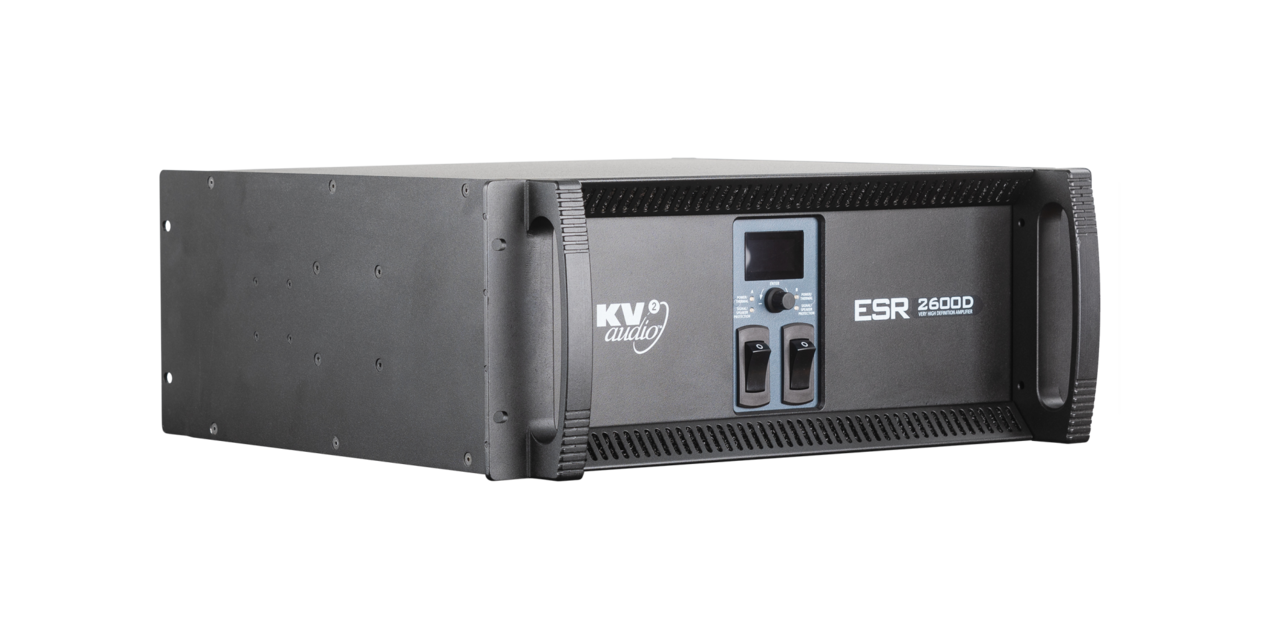

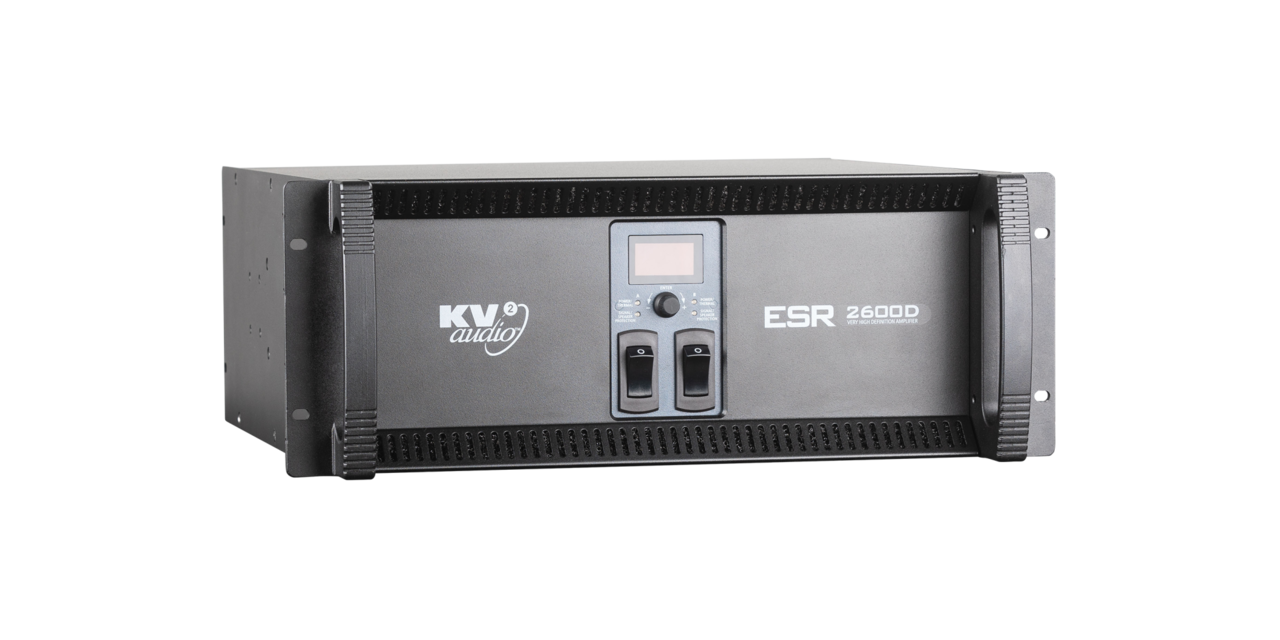

Brand: KV2 Audio
Model: ESR2600D
Type: ESR Аmplifier
Description:
The ESR2600D is a two channel (stereo) three-way, active control and amplification system specially designed for the KV2 Audio ESR106 full range loudspeaker system. It houses all signal processing and amplification, as well as providing control and crossover functions for adding external subwoofer cabinets if required, utilizing external amplifiers. The ESR26000D is now configurable via the front panel or remotely using the KV2 Control & Diagnostics Tool.
The ESR2600D incorporates six amplifiers consisting of two 100-watt, Class AB, push pull, low intermodulation amplifiers for high frequencies, two 200-watt, Class AB, push pull, low intermodulation design amplifiers for mids and two 1000-watt, high-efficiency, current-enhancing switching technology amplifiers for bass. The ESR2600D stereo configuration powers two ESR cabinets accordingly.
Technical characteristics:
Features: The amplifier compliment inside the ESR2600D Amplifier is as follows:
- High Frequency - 2x 100-watt, Class AB, push pull, low intermodulation design
- Mid Frequency - 2x 200-watt, Class AB, push pull, low intermodulation design
- Low Frequency - 2x 1000-watt, high-efficiency, current-enhancing switching design

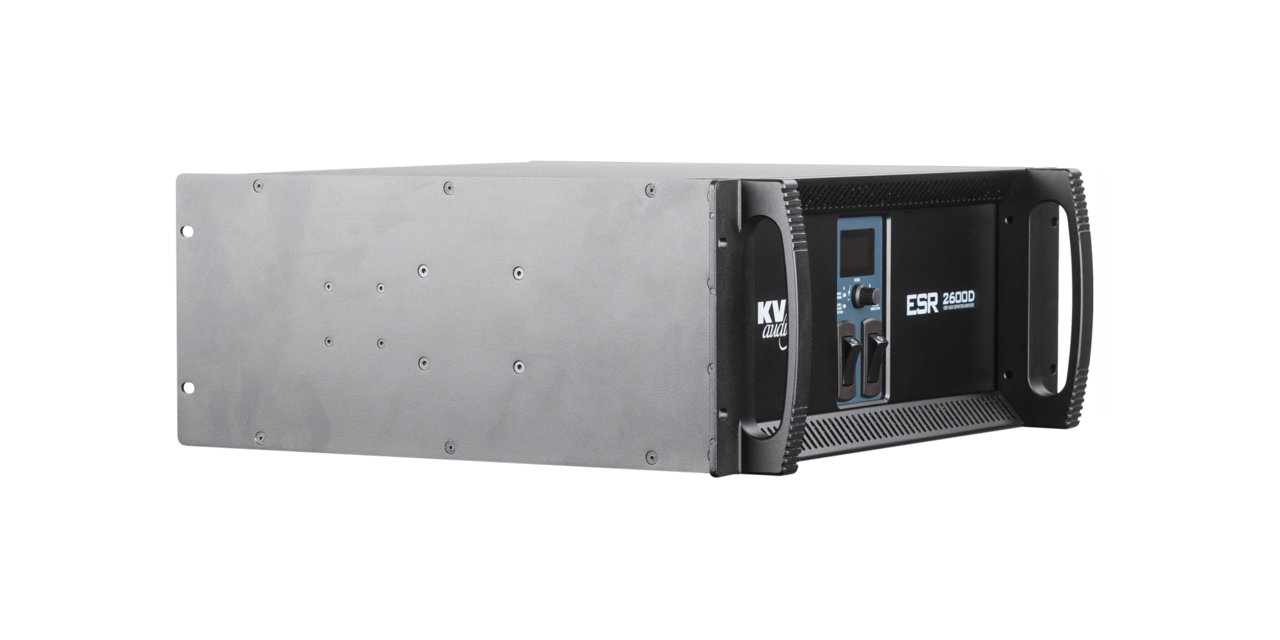

Configurable via the front panel or remotely using the KV2 Control & Diagnostics Tool.
Output Channels:
Number of Channels: 2 (stereo)
Total Output Power: 2x 1300W
High Frequency Amplifier Specification:
Type: Class AB - Push Pull - Low IM Design, Transformer balanced output
Rated Continuous Power: 100W
Distortion: <0.02%
Operating Bandwidth: 2.4kHz to 40kHz
Mid Frequency Amplifier Specification:
Type: Class AB - Push Pull - Low IM Design, Transformer balanced output
Rated Continuous Power: 200W
Distortion: <0.02%
Operating Bandwidth: 450Hz to 2,4kHz
Low Frequency Amplifier Specification:
Type: High efficiency, Current-enhancing switch mode
Rated Continuous Power: 1000W
Distortion: <0.02%
Operating Bandwidth: 20Hz to 450Hz
Signal Input:
Input Sensitivity: 1.55V RMS
Input Impedance: 20kΩ (balanced)

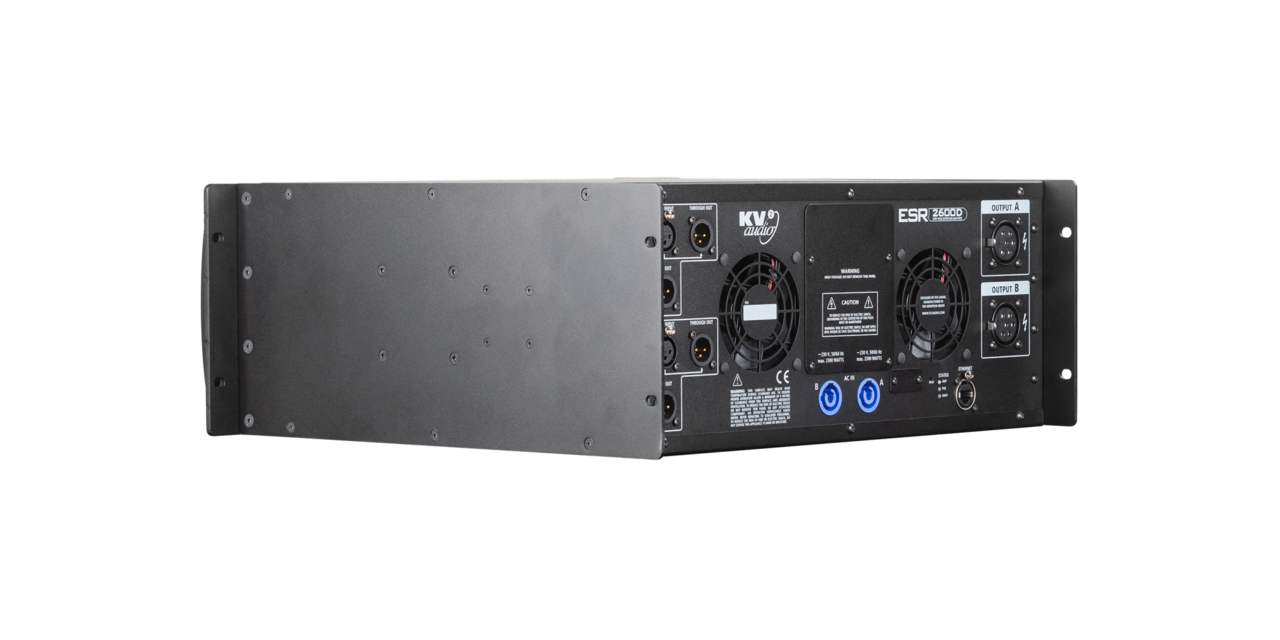

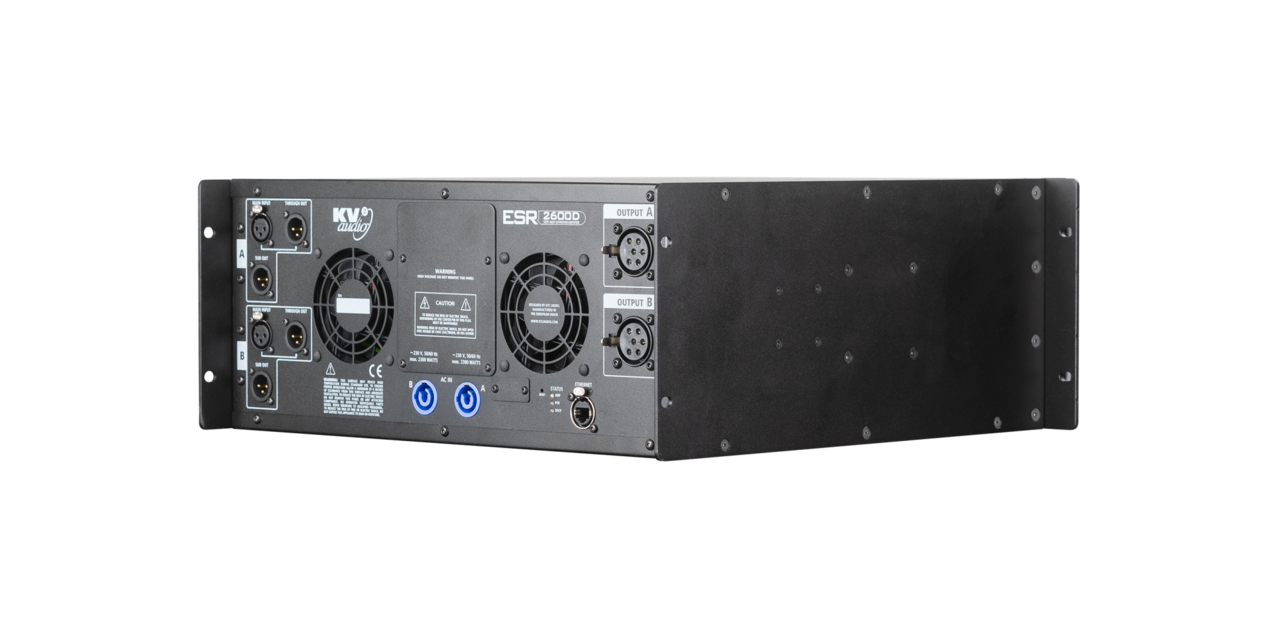

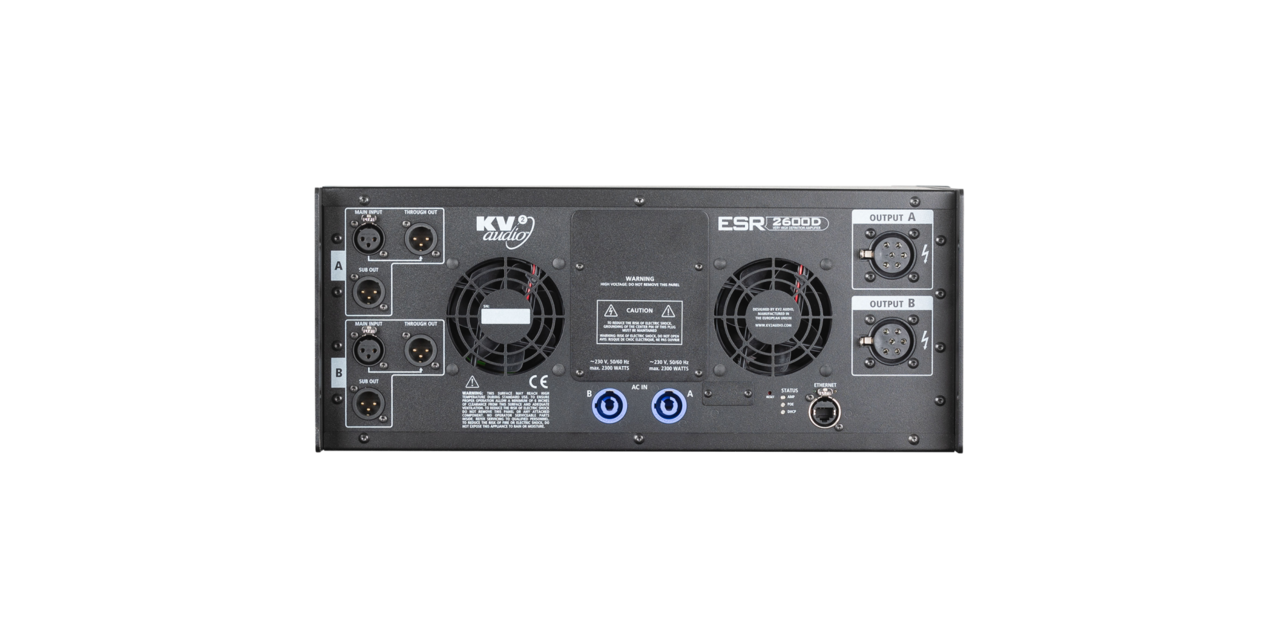

Speaker Output:
Speaker Output: 2x AP6 female
Power:
Power Connector: 2x Neutrik PowerCon®
Operating Voltage: 115V / 230V / 250V
Operating Voltage Range: 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage: 2x10A 115V | 2x5A 230V | 2x5A 250V

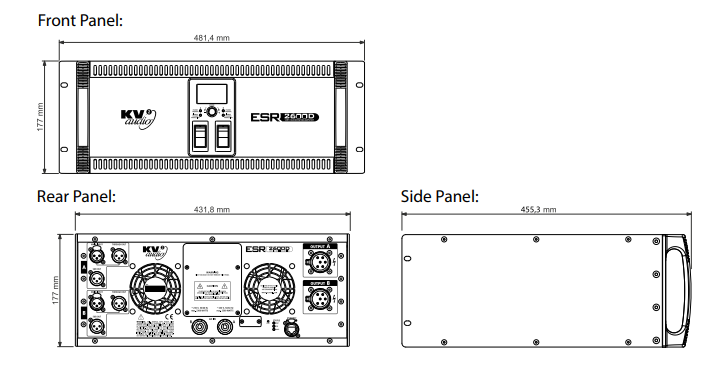

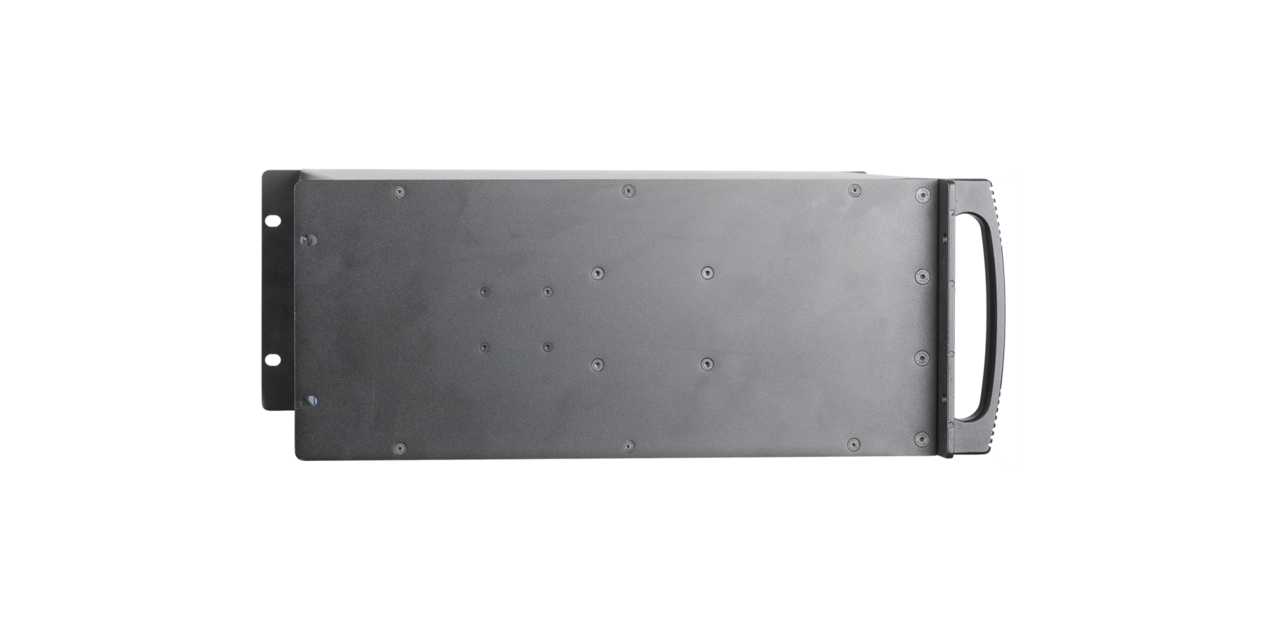

Physical Dimensions:
Height: 177 mm (6.97"), 4RU
Width: 481.4 mm (18.95")
Depth: 455.3 mm (17.93")
Weight: 36 kg (79.37lbs)
Product code (Options):
- KVV 987 514 (250V)
- KVV 987 513 (230V)
- KVV 987 512 (115V)
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Specifically designed as the amplification and control unit for the ESR106 loudspeaker system in a 4RU mount module with integrated Control & Diagnostics.
● Fixed Installations ● Theatre and Music venues ● Houses of worship ● Classical and opera concerts
