Brand: KV2 Audio
Model: ESD1.18
Type: Passive subwoofer
Description:

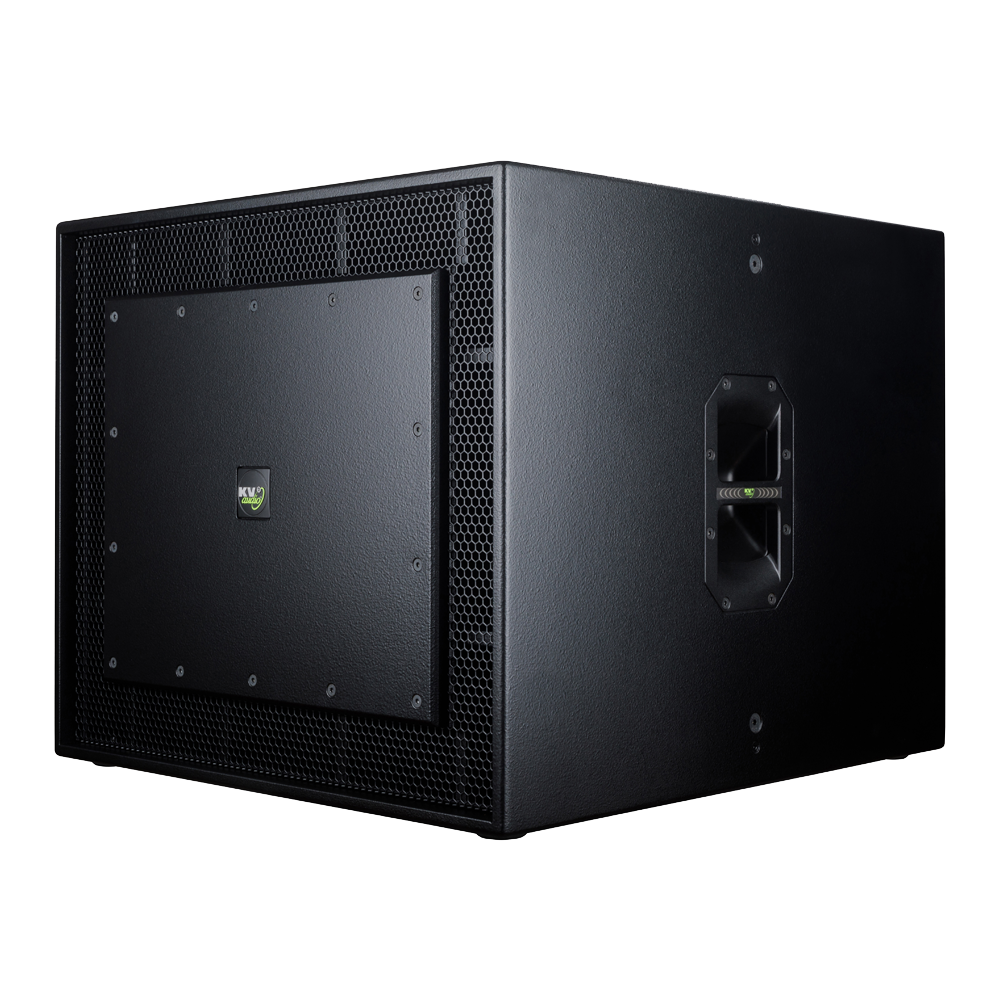

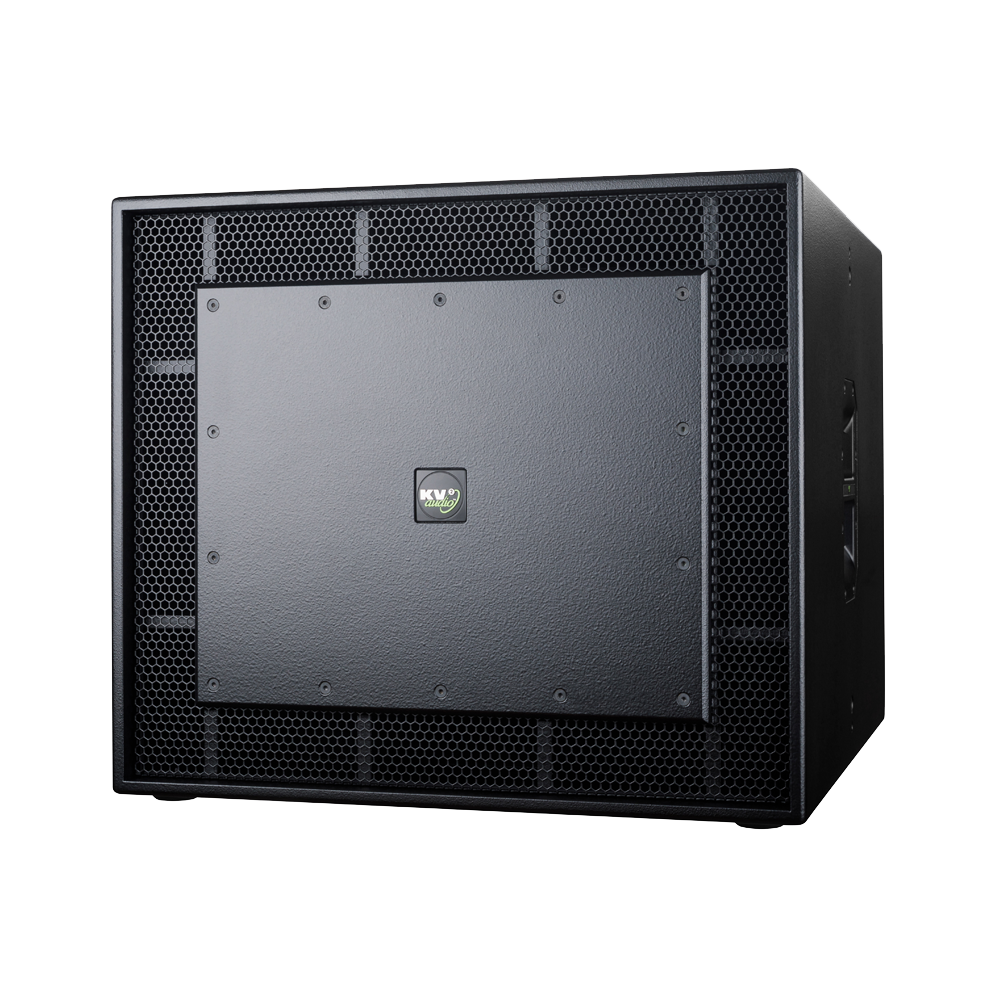

The ESD1.18 is the passive version of the incredible active EX1.8. The ESD1.18 features neodymium woofer with power handling capabilities of 1000W which makes a firm foundation from which to build an incredibly powerful ESD system, or as a stand alone subwoofer to enhance any existing passive or active system.
Technical characteristics:
Features:
- Professional, Baltic birch construction with wear resistant polymer coating
- 131dB sustained output, 134dB peak
- Excellent reproduction of bass frequencies with high transient content at high output levels
- 18" high output, low frequency driver with 4" (100 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and neodymium magnetic structures

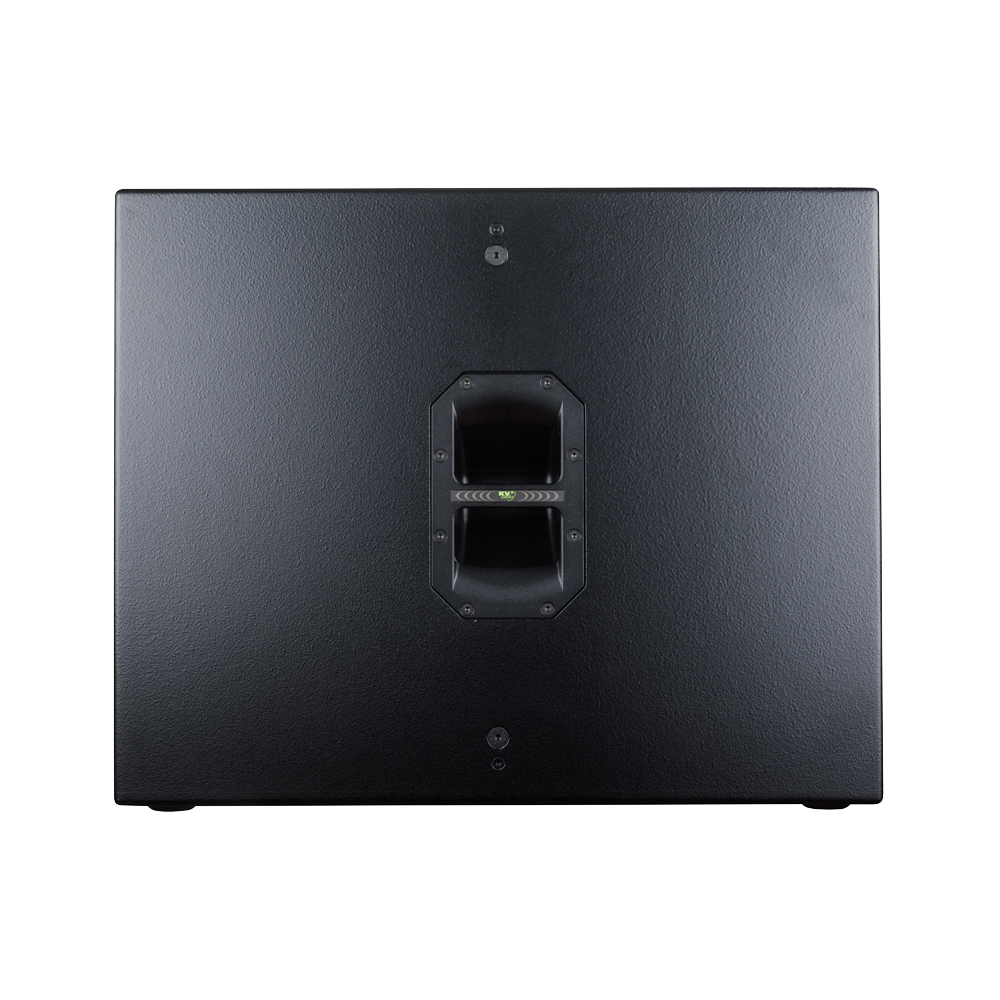

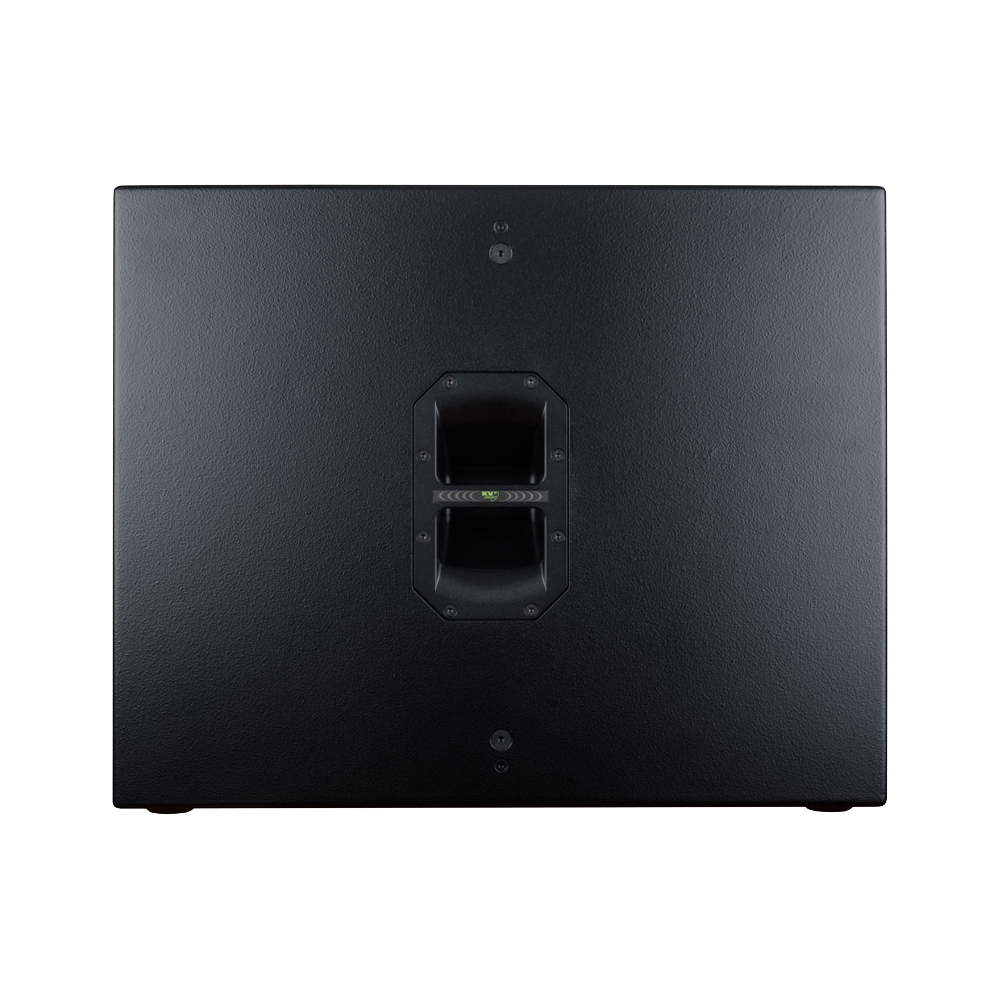

- Two recessed side handles for simplified handling and carrying
- Pole mount M20
- Non-threaded 35 mm Pole mount adaptor available as accessory KVV987290
- Thermal breaker protection with auto reset
System Acoustic Performance:
Max SPL Long-term: 131dB
Max SPL Peak: 137dB
-3dB Response: 30Hz to 150Hz
-10dB Response: 28Hz to 170Hz
Recommended Power: 1000W
Sensitivity: 100dB
Impedance: 8Ω
Crossover Point: 70Hz to 150Hz
Low Frequency Section:
Acoustic Design: Twin Asymmetrical loading
Number of Drivers: 1
Woofer Size / Voice Coil Diameter / Design: 18" / 4" / Inside outside
Magnet Type: Neodymium
Diaphragm Material: Epoxy Reinforced Cellulose
Protection Thermal: breaker - autoreset

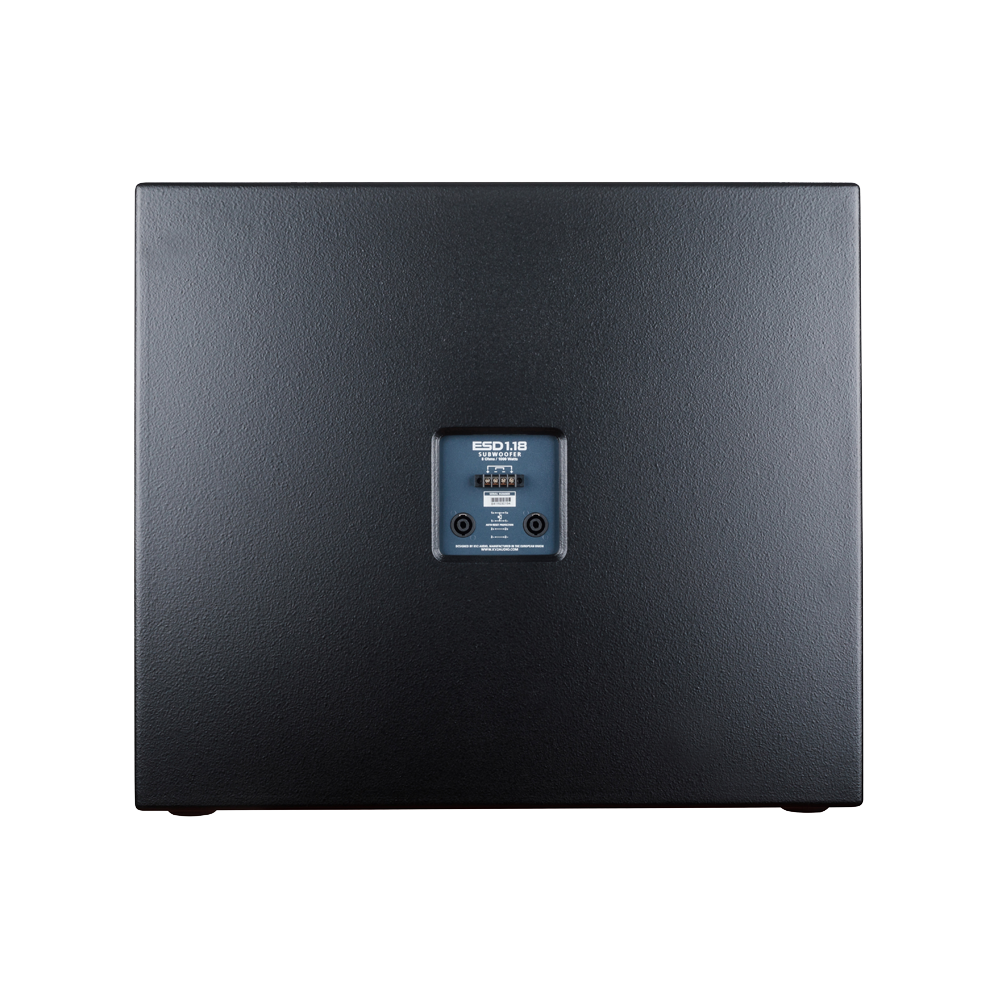

Speaker Input: 2x Neutrik Speakon®, Terminal Block
Cabinet:
Cabinet Material: Baltic birch
Handles: 2

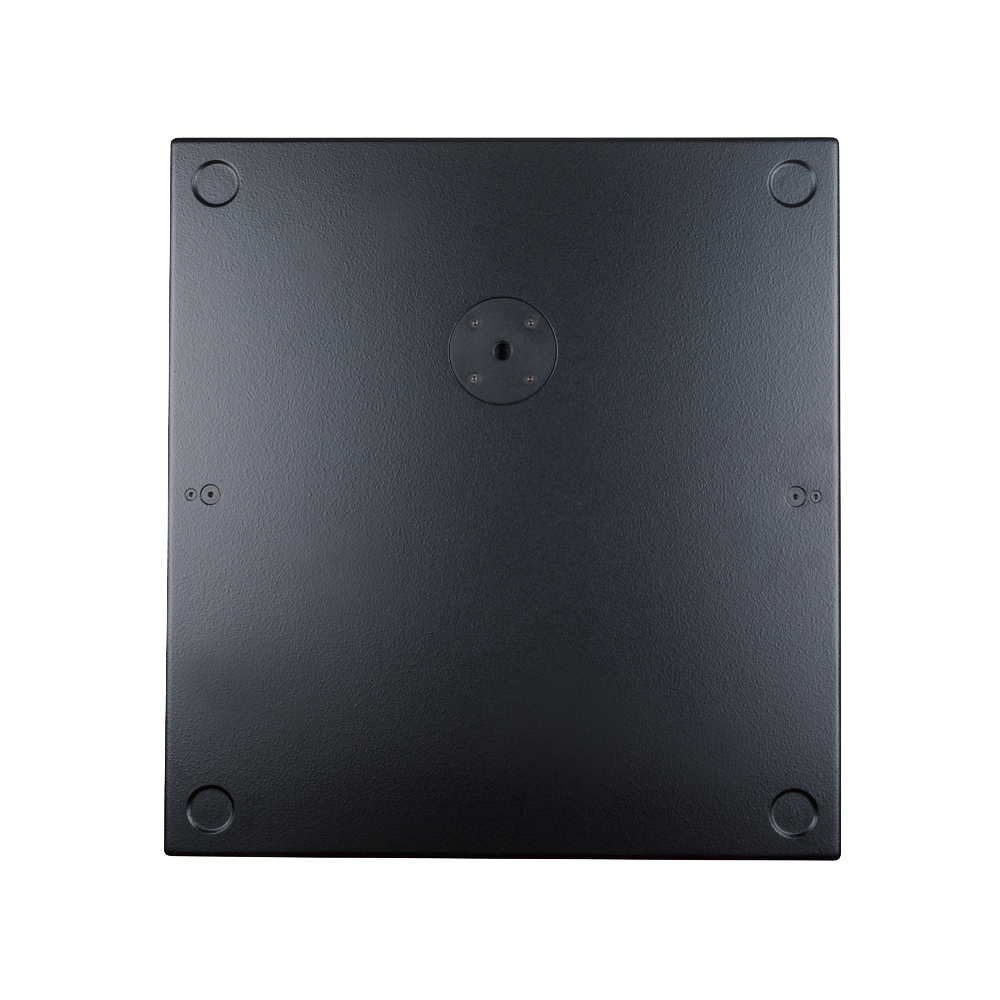

Pole Mount: M20
Flyware: 8x M10 suspension points
Color: "Orange peeled" Matt Black or any RAL
Physical Dimensions:
Height: 612 mm (24.1")
Width: 700 mm (27.55")
Depth: 750 mm (29.52")
Weight: 52 kg (114.7lbs)
Product code:
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Specifically designed as a passive subwoofer to accompany any of the ESD range to create true full range system performance
● Fixed installation ● Portable PA ● Bars-small entertainment projects ● Scalable into larger systems
