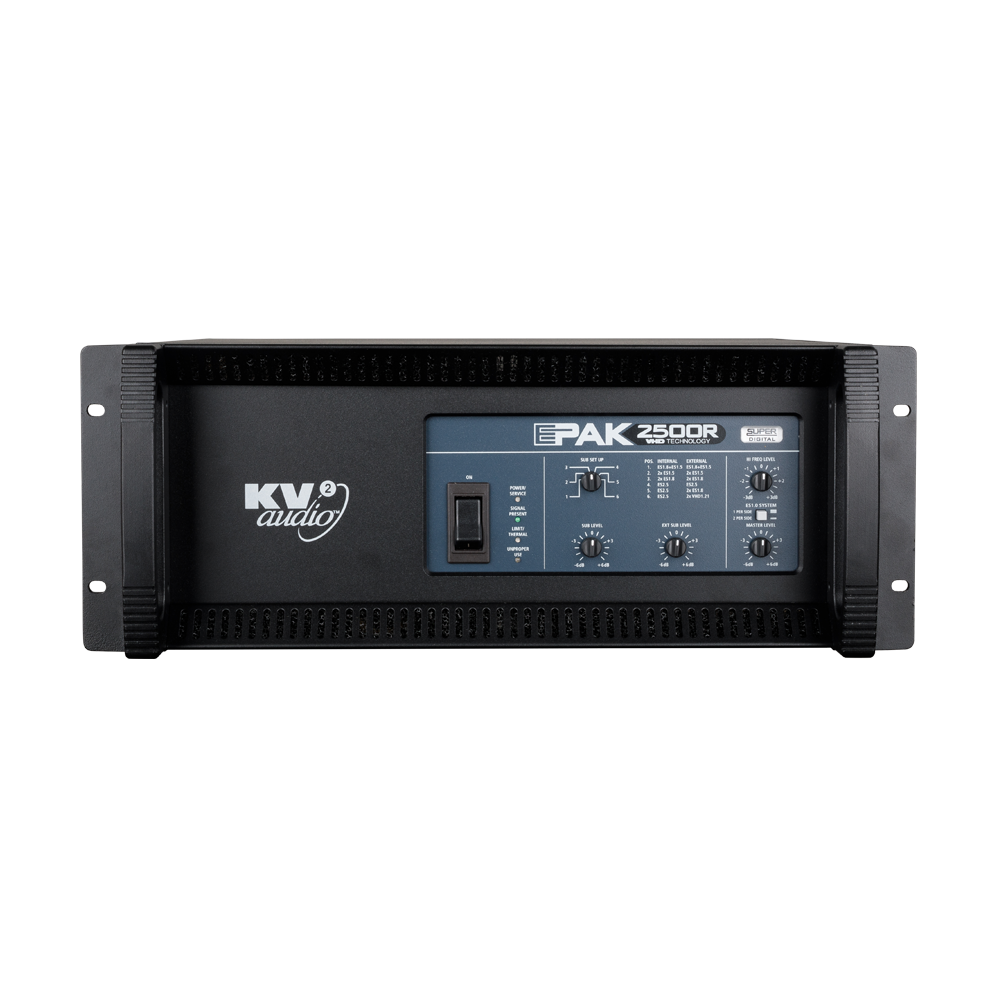

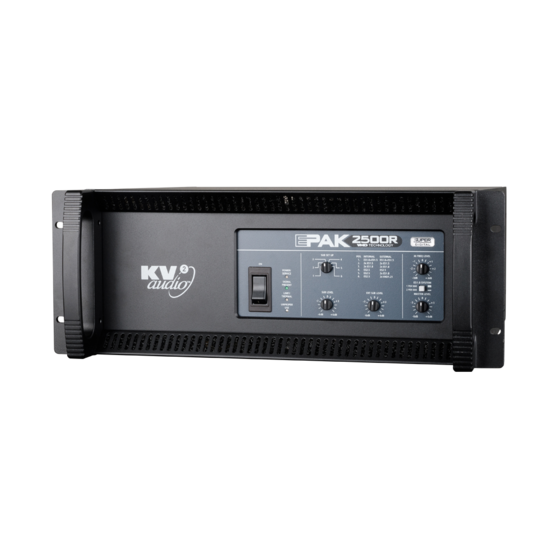

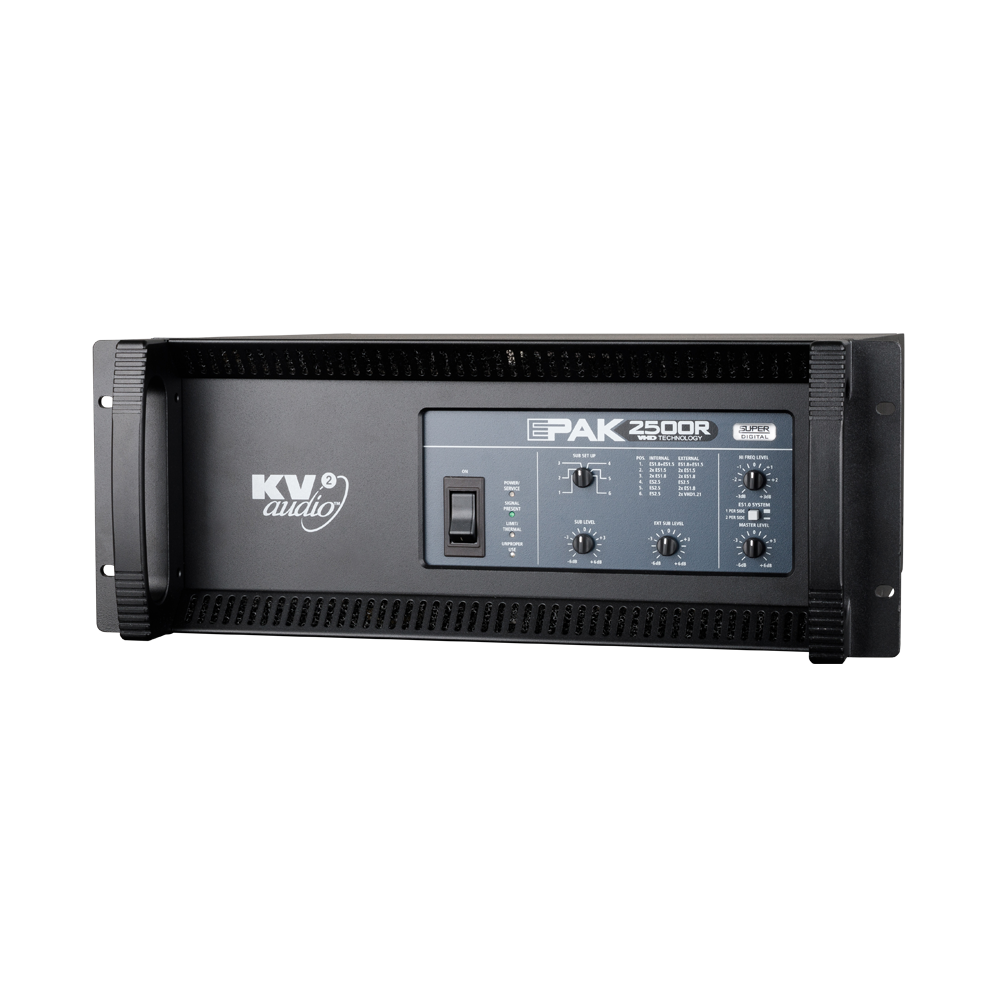

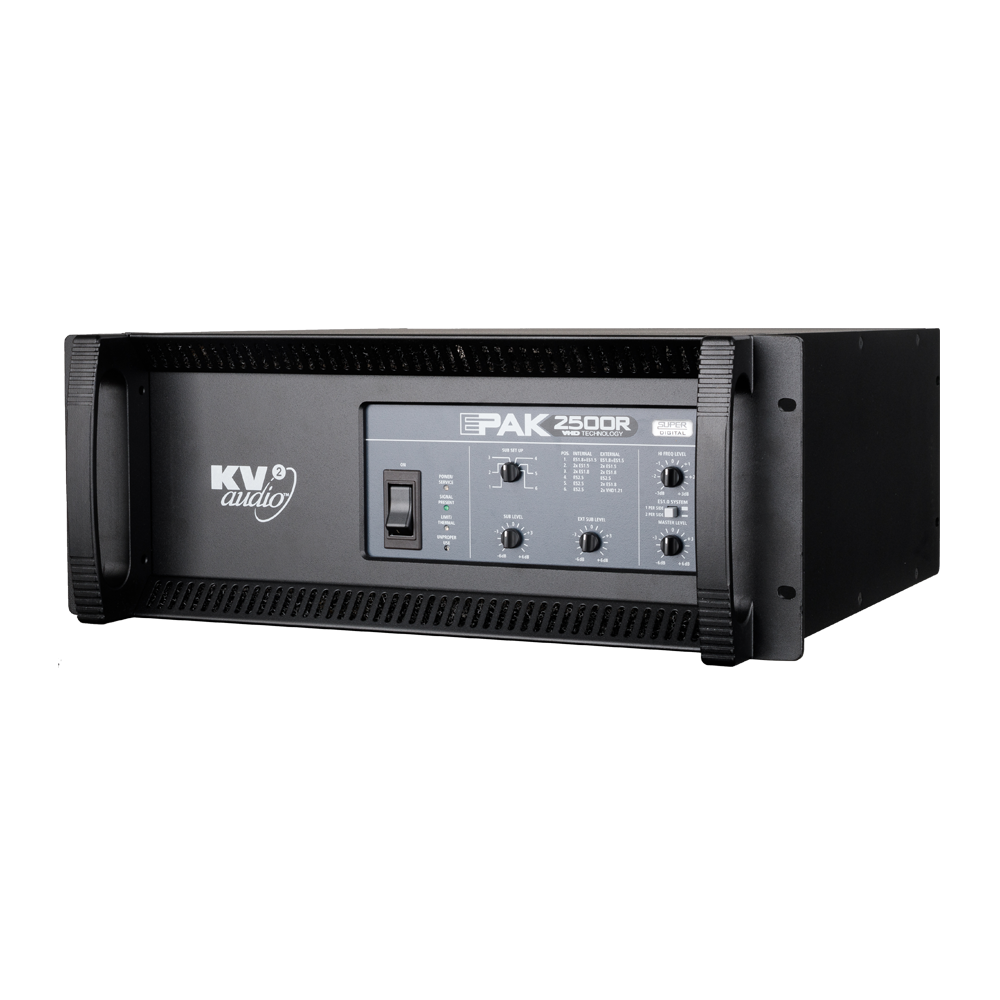

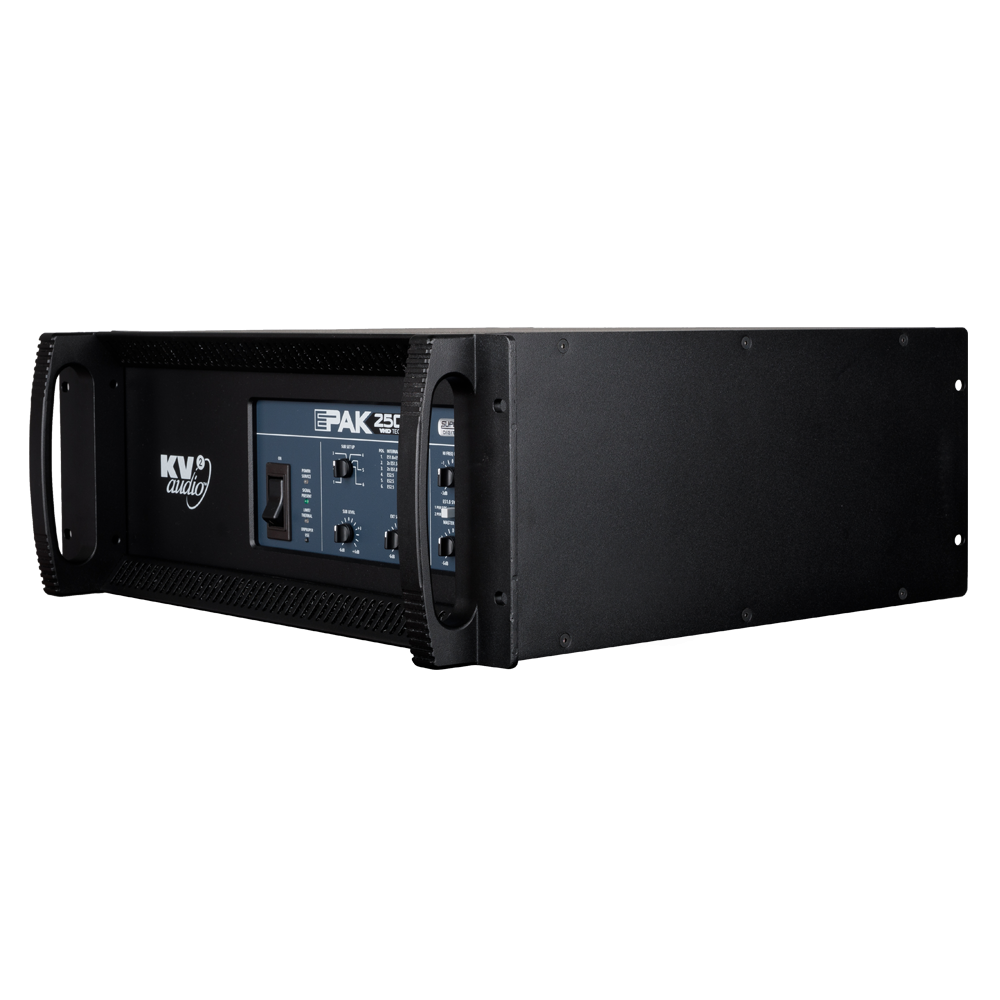

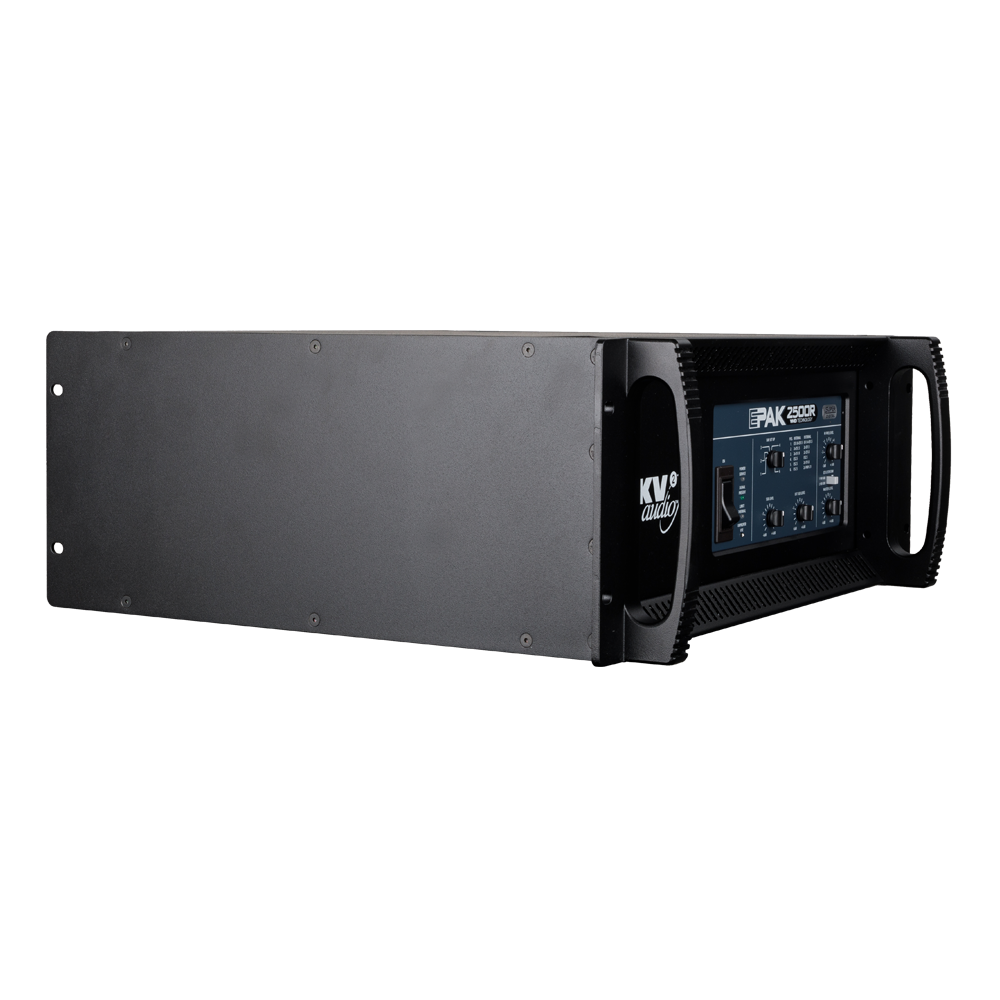

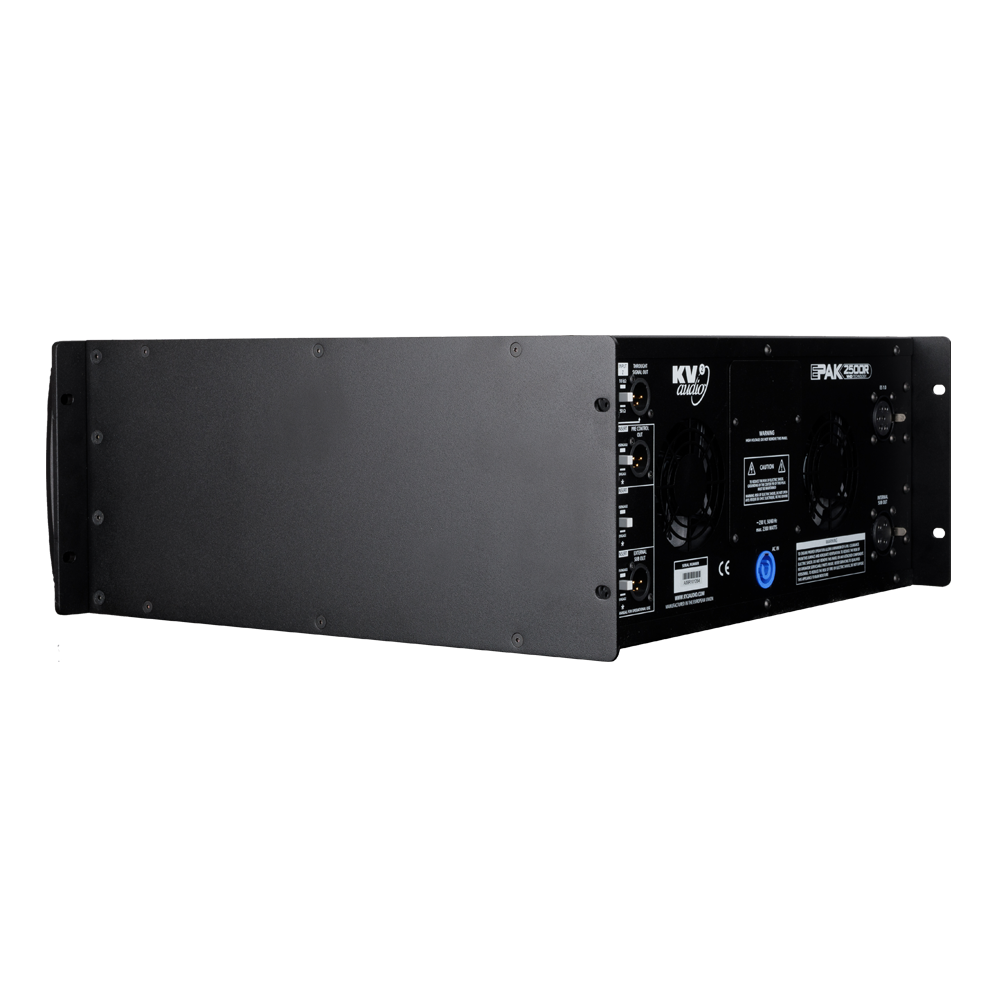

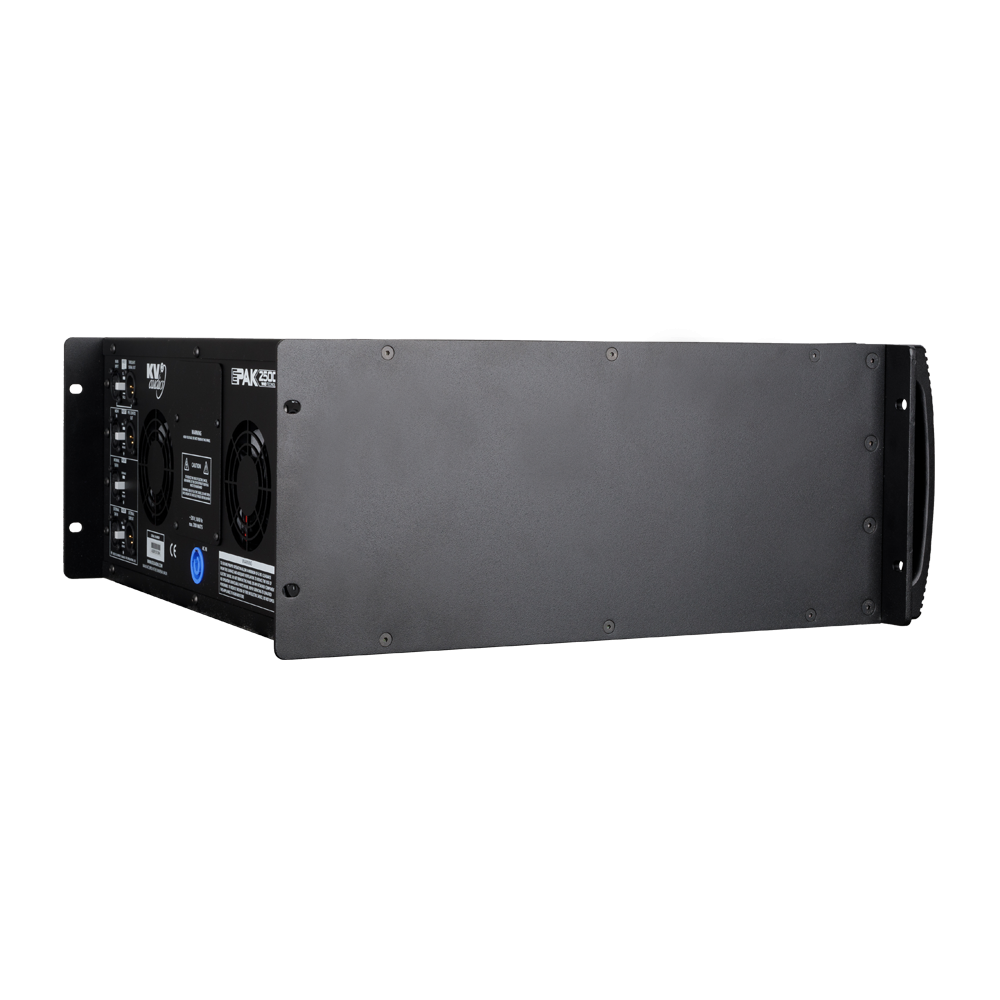

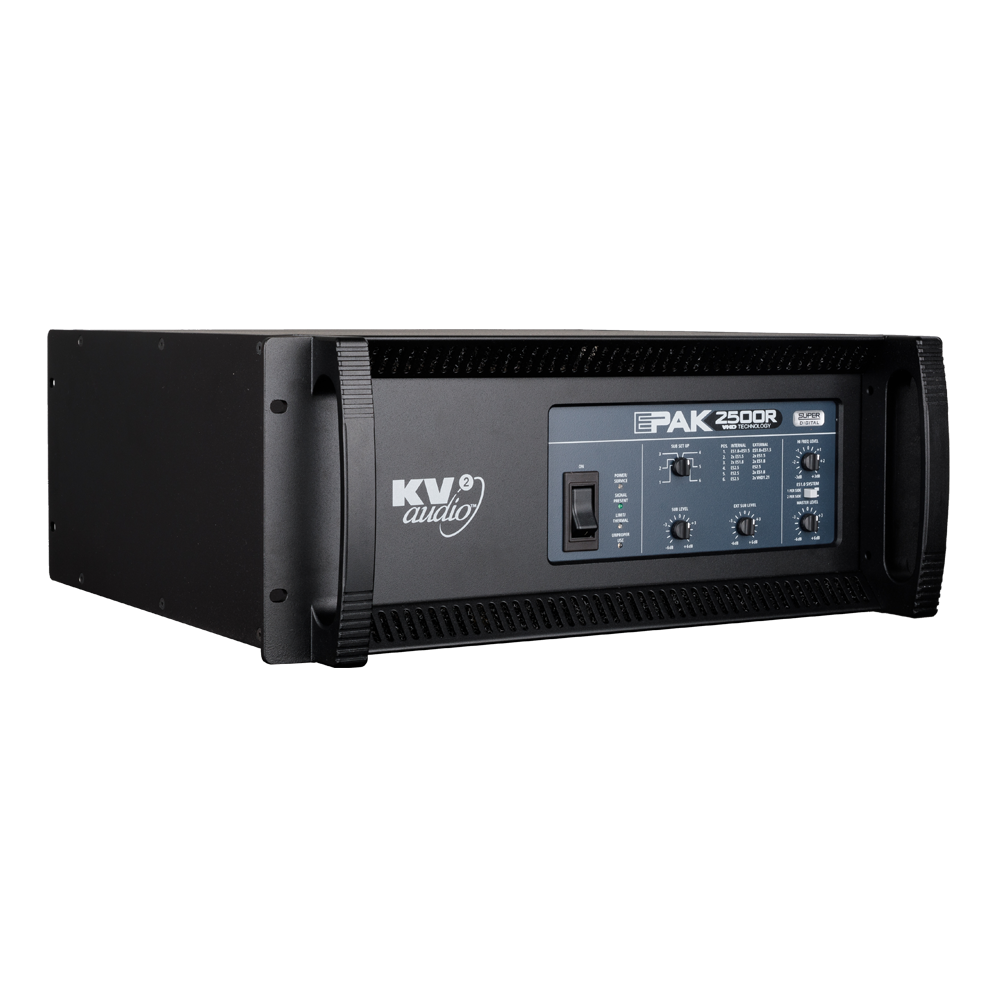

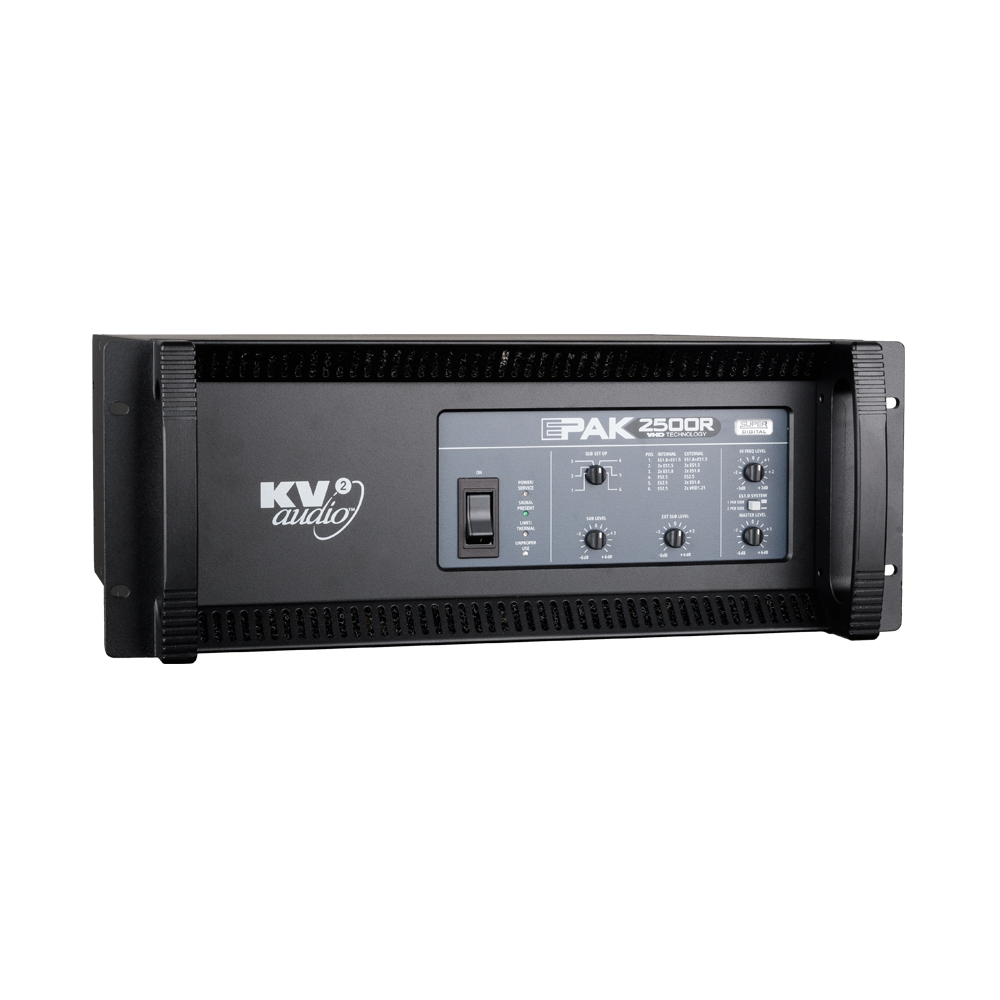

EPAK2500R - The Rack Mounted ES Solution

Brand: KV2 Audio

Model: EPAK2500R

Type: Four-way, active control and amplification unit

Description:

Rack mount version of our popular EPAK2500 four-way, active control and amplification unit specifically designed for the ES Series modular loudspeaker system. Two shock mounted fans move air across the heatsinks which seal and protect the electronic components. This minimizes maintenance cycles and improves the components lifespan and reliability. Both the EPAK2500 and EPAK2500R utilize KV2’s industry leading 20MHz sampling for on board time alignment and phase correction of all components in the ES system.

Features:

• 4-way modular, rack mount 2500W Control and Amplification System for use specifically with ES Series modules
• High Frequency, 100W, Class AB, push-pull, low intermodulation amplifier with transformer balanced outputs
• Mid Frequency, 200W, Class AB, push-pull, low intermodulation amplifier with transformer balanced outputs
• Mid Bass, 600W, high efficiency, current enhancing switching amplifier Subwoofer, 1600W, high efficiency, current enhancing switching amplifier
• Complete, on board speaker management system including equalization, time alignment, crossover filters, amplifier overdrive protection, system set-up and output level controls
• 20MHz sampling, digital delay alignment system setting new standards for audio performance and dramatically increasing phase response precision
• AC soft start circuitry with ON/OFF AC breaker switch provides thorough power protection Setup provides selection and control of different subwoofer combinations
• External Subwoofer output with independent internal and external Level control +/- 6dB
• High Frequency control +/- 3dB for precise adjustment
• Comprehensive front-to-back cooling system features chassis sealed PCB's for improved reliability

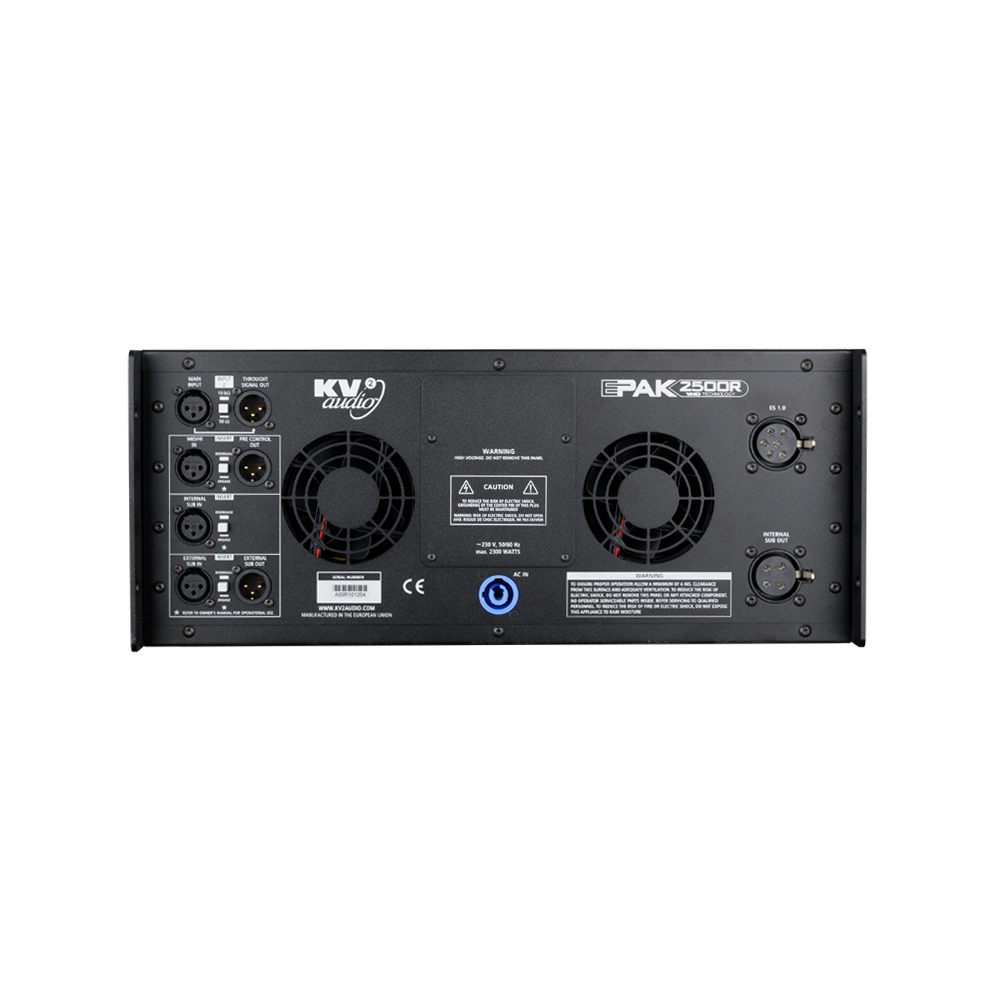

• Line Driver ready – rear mounted Input impedance selector provides selection of optimal input impedance when used with a KV2‘s LD4 Line Driver
• Individual signal inserts for Mid/High, Internal Subwoofer, and External Subwoofer signal paths providing flexibility for insertion of signal processing or feeding from auxiliary sources as required
• Includes cable kit with all speaker cables for a single stack ES system

Technical characteristics:

High Frequency Amplifier Specification:

Type: Class AB Push-Pull low inter-modulation Mosfet design with transformer balanced output
Rated Continuous Power: 100W
Distortion: <0.05%
Operating Bandwidth: 2.5kHz to 28kHz

Mid Frequency Amplifier Specification:

Type Class: AB Push-Pull low inter-modulation Mosfet design with transformer balanced output
Rated Continuous Power: 200W
Distortion: <0.05%
Operating Bandwidth: 500Hz to 2.5kHz

Mid Bass Frequency Amplifier Specification:

Type: High efficiency, Low frequency, Current-enhancing switch mode
Rated Continuous Power: 600W
Distortion: <0.05%
Operating Bandwidth: 130Hz to 500Hz

Low Frequency Amplifier Specification:

Type: High efficiency, Low frequency, Current-enhancing switch mode
Rated Continuous Power: 1600W
Distortion: <0.05%
Operating Bandwidth: 20Hz to 130Hz

Signal Input:

Input Sensitivity: 1.0V RMS
Input Impedance: 20kΩ (balanced) or 50Ω "Line Driver ready"

Speaker Output:

Speaker Output AP6 (Mid-Hi), AP4 (Sub)

Power Requirements:

Power Connector Neutrik PowerCon®
Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage 20A 115V | 10A 230V | 10A 250V

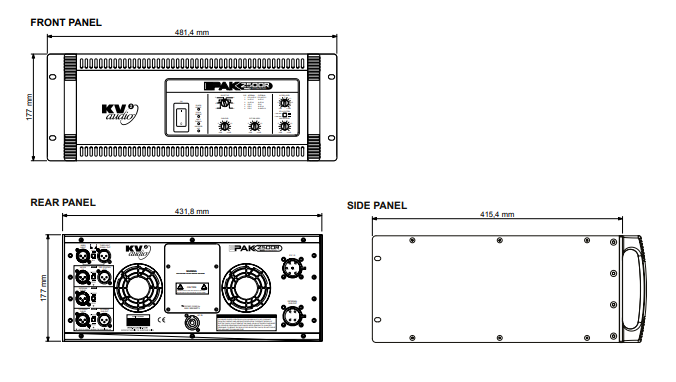

Physical Dimensions:

Height 177 mm (6.96")
Width 481.4 mm (18.95")
Depth 415.4 mm (16.35")
Weight 30 kg (66lbs)

Product code (Options):

Technical Data Sheet can be viewed here

Official Product page can be viewed here

Application: Specifically designed as the amplification and control elements for the ES loudspeaker systems in a full rack mount module

 ● Portable PA ● Fixed installations  ● Bars and Nightclubs ● Houses of Worship
