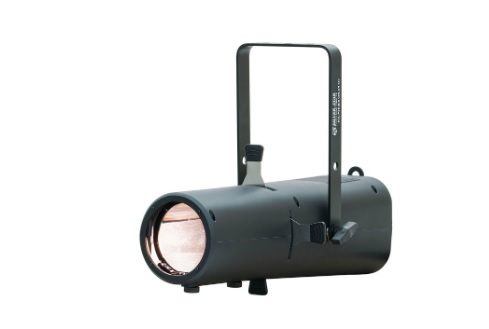

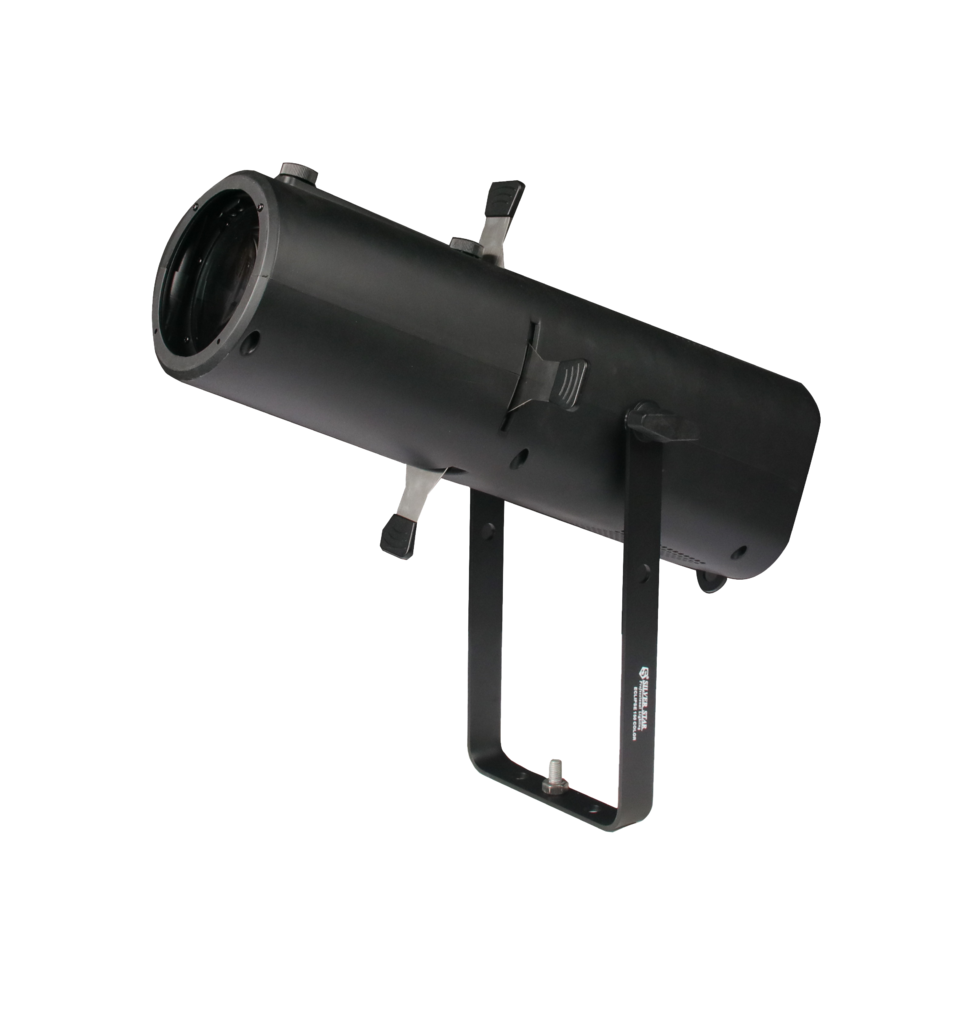

ECLIPSE MID COLOR 180 SS5141XAL

Model: ECLIPSE MID COLOR 180 SS5141XAL

Type: Profile spotlight with spot

Description: ECLIPSE MID COLOR 180 is a compact and lightweight profile spotlight with 5 colors and LED 150 W RGBAL light source with uniform color mixing, clear beam profiling and good gobo focus. Equipped with CCS3.0 intelligent color management system to ensure color consistency, proper dimming and a rich palette of built-in 48 popular filter emulators. There are 14 CCT presets from 1800 to 10000K with high CRI>93Ra for color temperature selection. Beam angle range 25°-50°, compact, monolithic and light design, high luminous flux, moderate price - these criteria make this device an excellent effect for lighting close areas in small and medium-sized theaters, multi-purpose halls, churches, conference halls , TV studios, etc.

Technical characteristics:

Power supply / power consumption: AC100-240V 50/60Hz / 190w (measured value)

Light source: 150W RGBAL LED element x 1pc

LED dominant wavelength: RED 638 nm, GREEN 517 nm, BLUE 447 nm, AMBER 595 nm, LIME 546 nm

Angle: Manual 25-50°

Dimmer: 0-100% (16-bit)

Strobe: 0-25 sec

Color Temperature: 1800K to 10000K 14 steps Ra93 to Ra97

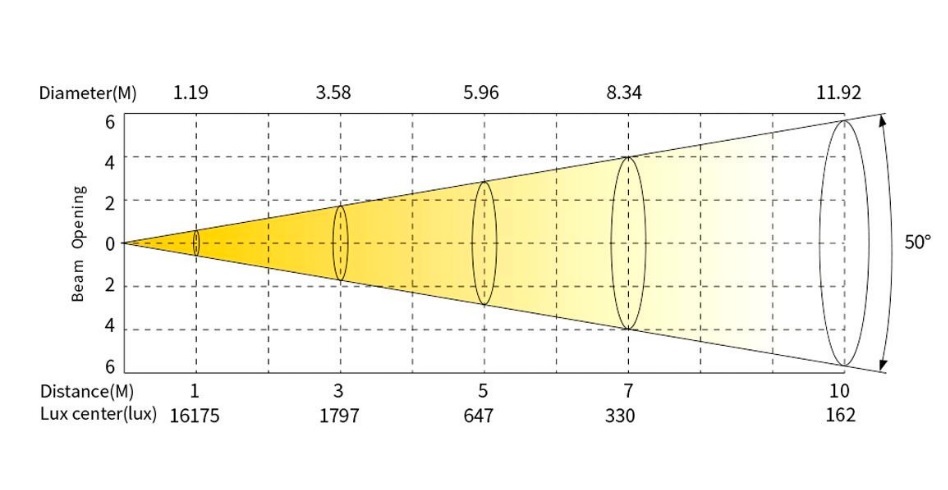

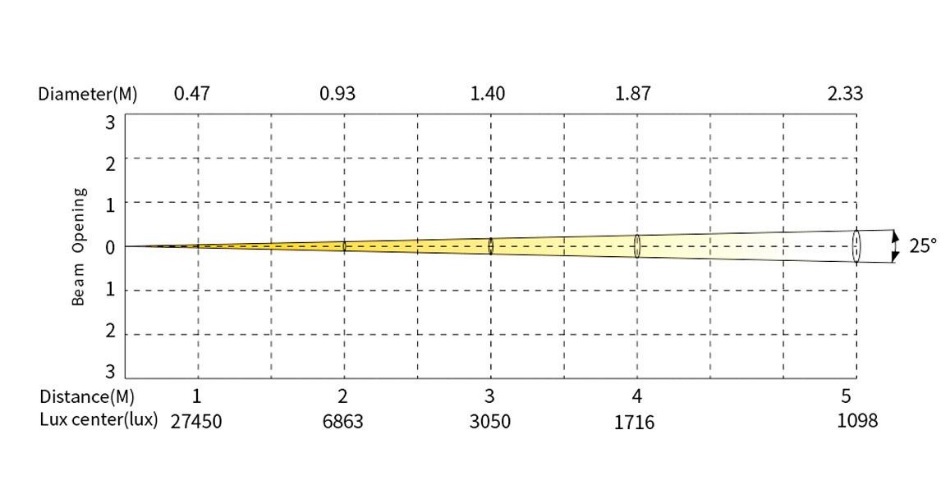

Lighting: see diagrams

Control: DMX 512/RDM

Custom control options: BASIC/SSP/TOUR/TR16/HSIC/CMY

DMX channels for exercise: 6/7/8/11/17

Connection: Power: Powercon TRUE1 input/output / Signal: XLR5pin input/output

Body: aluminum body with plastic lining

Body color: black

Degree of protection: IP20

Operating temperature: 0~45 degrees/forced convection

Certificates: CE, cETL

Gobo size: Outer diameter 60mm, Inner diameter: 55mm

Dimensions: 524 x 224 x 172 mm

Weight: 5.6 kg

Application: small and medium-sized theaters, multipurpose halls, churches, conference halls, TV studios, etc.
