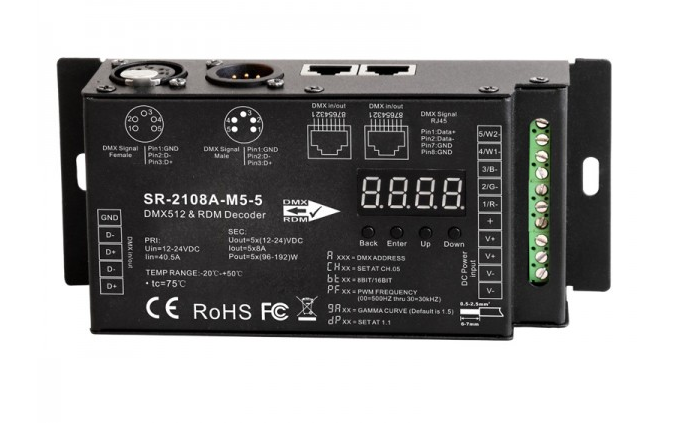

DMX Decoder SR2108B - M5-5(12-24DC) 5CH/8A

Brand: OAM

Model: SR2108B - M5-5 (12-24DC) 5CH / 8A

Type: DMX § RDM decoder for RGBW tape

Description: The DMX decoder SR-2108A-M5-5 has full support for the latest DMX512, DMX512 (1990), DMX512-A and RDMV1.0 (E1.20 - 2006 ESTA Standard) protocols. It is designed for 5 channels with 8A of DC output channel output, also available for 12VDC and 24VDC. DMX input and output ports are available, including XLR, RJ45 and screw DMX. The RDM bidirectional communication function allows the main DMX512 console to detect and display decoder information and set a DMX address. Various functions can be set via a digital display and buttons such as DMX address, amount of output channel, PWM output resolution (8 bits or 16 bits), PWM output frequency, value of the GAMMA beam curve and DMX decoding mode. There are a total of 5 PWM output channels with a common anode and the number of DMX channels can be set from 1CH to 5CH. The DMX address can be set and displayed via a digital digital display. High frequency 16-bit and low frequency 8-bit PWM output resolution are available and switchable and the default setting is 16 bits. Ten levels of PWM output frequency are optional from 500Hz-30kHz, the default setting is 1kHz. The value of the gamma-ray dimming curve can be adjusted from 0.1-9.9. As logarithmic dimming and linear dimming are more choice. DMX decoding modes are optional and allow adjustment of the brightness of each output channel, basic brightness of all output channels and strobe effects, and the default mode is dp1.1.

• Key Features:
• Industrial level DMX512 & RDM decoder
• Comply with the latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA
  Standard) standard protocols, compatible with DMX512 master consoles from other
  international incorporations
• Total 5 PWM output channels, common anode. DMX channel quantity from 1CH to 5CH
  settable
• 8A 5 channels constant voltage output
• Abundant DMX signal input and output port design: XLR 5pin, XLR 3pin, RJ45, Screw DMX
• RDM bi-directional communication function
• Enable DMX512 master console to detect decoder, display decoder information and set DMX
  address
• Visible numeric digital display operation interface with a variety of features selection
• PWM output high frequency 16bit and low frequency 8bit switchable, default setting is 16bit
• 10 levels of PWM output frequency optional from 500Hz-30kHz, default setting is 1kHz
• Decoding modes optional, enable to adjust brightness of each channel, master brightness of all
  channels and strobe effects, default mode is dp1.1
• Gamma ray curves value adjustable from 0.1-9.9, logarithmic dimming and linear dimming
  optional

Technical characteristics:

Input voltage: 12-24VDC

Output current: 5x8A
Output power: 5x (96-192) W

Output signal: Constant voltage

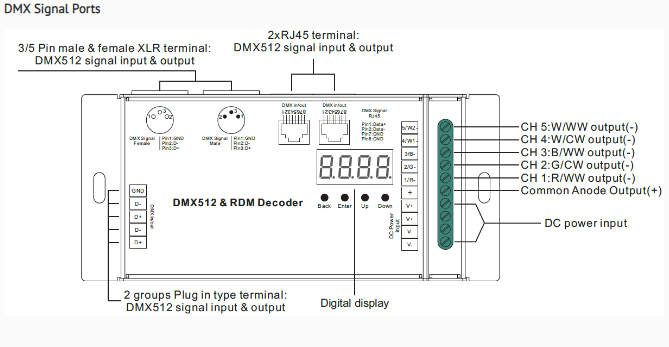

DMX terminals:

• 3/5 Pin male & female XLR terminal:DMX512 signal input & output
• 2xRJ45 terminal:DMX512 signal input & output
• 2 groups Plug in type terminal:DMX512 signal input & output

Dimensions: 164x73x38mm

Weight:0.150gr

Safety & Warnings:

DO NOT install with power applied to device.
DO NOT expose the device to moisture.

Operation manual: Buttons-Introduction, DNX setting, DMX channel number setting, PWM output resolution Bit setting, PWM output frequency setting,setting the gamma value of the output dimming curve, setting the DMX decoding mode can be downloaded from HERE!

Application: Entertainment industry (discos, bars, casinos, shopping malls). Light interior and exterior design of buildings, bridges, cultural monuments and more.
