Brand: Chova
Model: ChovAIMPACT 5

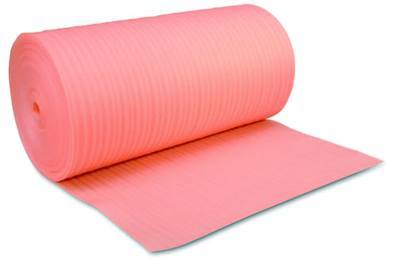

Type: soundproof polyethylene pad against impact and airborne noise
Description:
High quality polyethylene sheet produced by extrusion process, direct and physical expansion of closed and watertight cells that provide the exact consistency Good behavior to aging under continuous load.
Installation:
under a floating mortar
1.The surface must be clean and uneven. If the material is drilled, this will reduce its acoustic properties.
2. Unfold the envelope and apply ChovAMPACT 5. Place the next piece of material overlapping approximately 10 cm.
3. Place the ELASTOBAN 50 patches to overlap the joints and ensure tightening.
4. Place perimeter, bearing columns, barriers and all other elements susceptible to creating an acoustic bridge.
5. Make a 5 cm cement mortar.
The quality of this system also depends on the type of mortar that is selected.
under parquet:
1. Remove ChovAIMPACT
2. Place the next section of the material as a continuous process.
3. Place the parquet on the polyethylene sheet so that it does not touch the walls.
Technical Characteristics:
Thickness (mm): 5mm
Density (kg / m³): 20 kg / m³
Compression resistance (kPa): 7.81 Pa
Thermal conductivity (W / m · K): 0,043
Water absorption (kg / m2): 0.0057
Sound insulation (db) Lw: 20 (db)
Sound insulation (db) Ln: 58 (db)
Dynamic hardness (MN / m3): 32
Dimensions (m): 100 x 1.5m
Quadrate area: 150m²
Application: Soundproofing against impact noise at home, hotels, schools, offices and more. Apply under a floating screed or directly under parquet.
Impact Sound Transmission IIC(dB) | 20 db for floating floors |
---|---|
impact sound attenuation index ΔLw (dB) | 20 (dB) |
index Ln | 58 dB |
Diathermancy | 0.043W/mK |
Density | 20кг/м³ |
Size | 1x1.5 |
Size of Roll | 100 x1.5м |
Application | floating floor, Floor insulation, Thermal insulation, internal installation |
