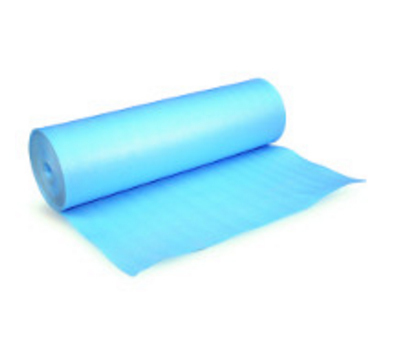

ChovAIMPACT 10 HIGH RESISTANCE

Brand: ChovA

Model: ChovAIMPACT 10 HIGH RESISTANCE

Type: Polyethylene membrane against impact noise

Note: The price is for one m² !!!

Description:

High quality polyethylene membrane with closed waterproof cells. Very good compression metrics. (& Gt; 21 kPa).

Excellent aging behavior of the material with minimal material volume reduction under long load (<10%).

Technical specifications:

Thickness (mm): 10mm

Density (kg / m3): 35 kg / m3

Thermal conductivity (W / mK): 0.041 W / mK

Water absorption (kg / m2): 0.005 kg / m2

Operating Temperature (ºC): (-80ºC / + 80ºC)

Sound insulation (dB): Lw = 20 dB According to test 5.013.187

Volume reduction at uninterrupted load (200 Kg / m²): <10%

Compressive strength (kPa): 25 kPa

Dynamic hardness (MN / m³): 7.9 MN / m³

Roll dimensions (m): 42 x 1.2 m

M² / Roll: 50m²

Installation:

        1. The material should be clean and free from irregularities.

If the material is perforated, its acoustic performance will decrease.

      2. Expand ChovAIMPACT 10 HIGH-STRENGTH

      3.Enlarge the material by leaving an additional 10cm.

      4.Place the ChovASEAL adhesive tape into the sealing contact areas.

      5. Place the ChovAIMPACT strip on columns, outside walls, terraces and around

Any other element with the potential to create an acoustic bridge.

      6. Put a screed about 5 cm. On the designated insulation space.

 Application:

- Protection against impact noise in buildings (houses, hotels, schools, offices, etc.).

- Protection against impact noise in rooms requiring high mechanical resistance

(Floating foundations for machines, car parks, etc.)
