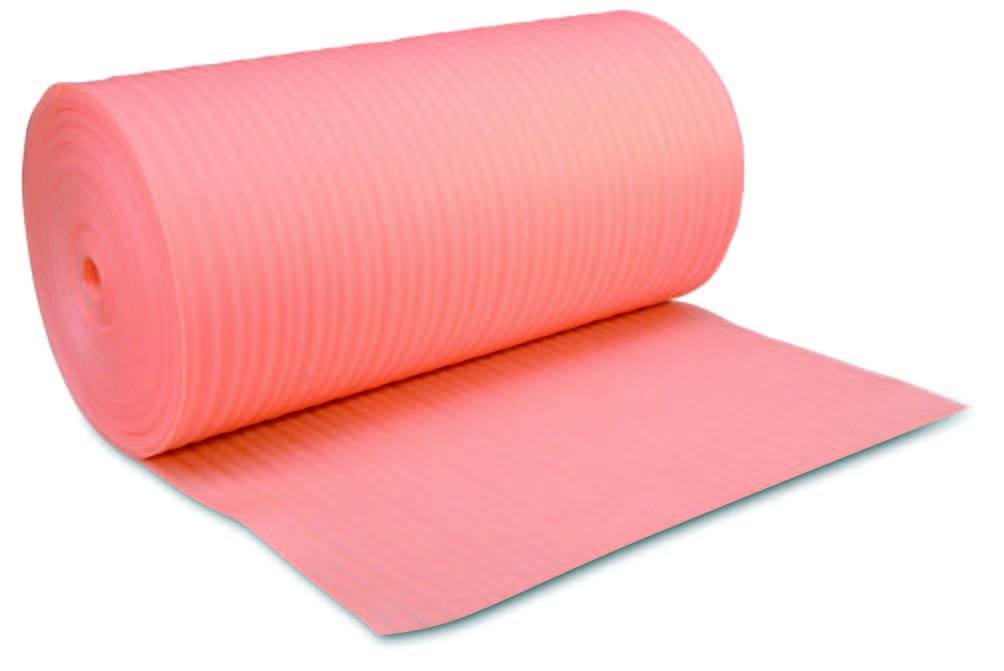

Brand:ChovA
Model: Impact 10
Type: POLYETHYLENE MEMBRANE
Note: The price is for a linear meter !!!
Description:
Elastic polystyrene panel with high sound insulation effect, improved thermal conductivity and high compressive strength. High quality polyethylene sheet produced by direct compression. Good load indicators.
Technical specifications:
Thickness (mm): 10mm
Density ((kg / m3): 30 (kg / m3
Thermal conductivity (W / mK): 0.043 W / mK
Water absorption (kg / m2): 0.0195 kg / m2
Operating Temperature (ºC): (-80ºC / + 80ºC)
Sound insulation (dB): Lw = 20 dB According to UNE-EN-ISO 717
Compression resistance (kPa): 12.64 kPa
Dimensions (m): 42 x 1.2 m
M² / Roll: 50m²
STORAGE: The material must be kept from weather, sun light and stored upright

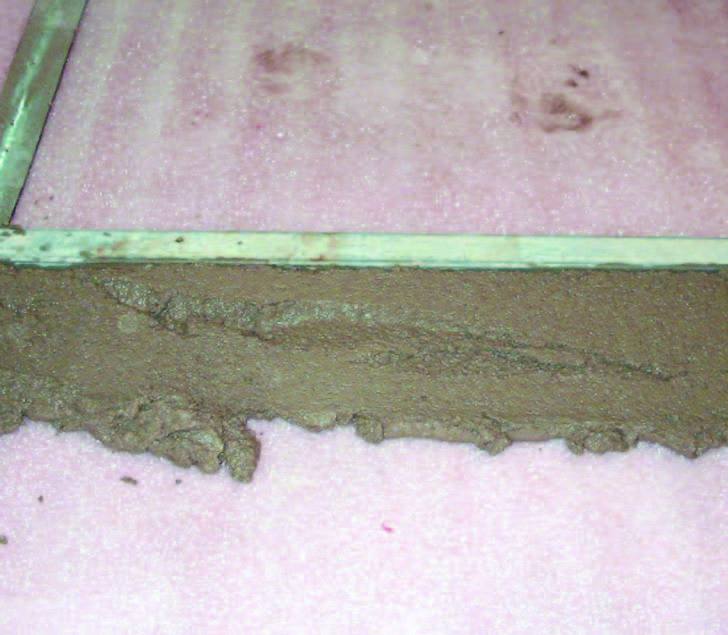

Installation:
Floating floor
1 The surface must be clean and free from irregularities.
2 Use in places in contact with walls and columns to avoid a rigid connection between the wall and the floating slab.
3 Cover the entire surface of the installation with ChovAFOAM IMPACT 20 panels.
4 Before completing the floor, the panels are covered with a separating layer (polyethylene).
Recommended for ...
- protection against impact noise
- thermal insulation
Under plaster
1 The surface must be clean and free from irregularities.
2 Develop ChovAIMPACT
3 Unscrew the material by leaving an additional 10 cm.
4 Place the ChovASEAL adhesive tape on the sealing contact seams.
5 Place ChovAIMPACT tape on columns, outer walls, terraces and around
Any other element with the potential to create an acoustic bridge.
Under rigid flooring
1. Develop ChovAIMPACT
2. Prepare the next material
3. Lay the parquet on the ChovAIMPACT coating
It is important to avoid direct contact with walls.
Application:
Sound insulation in buildings (houses, hotels, schools, offices, ...).
Floating floor, under plaster, parquet or laminate.
Material | Полиетилен |
---|---|
Color | Pink |
impact sound attenuation index ΔLw (dB) | 20 (dB) |
Coefficient of sound insulation | 20dB |
Resistance to compression | 12,64 kPa |
Density | 30 kg/m3 |
Diathermancy | 0,043 W / m ° K |
Working temperature | (-80º / + 80º) |
Self-adhesive layer | No |
Size of Roll | 42 m x 1,20 m |
Thick | 10мм |
Water absorption | 0,0195 кг / м2 |
Application | Construction, floating floor, Floor insulation |
