Box corner to join square trusses (ref. TQN290) For 29 x 29 cm truss

Brand: Guil

Model: DDO/TQN290

Type: Corner box for connecting square aluminum trusses

Note: The price includes the connectors for the hex corners

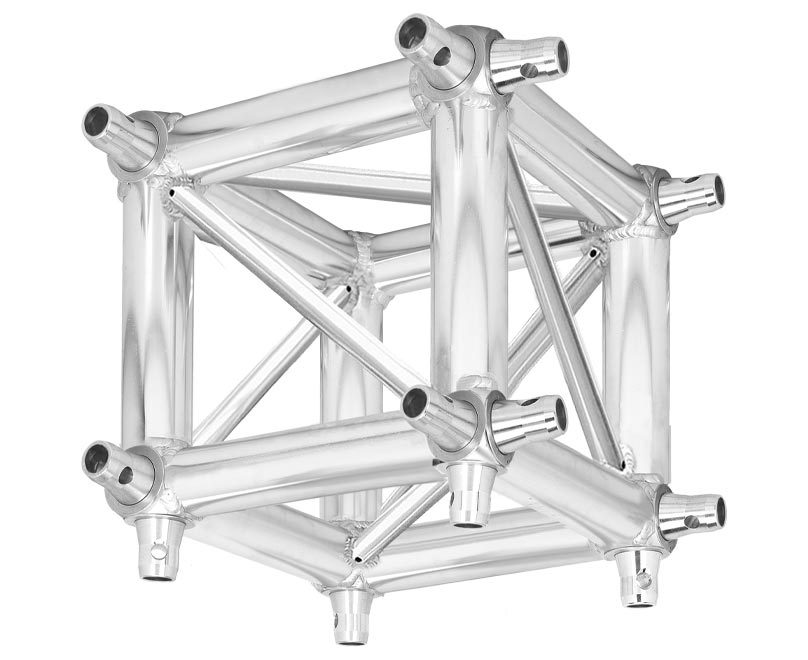

Description: 29 x 29 cm hexagonal box for joining a square truss made of aluminum (alloy: EN-AW 6082 T6) and TIG welded for maximum strength.

This useful and versatile element offers multiple configurations with a 290 x 290 mm square truss without the need for additional elements.

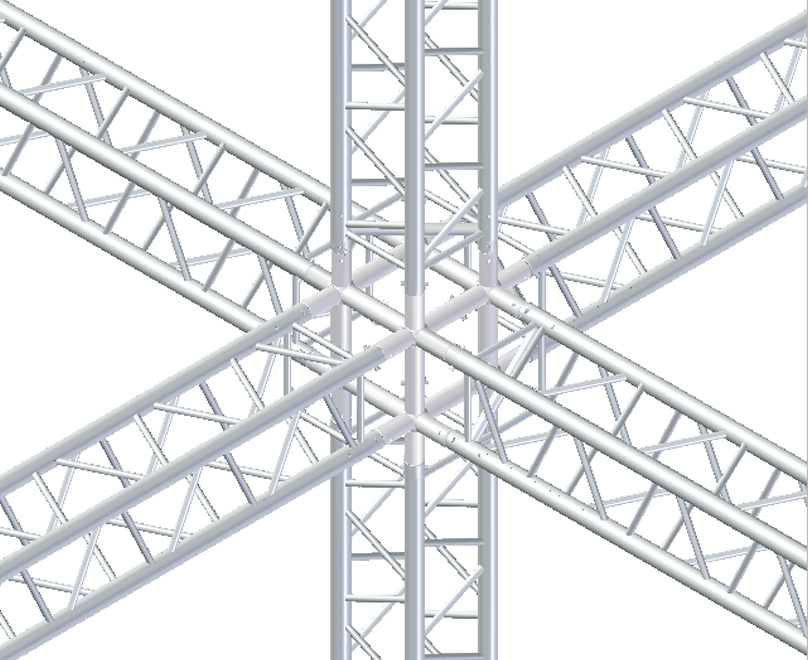

The DDO/TQN290 six-sided box corner allows multiple configurations to be created using as many sides of the cube (2, 3, 4, 5 or 6) as needed. By simply screwing more connectors (ref. UTR-07) ​​to the selected additional side, more usable sides can be added as required by your setup.

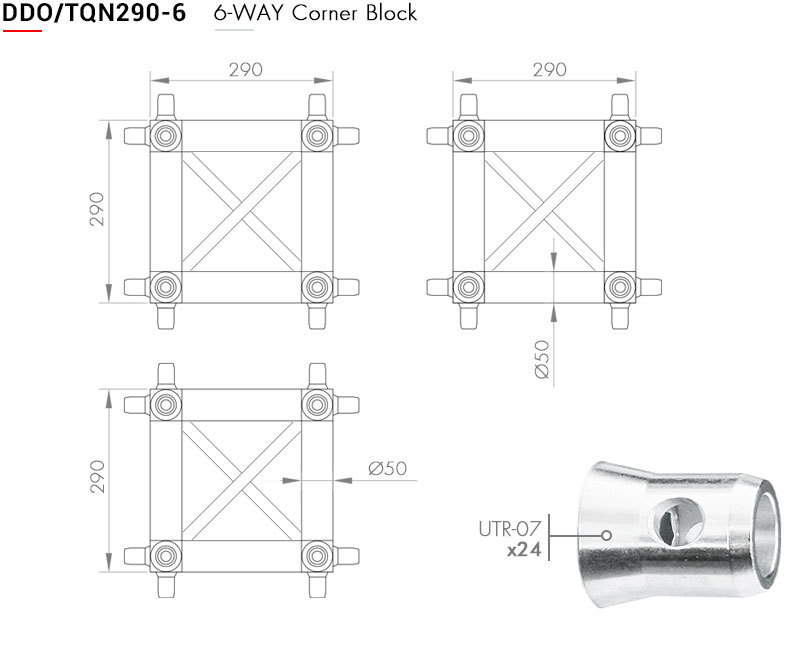

Technical characteristics:

Dimensions: 29 x 29 x 29 cm
Main pipes: Ø 50 x 2.5 mm
Material: Aluminum
Alloy: EN-AW 6082 T6
Net weight: 7.25 kg (without connectors)

Application: Multi-functional square aluminum truss connection box corner.
