BLX14E/PG30 - Shure

Brand: Shure

Model: BLX14E / PG30

Type: Wireless microphone system with head

Description:

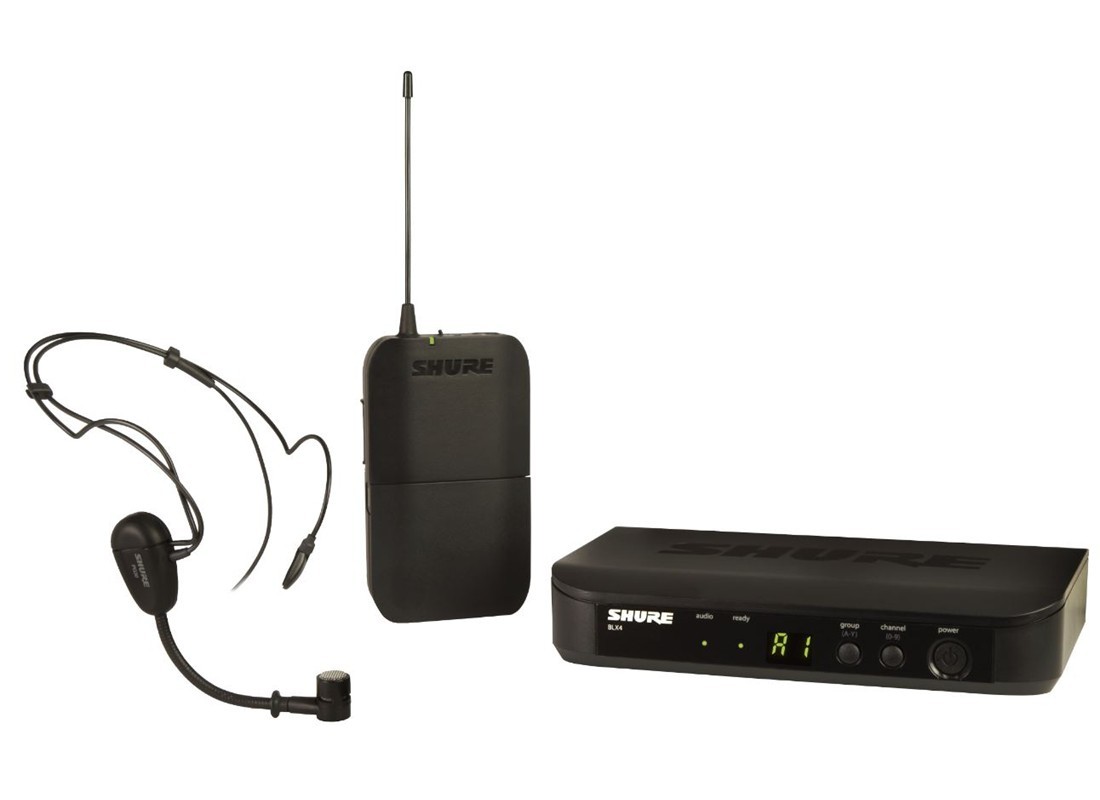

Includes: PG30 "headset" condenser microphone head cardioid, BLX1 bodipak transmitter, BLX4 single receiver, power supply, 2 x AA batteries.

PG30 Headset microphone for use with PG and PGX wireless systems.

BLX1 Up to 14 hours of continuous operation with two AA batteries. 100 m transmission range.

BLX4 Wireless Receiver with dinichen channel. (Microprocessor-controlled internal antenna diversity)

Specifications:

Compatible system bandwidth (up to) 12

Selectable frequencies: 150

Automatic settings: QuickScan: Located group with the compatible frequencies and sets best frequency.

Audio Reference Companding: No

Receiver Network Ability: No

Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable

Antenna Options: No

Display transmitter: LED

Display of the receiver: BLX4, BLX88: LED, BLX4R: high-resolution LCD display

Battery life: 2AA, to 14h

Specifications:

Working range: 91 meters

Available Frequency: Between 524-865 MHz

Sound range: 50-15,000 Hz (depending on the type of microphone)

Output connector: XLR and 1/4 "(6.3 mm) unbalanced

Maximum output level: -27 DBV (XLR, mic level), -13 DBV (1/4 ")

Battery life: 14 hours

Dynamic range: 100 dB A-weighted

Distortion: 0.5% THD typical (Ref. + / - 38 kHz deviation, 1 kHz tone)

Operating temperature: -18 ° C (0 ° F) - 50 ° C (122 ° F)

Power requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries

BLX88: 12-18 V DC 320 mA, powered by an external power source

BLX88 DUAL receiver

Output impedance:

- XLR connector: 200 Ω

- 6.35 mm (1/4 ") connector: 50 Ω

Audio Output Level Ref. ± 33 kHz deviation with 1 kHz tone:

- XLR connector -27 DBV (a 100 kΩ load)

- 6.35 mm (1/4 ") connector -13 DBV (a 100 kΩ load)

RF Sensitivity: 105 dBm for 12 dB SINAD

Dimensions: 40 mm X 388 mm X 116 mm

Weight: BLX88 - 429 g

Housing: ABS

Power supply: 12-15 V DC @ 320 mA, powered by an external power supply (tip positive)

BLX2 transmitter

Level inputs:

- Gain 0dB: -20 dBV max.
- Gain -10dB: -10 dBV max.

Correction of sound: 10 dB

An RF transmitter output: 10 mW

Dimensions: 224 mm X 53 mm

Weight: 218 grams (without batteries)

Housing: ABS

Power requirements: 2 LR6 AA batteries, 1,5 V alkaline

Battery life: 14 hours (alkaline)

BLX1 BODYPACK transmitter

Level inputs:

- Gain max: -16 dBV max.
- Gain min (0 dB): +10 dBV max.

Correction of sound: 26 dB

Input impedance: 1 MΩ

An RF transmitter output: 10 mW

Dimensions 110 mm x 64 mm x 21 mm

Weight: 75 g, without batteries

Housing: ABS

Power requirements: 2 LR6 AA batteries, 1,5 V alkaline
Battery life: 14 hours (alkaline)

Application: The system is suitable for aerobics instructors, singing dancers, vocalists.
